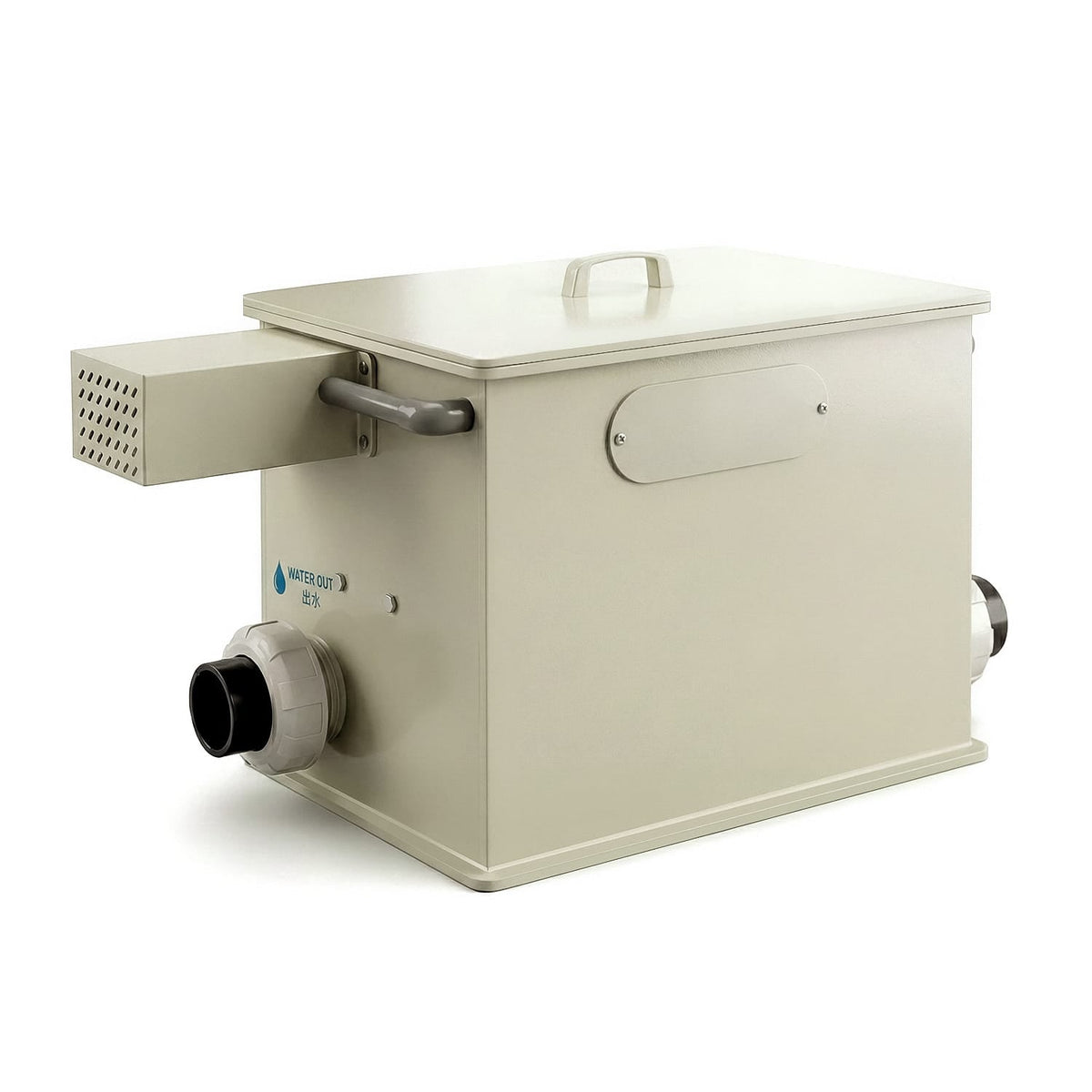

The T10 Automatic Rotary Drum Pond Filter is a high-capacity hobbyist and semi-commercial pond filtration system engineered for koi ponds, aquaculture farms, and freshwater environments up to 2,397 gallons (10 tons). Positioned above the T5 in the T-series lineup, the T10 delivers 2,690 GPH of continuous mechanical micro-filtration and biochemical biological filtration — powered by a robust 90W motor — with fully automatic self-cleaning backwash that removes impurities around the clock without any manual intervention.

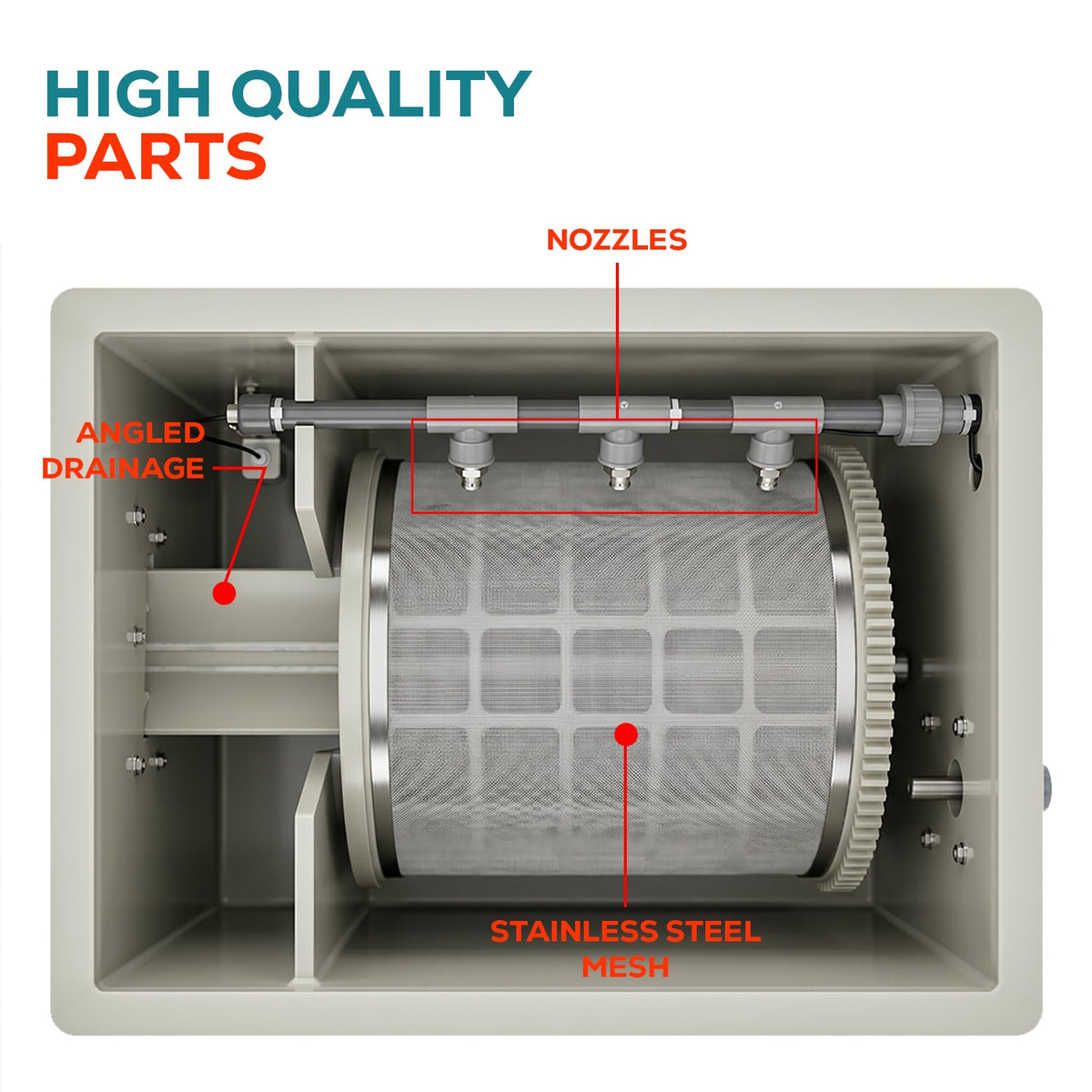

Water enters the 316 food-grade stainless steel rotary drum filter screen axially through dual DN65 (2.5-inch) inlets and flows radially through the mesh, capturing all suspended particles ≥50 μm — including fish waste, fine sediment, floating algae, and organic debris. When debris accumulates to threshold level, the intelligent automatic water-level control system triggers a timed high-pressure backwash cycle: the drum rotates as pressurized nozzles continuously flush all trapped impurities to the DN40 sewage outlet for direct discharge — 100% hands-free. Once the timed relay cycle completes, the system resets to normal filtration automatically.

Built from food-grade PP material rated for 10+ years of permanent outdoor installation, the T10 withstands continuous sun, rain, heat, and corrosion without performance loss. Its inclined-bottom chamber design prevents all dead zones and guarantees complete sewage drainage with every backwash cycle, while the biochemical filtration stage rapidly cultivates and sustains beneficial nitrifying bacteria for stable, long-term water quality — even in high-stocking-density koi environments.

The integrated buffer pool installation design ensures a sealed fit at the inlet, preventing any bypass of suspended matter into the clean water output — a critical quality feature for serious koi keepers and aquaculture operators.

Key Features:

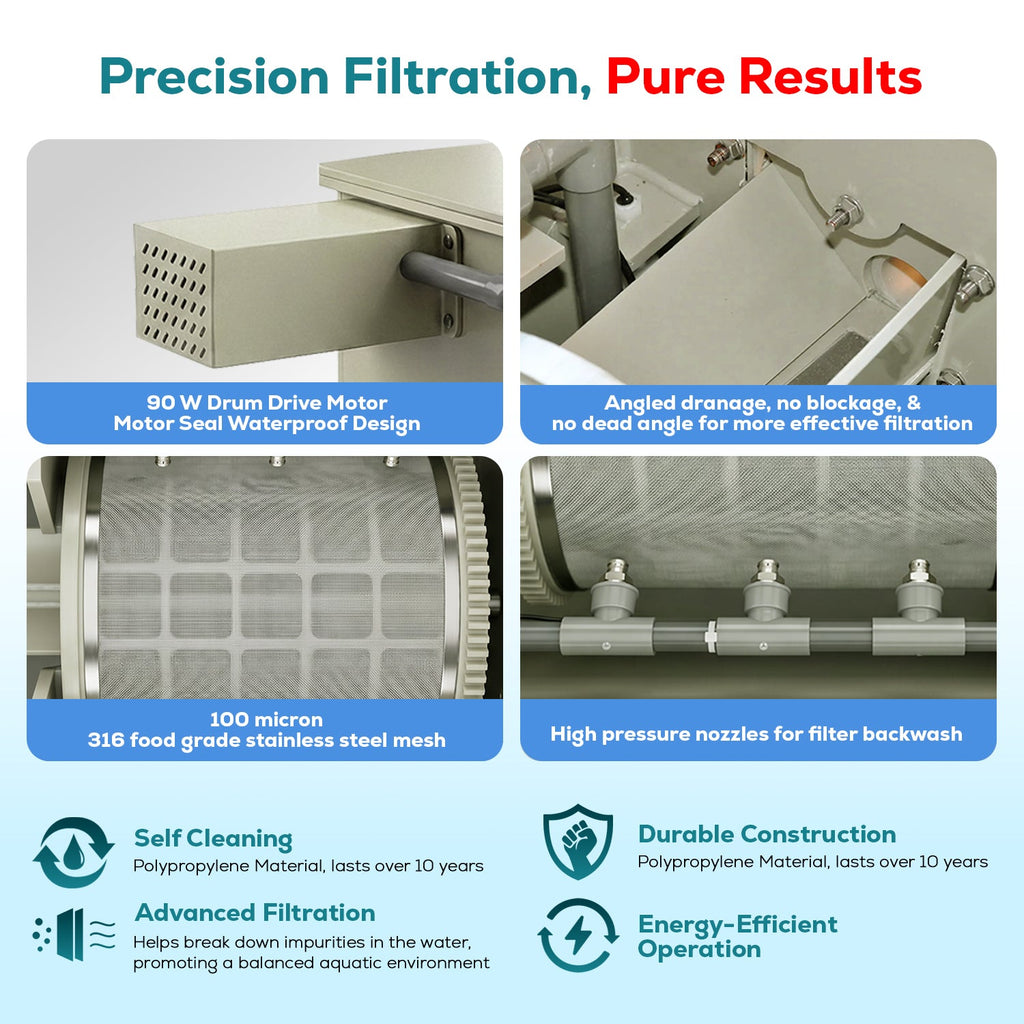

• Automatic self-cleaning rotary drum filter — intelligent water-level triggered backwash
• 316 stainless steel micro-filter screen — intercepts all particles ≥50 μm
• Biochemical filtration stage — rapidly builds and sustains nitrification bacteria colonies
• DN65 (2.5-inch) inlet/outlet — handles high-volume flow at 2,690 GPH
• Inclined-bottom design — zero dead zones, no blockages, complete drainage
• Integrated buffer pool alignment — prevents suspended matter bypass at inlet
• Food-grade PP construction — 10+ year lifespan, UV/corrosion/heat resistant
• 90W motor with turbine inverter pump — powerful, energy-efficient, quiet operation
• Ideal for large koi ponds, semi-commercial aquaculture & freshwater systems

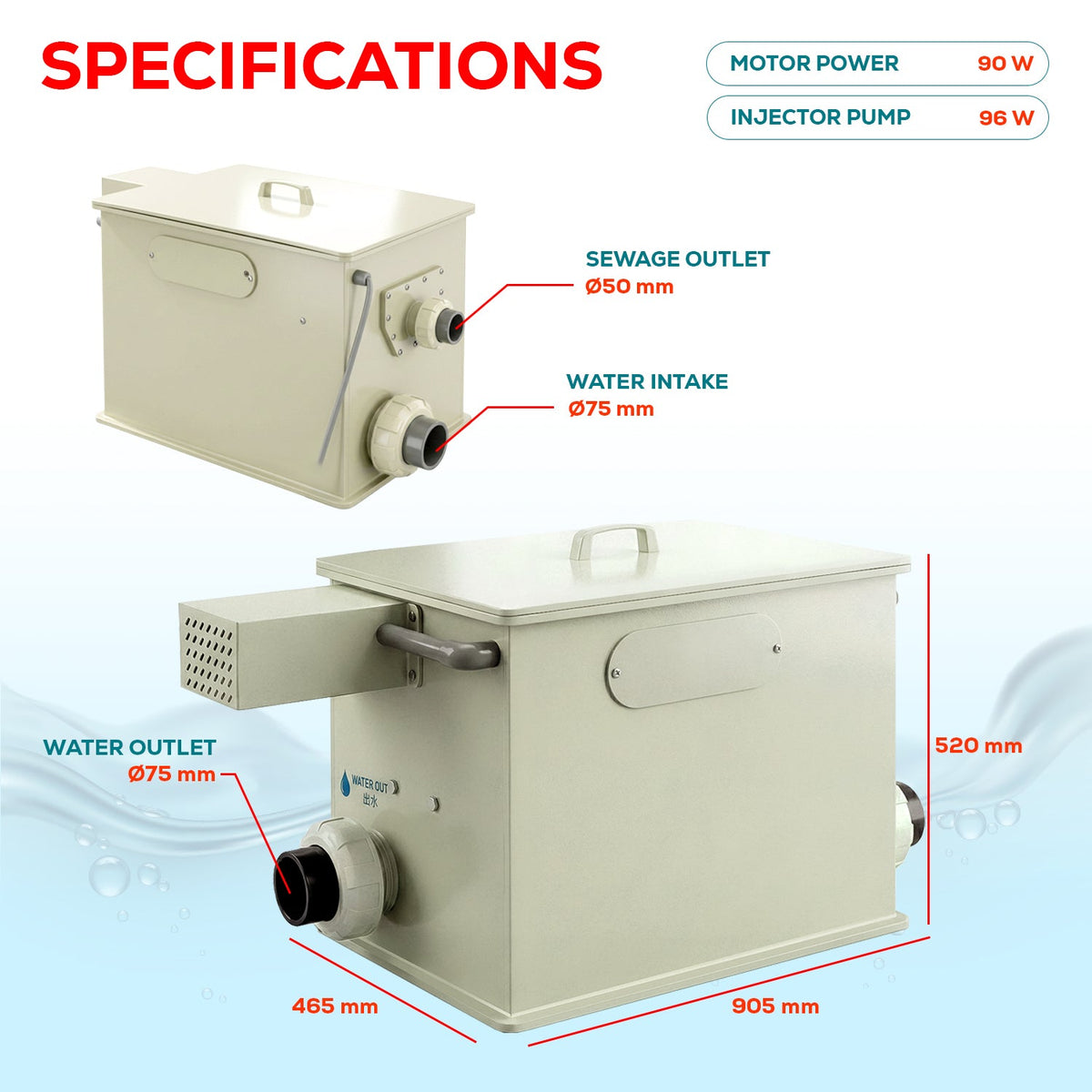

Specifications:
• Pond Capacity: Up to 2,397 Gallons (10 Tons)
• Flow Rate: 2,690 GPH
• Overall Size: 904 × 461 × 518 mm (35.59" × 18.14" × 20.39")
• Water Inlet: DN65 (2.5 inches) | Outlet: DN65 (2.5 inches)
• Sewage Outlet: DN40 (1.5 inches)
• Motor Power: 90W | Pump Power: 80/96W
• Filter Particle Size: ≥50 μm
• Material: Food-grade PP + 316 Stainless Steel Screen
• No UV sterilizer included (UV available in BTS5, BTS-10, BTS30 & BTS50 models)

In the Box:
• 1× T10 (10-Ton) Automatic Rotary Drum Pond Filter Unit

Safety & Maintenance Notes:
• Never run the water pump dry — always ensure water flow before starting
• Stop the pump fully before adjusting any valve settings
• Regularly inspect nozzles for blockage; clean or replace promptly as needed
• Protect all electrical components from water overflow or splash at all times
• Follow pump operation manual guidelines for all daily maintenance
• Never disconnect pump fittings or unions while the pump is running
