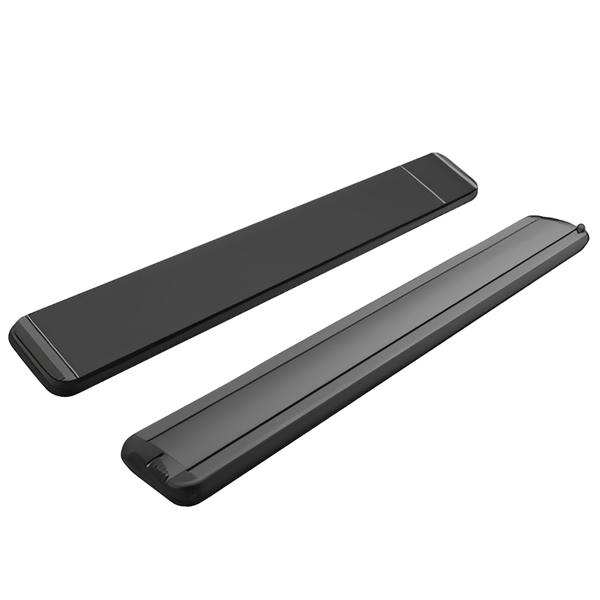

HOT-TOP combines the elegant shapes of a minimalist design with the laws of physics. Developed together with the engineers of the Enzo Ferrari Department of the University of Modena, it optimizes the natural radiation of heat by exploiting the emissivity linked to temperature and that linked to color to rationalize consumption.

The black surface of the reflecting body emits the maximum radiation at each temperature and wavelength. The black surface and the thickness of anodizing have been calculated to maximize emissivity. A cross section with decreasing thickness draws heat from the heating elements to spread it evenly up to the sides. The longitudinal ribs increase the radiating surface intensifying the irradiation and allowing the rays to spread further, expanding the range of action accordingly.

The optimization of the insulation between the radiant and the upper body allows to transmit the highest possible percentage of heat to the people to be heated. The insulation system also includes some technical measures to reduce the effects of thermal bridges. The duration of the product is guaranteed by a careful choice of materials.

The armored heating elements are siliconed to reach IP67 and preserve them from humidity, thus safeguarding their life span and avoiding short circuits. The operating temperature is 340 ° C to maximize the emission of infrared rays remaining below the limits of decay of the anodization.

Key Features

• IP Protection rate IP55
• Dimensions in mm 1410 x 201 x 58
• Weight 7,40 kg
• Power 1800
• Power of supply 220-230 V 50-60 Hz
• Insulating Class I
• Cable
