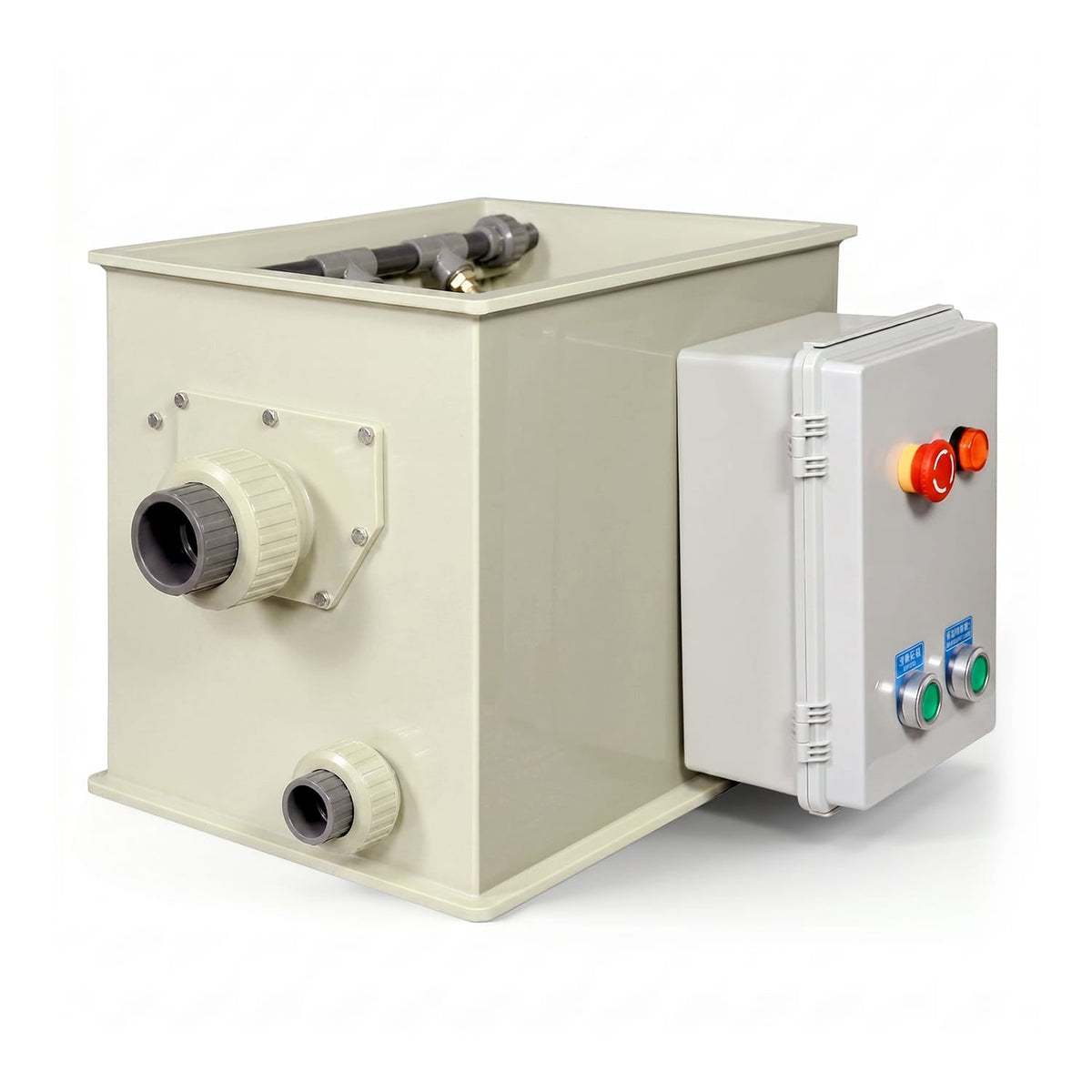

The T5 Automatic Rotary Drum Pond Filter is a mid-range, hobbyist-grade pond filtration system built for koi ponds, small aquaculture farms, and freshwater systems up to 1,320 gallons (5 tons). Sitting one step above the T3 in the product line, the T5 delivers 1,345 GPH of continuous mechanical micro-filtration and biochemical biological filtration — with fully automatic self-cleaning backwash that keeps maintenance effort to an absolute minimum.

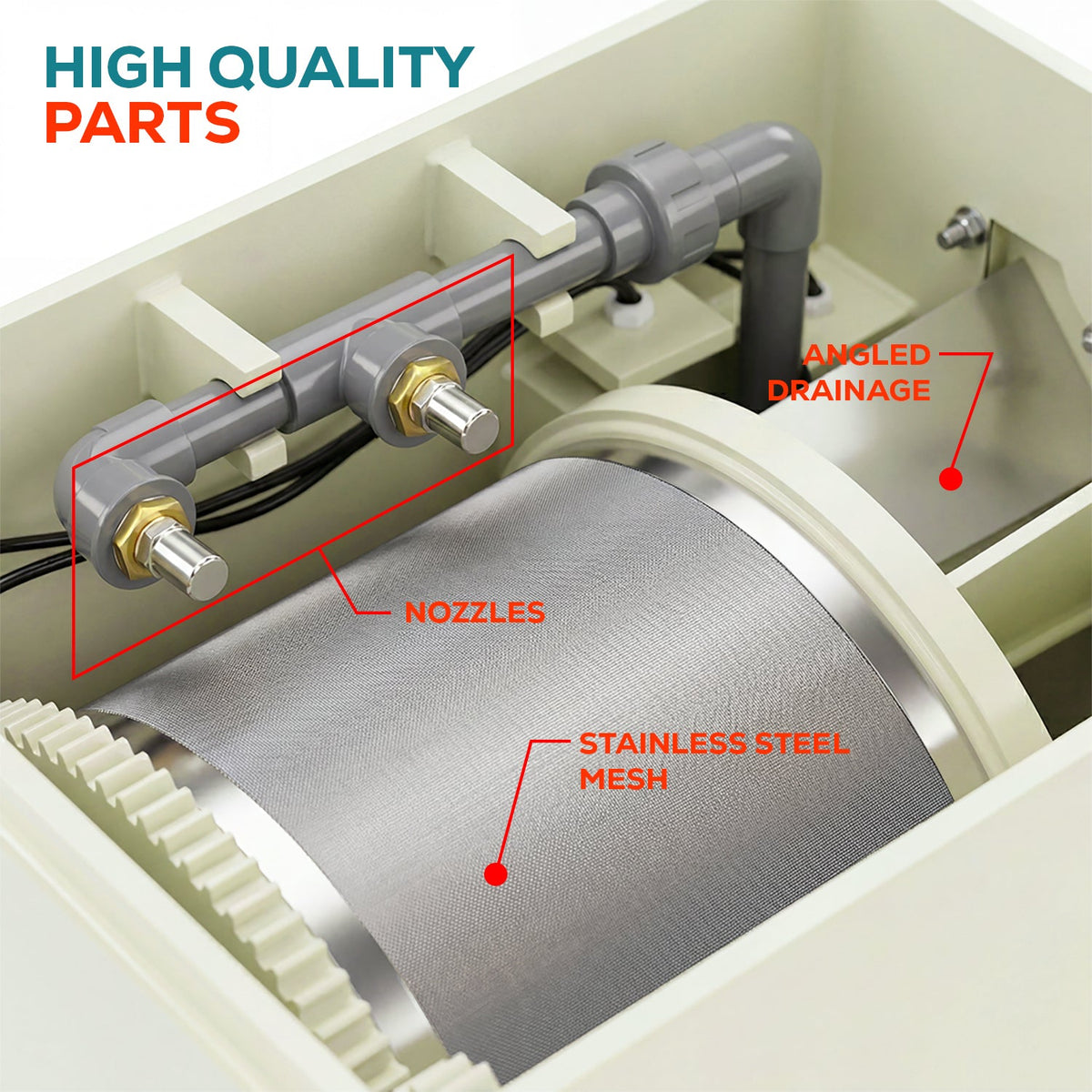

Water enters the 316 food-grade stainless steel rotary drum filter screen axially and flows radially through the mesh, which captures all suspended particles ≥50 μm — including fish waste, fine sediment, algae, and organic debris. When debris builds up to the threshold level, the intelligent automatic water-level control system activates a timed high-pressure backwash cycle: the drum rotates as pressurized nozzles flush all trapped impurities directly to the sewage outlet for discharge — completely hands-free. Once the timed cycle ends, the system returns to normal filtration automatically.

Constructed from food-grade PP material rated for 10+ years of continuous outdoor use, the T5 withstands prolonged exposure to UV, heat, rain, and corrosion without loss of performance. Its inclined-bottom chamber design eliminates dead zones and ensures complete sewage drainage with every backwash cycle, while the built-in biochemical filtration stage rapidly cultivates beneficial nitrifying bacteria for stable, long-term water clarity.

The integrated buffer pool design prevents leakage of suspended matter at the inlet, ensuring no bypass of unfiltered water — a key feature often missing in lower-cost alternatives.

Key Features:
• Automatic self-cleaning rotary drum filter — smart water-level triggered backwash cycle
• 316 stainless steel micro-filter screen — captures suspended particles ≥50 μm
• Biochemical filtration stage — rapidly establishes beneficial nitrification bacteria colonies
• Inclined-bottom design — no blockages, no dead zones, complete sewage drainage
• Integrated buffer pool alignment — prevents suspended matter leakage at inlet
• Food-grade PP construction — 10+ year lifespan, UV/corrosion/heat resistant
• Energy-saving 6W motor with turbine inverter pump — quiet and efficient operation
• Ideal for koi ponds, small-to-mid aquaculture setups & freshwater systems

Specifications:
• Pond Capacity: Up to 1,320 Gallons (5 Tons)
• Flow Rate: 1,345 GPH
• Water Inlet: DN25 (1 inch) | Outlet: DN40 (1.5 inches)
• Sewage Outlet: DN40 (1.5 inches)
• Motor Power: 6W | Pump Power: 80/96W
• Filter Particle Size: ≥50 μm
• Material: Food-grade PP + 316 Stainless Steel Screen
• No UV sterilizer included (UV available in BTS5, BTS-10, BTS30 & BTS50 models)

In the Box:
• 1× T5 (5-Ton) Automatic Rotary Drum Pond Filter Unit

Safety & Maintenance Notes:
• Never run the water pump dry — always ensure water flow before starting
• Stop the pump fully before adjusting any valve settings
• Regularly inspect nozzles for blockage; clean or replace promptly as needed
• Protect all electrical components from water overflow or splash during operation
• Follow pump operation manual guidelines for all daily maintenance
• Never disconnect pump fittings or unions while the pump is running
