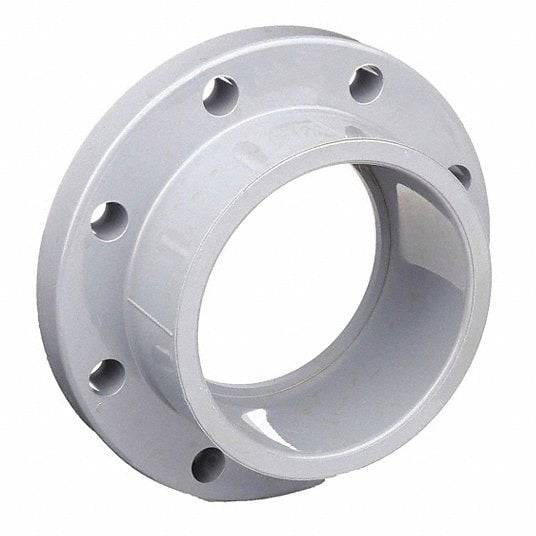

8-Inch Schedule 80 Van Stone Flange – 150 PSI Rating

Upgrade your piping system with our high-quality 8-Inch Schedule 80 Van Stone Flange, designed for durability and reliability in demanding industrial applications. This flange is ideal for creating secure, leak-proof connections in systems operating at pressures up to 150 PSI.

Key Features

• Size: Fits standard 8-inch nominal pipe size
• Schedule 80: Thicker wall construction for enhanced strength and higher pressure tolerance
• 150 PSI Pressure Rating: Suitable for high-pressure applications
• Van Stone Design: Two-piece flange allows for easy alignment and installation without rotating the entire pipe
• Durable Material: Constructed from robust materials for long-lasting performance (PVC)
• Corrosion Resistant: Ideal for use in corrosive environments and with a variety of fluids

Applications

• Industrial piping systems
• Chemical processing plants
• Water and wastewater treatment facilities
• Marine and offshore installations
• Any system requiring reliable and easy-to-install flange connections

The Van Stone flange design simplifies installation and maintenance by allowing bolt holes to align easily without the need to rotate heavy pipes. This feature not only saves time but also reduces labor costs and potential damage to the piping system.

Specifications

• Flange Type: Van Stone (Lap Joint)
• Nominal Pipe Size: 8 inches
• Schedule: 80
• Pressure Rating: 150 PSI
• Compatible Pipe Materials: Compatible with Schedule 80 pipes (PVC)
• Bolt Circle Diameter: 3/4
• Number of Bolt Holes: 8
• Outer Diameter (OD): 13 9/16
• Bolt Circle Diameter: 11 3/4
