• Dual platforms
• Solid top support brace to prevent bowing
• Foam filter block for the top platform
• Protein skimmer section
• Refugium section

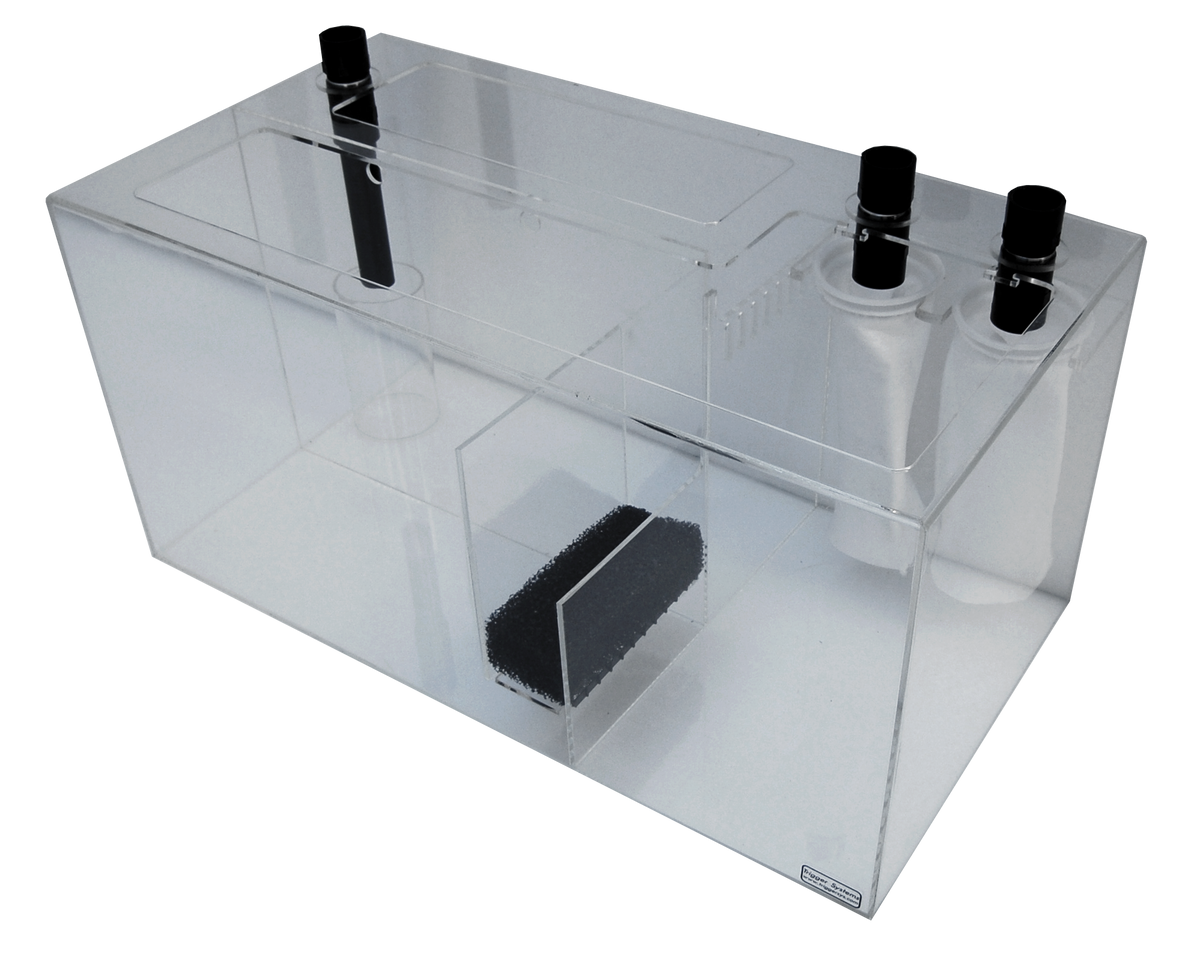

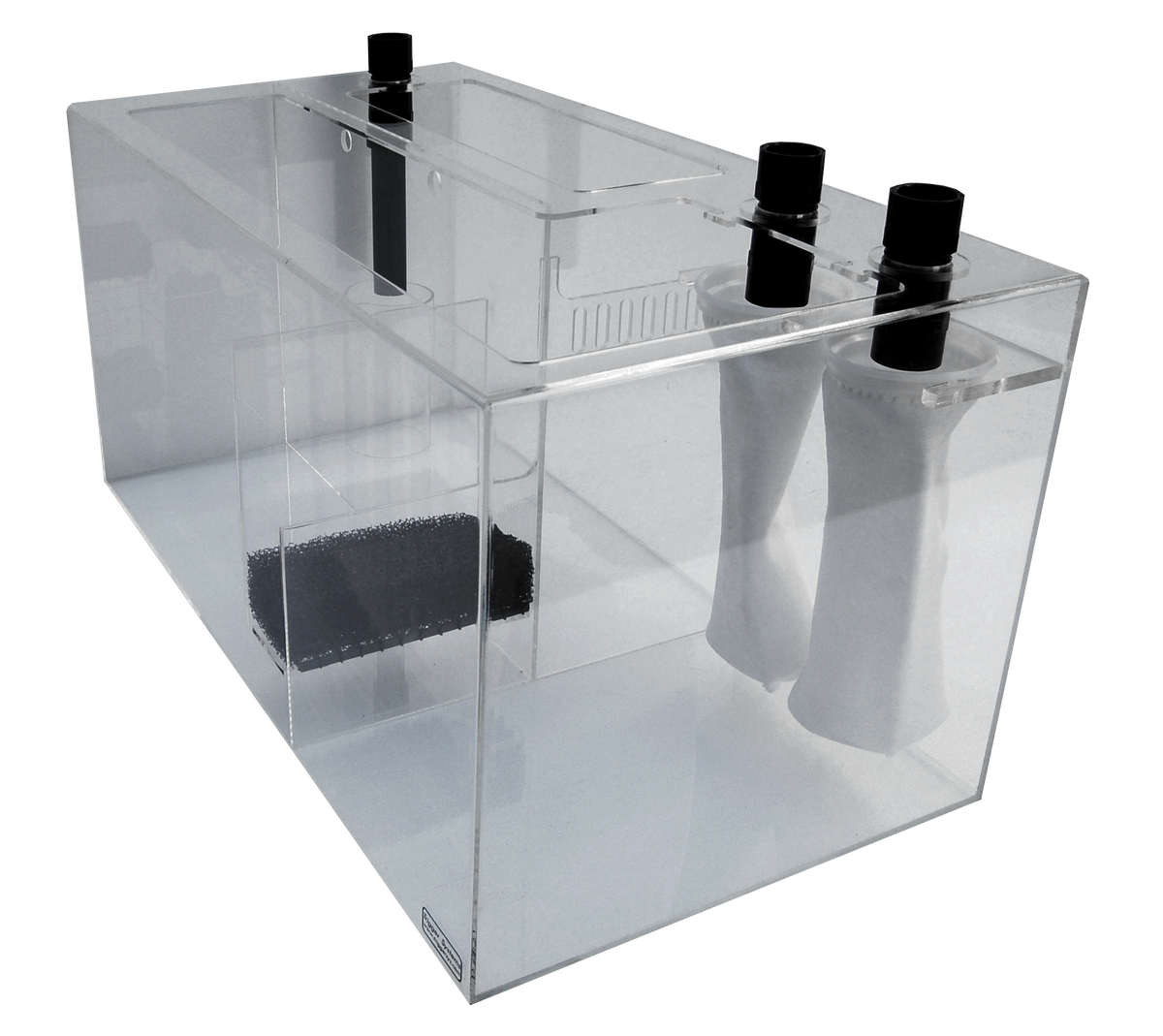

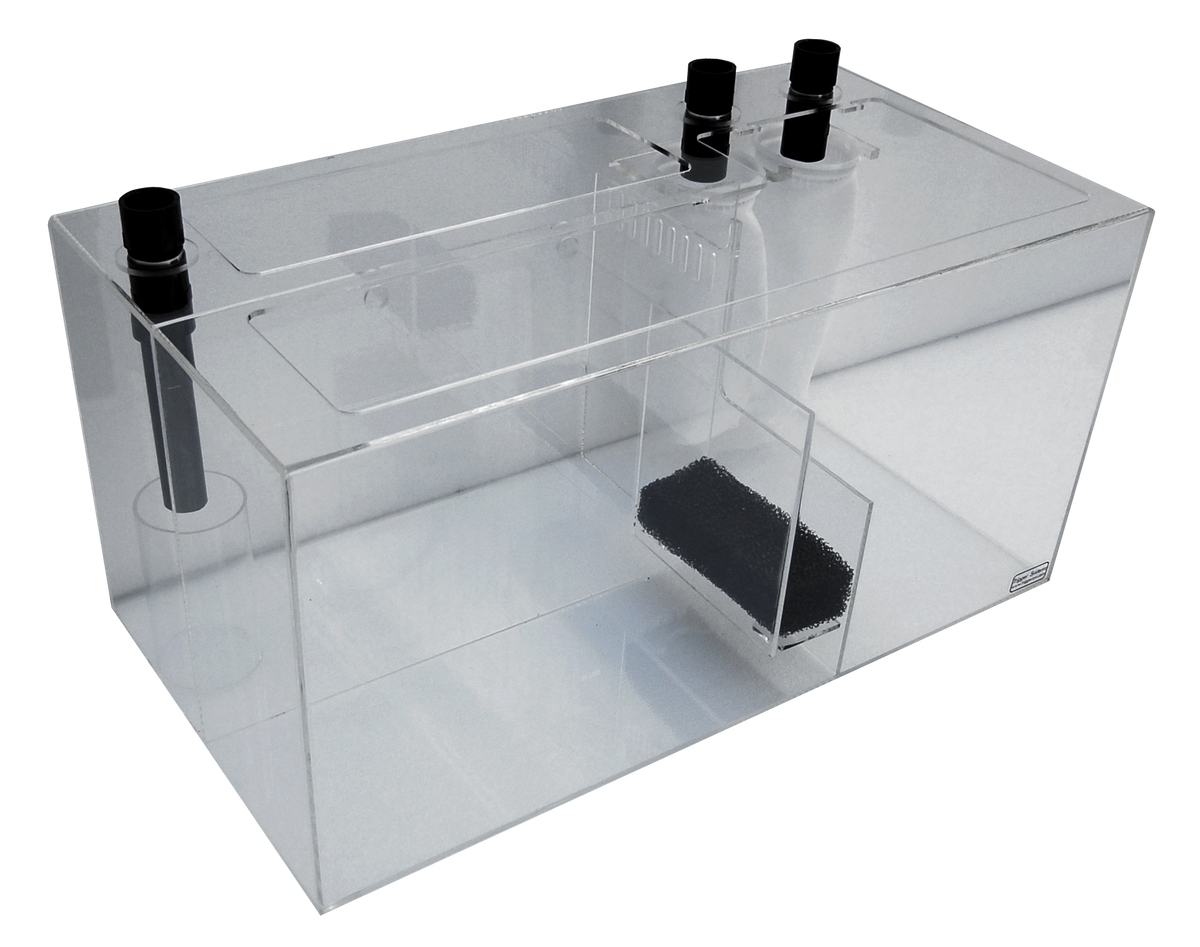

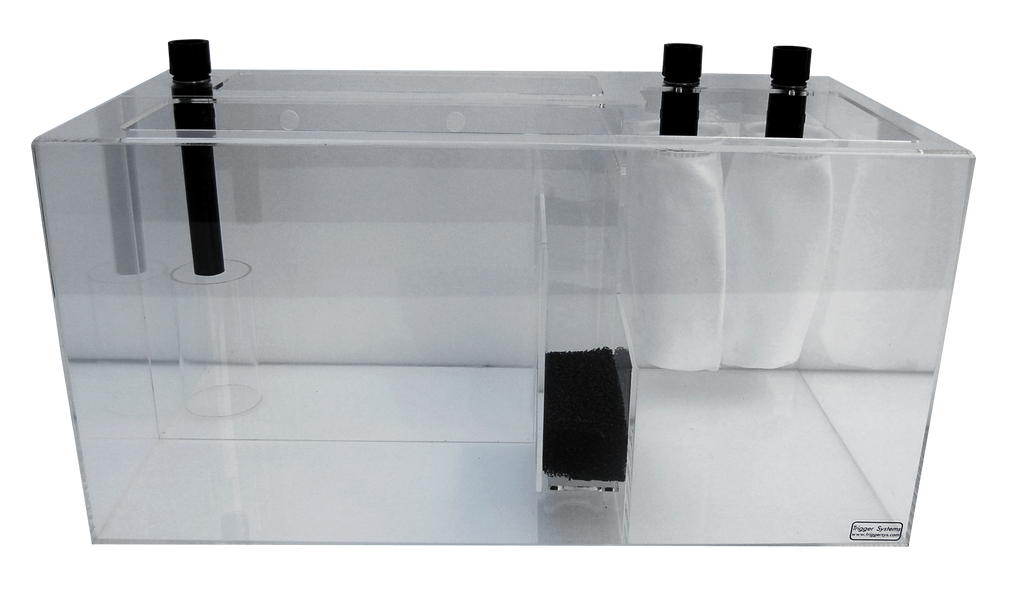

CRYS30S SECTION DETAILS

The CRYS30S has 3 main sections. Water drains from the tank into section 1 through the 100 micron-provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.
Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).
Section 3 is the return section where the return pump will sit, pumping water back to the display tank.


KEY FEATURES
1. Drawstring tabs for 7″ drawstring filter socks
2. Locking filter sock holder
3. Full top support brace to prevent bowing
4. Dual media platforms
DUAL MEDIA PLATFORMS
There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

DRAWSTRING TABS
A tab is located on the top support brace in front of the 1” bulkhead fitting. The purpose of this tab is to provide a location for tying off 7” diameter filter socks that have drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

LOCKING FILTER SOCK HOLDER
Filter socks snap and lock into the filter sock holders to secure the sock from falling out when it becomes clogged. The 4” filter sock is 100-micron rating.
