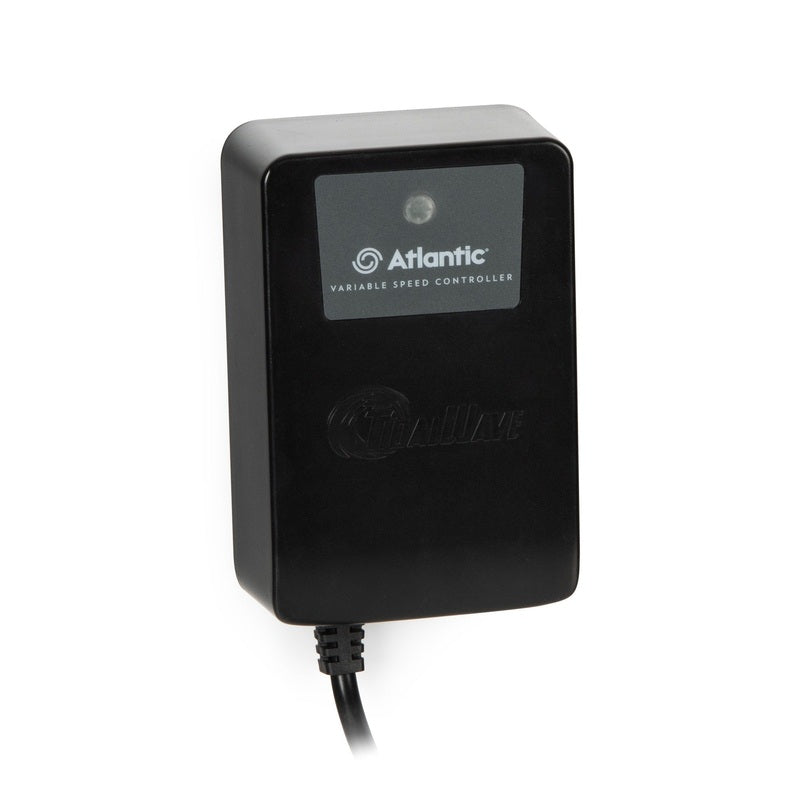

Atlantic TidalWave Variable Speed Controller – TWVSC

Take complete control of your Atlantic TidalWave TT-Series pump with the Atlantic-OASE TidalWave Variable Speed Controller (TWVSC). Designed specifically for Atlantic TT-Series asynchronous pumps, this controller allows you to fine-tune water flow, reduce power consumption and customize the operation of your pond, waterfall or water feature directly from your smartphone or tablet.

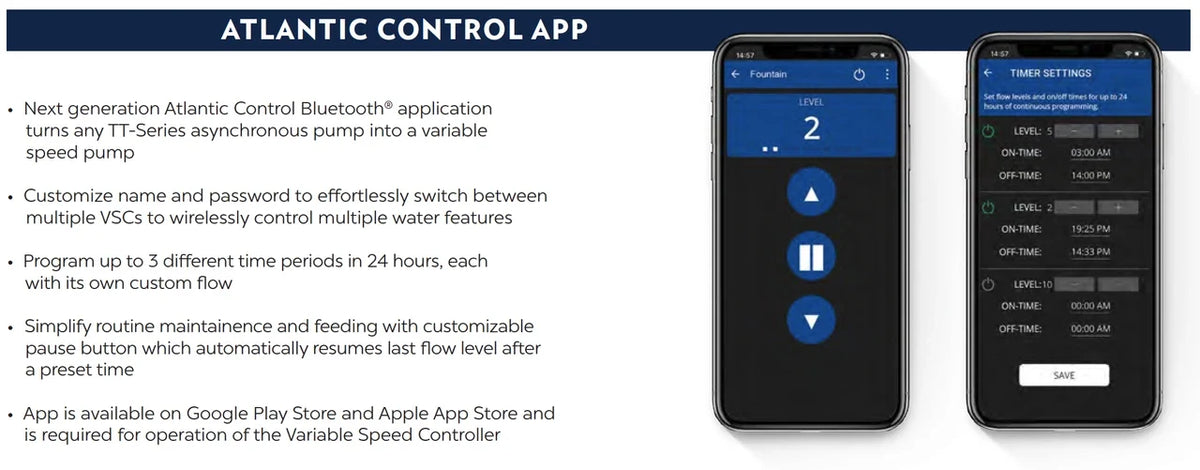

Using the Atlantic Control Bluetooth® App, pump output can be adjusted from 100% down to 30% in 10 individual speed levels, allowing you to easily increase or decrease water flow to suit your application. This is ideal for adjusting waterfall appearance and sound, reducing flow during certain times of day, or lowering pump energy consumption when maximum flow isn't required.

The controller also provides advanced scheduling capabilities. Program up to three different operating periods within a 24-hour period, each with its own customized flow setting. A convenient programmable pause function temporarily stops or reduces operation for fish feeding, cleaning or routine pond maintenance and automatically returns the pump to its previous setting afterward.

Unlike pumps with an integrated variable speed controller, the Atlantic TWVSC is a separate, standalone controller. This allows the pump and controller to remain separate components for easier servicing or replacement.

Built for outdoor water-feature applications, the TWVSC features a rugged weatherproof enclosure, covered pump connection and cord-lock system to help prevent accidental disconnection. In the event of a power outage, the controller retains the previously programmed flow level and on/off settings.

Features & Benefits

• Wireless variable-speed control for Atlantic TidalWave TT-Series asynchronous pumps
• Adjust pump output from 30% to 100%
• 10 adjustable flow levels
• Helps reduce pump wattage and energy consumption when operating at reduced flow
• Bluetooth® control through the Atlantic Control App
• Program up to 3 customized operating periods per day
• Adjustable pause function ideal for fish feeding and pond maintenance
• Retains programmed flow and timer settings following a power interruption
• Rugged, weatherproof housing suitable for outdoor installation
• Cord-lock system helps prevent accidental pump disconnection
• Ability to name and password-protect individual controllers
• Easily switch between multiple controllers/water features within the app
• Separate controller design simplifies pump and controller servicing

Specifications

Manufacturer: Atlantic-OASE
Part Number / SKU: 73933
Model: TWVSC
Product: TidalWave Variable Speed Controller
Compatible Pumps: Atlantic TidalWave TT-Series asynchronous pumps up to 800 watts
Control Range: 30%–100% pump output
Speed Settings: 10 levels
Connectivity: Bluetooth®
Required App: Atlantic Control App
Cord Length: 6 ft
Dimensions: 6" H × 4" L × 2" W
Installation: Outdoor/weatherproof enclosure
Warranty: 3-Year Limited Warranty

Compatibility

Designed for use with Atlantic TidalWave TT-Series asynchronous pumps, including TT-Series models from the TT1500 through TT9000, provided the connected pump does not exceed the controller's 800-watt maximum rating.

Important: The Atlantic Control App is required to operate and program the current TWVSC Variable Speed Controller.
