Part Number 564

Sliding Patio door handle set. Set for 1 door panel. Handing is reversible.

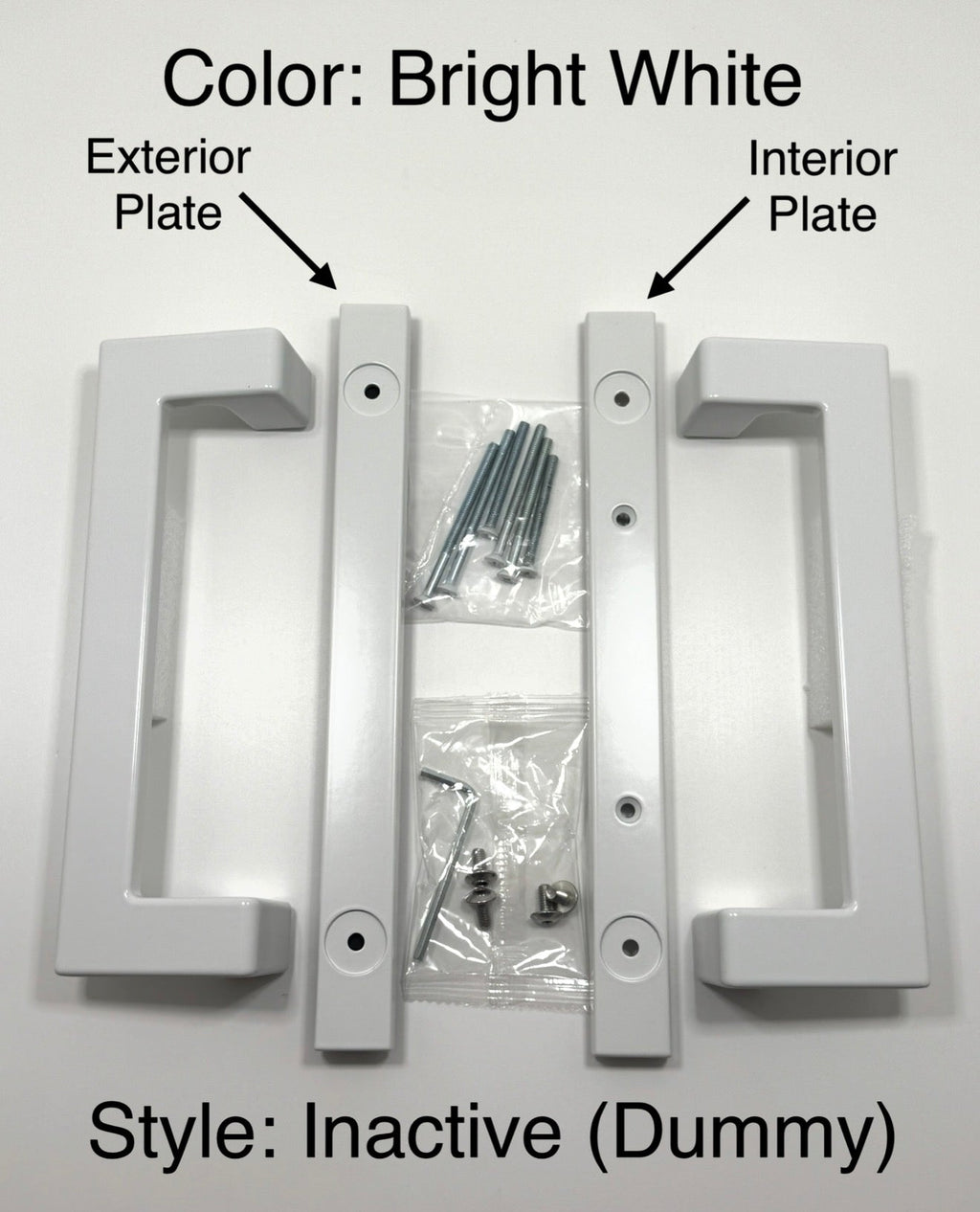

Package contains (Depending on style):

• One interior plate with handle
• One exterior plate with handle
• 2 Levers (reversible for your handing of sliding door)
• 4 Lever mounting screws
• Allen Wrench
• 4 Plate Mounting screws (For stile thicknesses 1.25 inch to 2.25 inch)
• Thumb latch (Inactive style does not have thumb latch)
• Keyed Cylinder and 2 keys (For Active keyed style only)
• Instructions

Can be used to replace one W&F 516 handle.

Hole spacing is 3 15/16". Plate is 1"x10". Handles are reversable.

Options:

• Color:
  • Bright White
  • Matte Black
• Style:
  • Active Keyed (Center Latch) Latch is centered in handle.
  • Active Keyed (Offset Latch) Latch is just below or just above center depending on how the plate is installed.

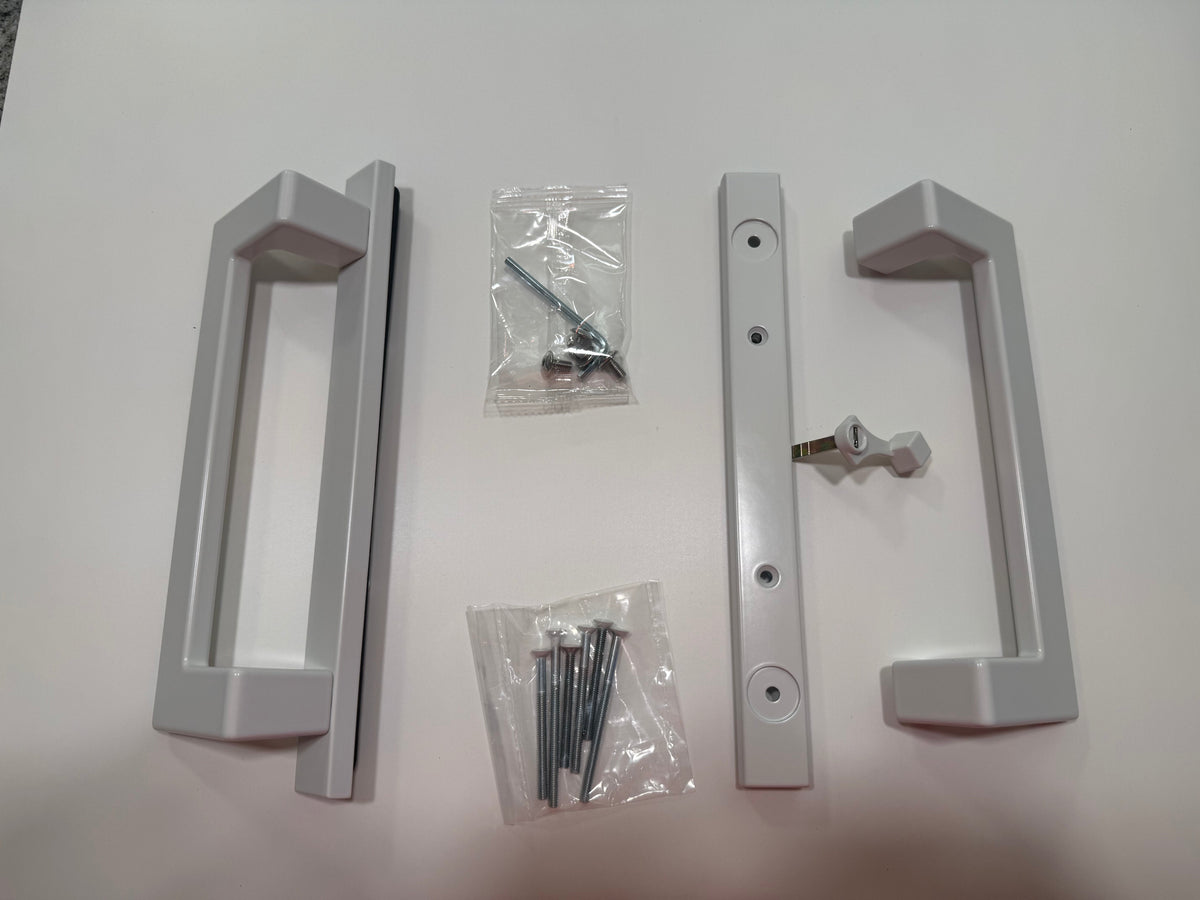

  • Semi Active (No Key) Latch can be installed center or offset up or down. No keyed cylinder for exterior.
  • Inactive (dummy) Handle only with no latch. Used on double doors for non locking side as a pull.

***This handle set can be used as an retro fit replacement option for W&F and Hurd brand slider doors with:

• 516 handle wood style, (use Active Offset Latch or Semi-Active style)
• 516 All Brass (use Active Center Latch or Semi-Active style)
• 522 C elite handle (use Active Offset Latch or Semi-Active style)
• S3006 C elite handle set (use Active Center Latch or Semi-Active style)

Additional parts sold separately:

• 518 Mortise lock Single Point Style. Gray 45 degree needed for this handle. See pictures on 518 to determine if this is needed.
• 533 Keeper latch Keeper for 518 Mortise lock.
• S3027 Keeper This keeper works with S3011, C1033 and 518 Mortise Lock
• C1058 Gemini Single Point Keeper. This Keeper works with 518 and C1033 Mortise lock
• S3007 Mortise Lock and Keeper Single Point Style. See pictures on S3007 to determine if this is the style you need.
• S3011 Mortise Lock Single Point Style. See pictures on S3011 to determine if this is the style you need.
• C1035 Dual Action Mortise Lock See pictures on C1035 page to determine if this is the style you need
• 558 Recessed Dual Action Mortise Lock See pictures on 558 page to determine if this is the style you need
• C1059 Keeper latch this keeper works with C1035 mortise lock and 558 Mortise Lock. See pictures on product page to determine if this is the style keeper you need
• C1061 Keeper Latch This keeper works with C1035 mortise lock an d 558 Mortise lock. See pictures on product page to determine if this is the style keeper you need
• S3016 Gemini 2 Point Keeper This keeper works with C1035 mortise lock. See pictures on product page to determine if this is the style keeper you need

Amesbury Truth Mid Contemporary 40.69 Description:

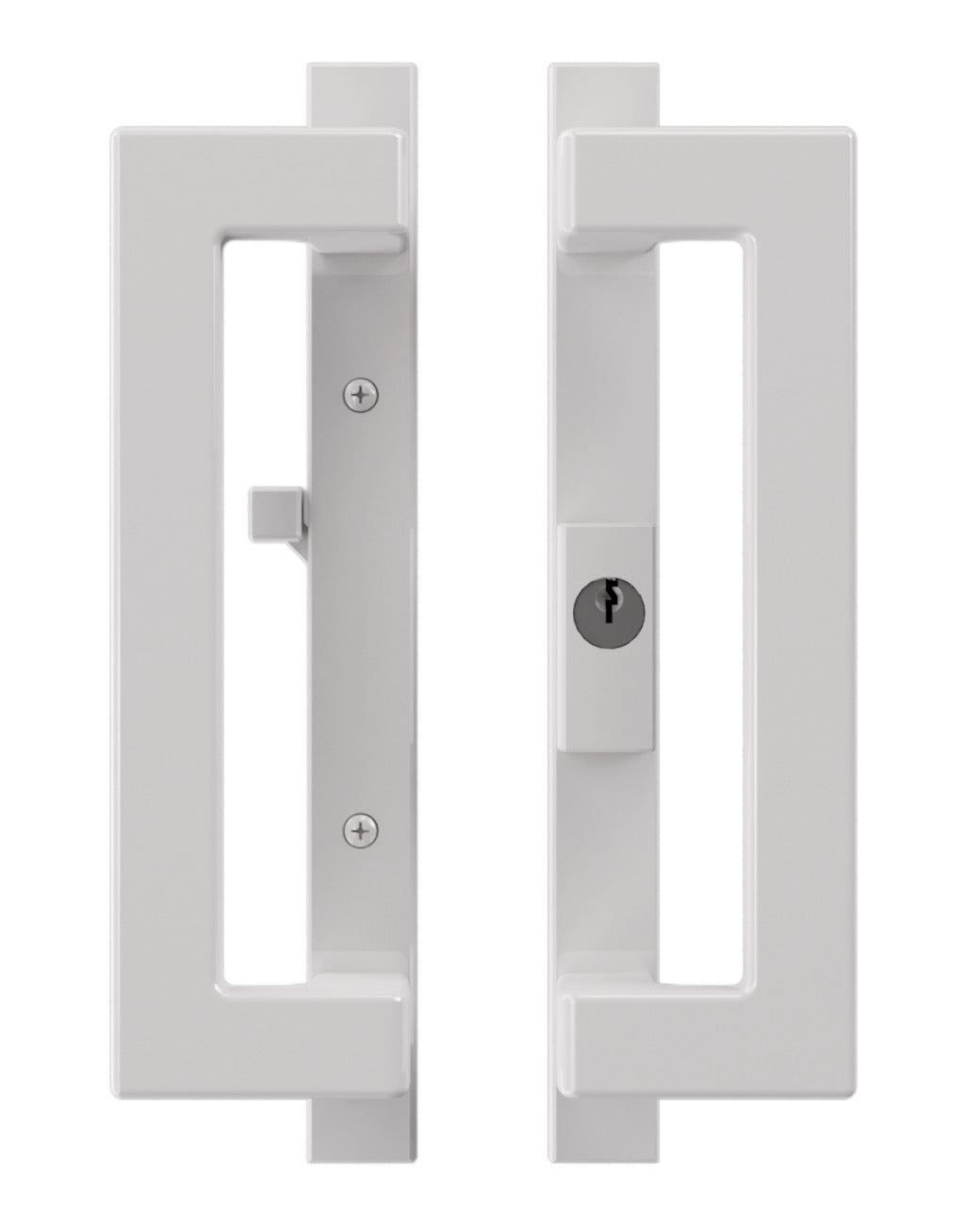

Contemporary designed handle features an offset grip that delivers a distinctive, refined look while ensuring smooth, comfortable operation. The integrated lock lever and optional key cylinder, positioned cleanly within the handle space on the 10” escutcheon, create a streamlined, user-friendly experience without visual clutter.

Engineered for versatility, it fits stile thicknesses from 1.25” to 2.25” and is available in active, semi-active, and inactive configurations to support a wide range of door functions.
