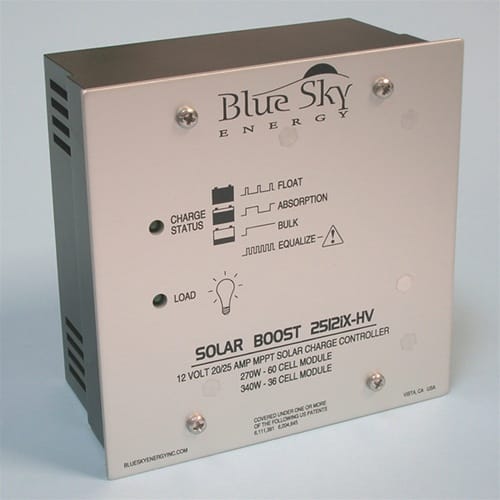

Blue Sky Solar Boost 2512iX-HV, MPPT Charge Controller, 25 Amp, 12 Volt

**Please note the maximum recommended input VOC to the charge controller is <40Voc**

Patented Maximum Power Point Tracking technology allows Solar Boost 2512i-HV and 2512iX-HV to increase charge current up to 30% or more compared to conventional charge controllers. The new higher input voltage capability of the HV version product now allows the use of higher voltage lower cost 60 cell PV modules to charge a 12 volt battery. Don’t waste your money by throwing PV power away! Get the power you paid for with a Solar Boost charge controller.

The lower cost Solar Boost 2512i-HV provides an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less maintenance. A partial IPN network interface is also included to allow use of the Universal Communication Module (UCM), and IPN-Remote and IPN-ProRemote displays.

Additional features provided in the Solar Boost 2512iX-HV version include automatic equalization, battery temperature sensor input, full IPN network compatibility, and an auxiliary output. The auxiliary output can serve as a 25 amp load controller, 25 amp lighting controller, or as a 2 amp auxiliary battery charger. The auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.

Features

• 20/25 Amp 12 Volt Rating Supports A Wide Range Of Applications
• Optional IPN-ProRemote Display Provides Charge Control and Full-Featured Battery Monitoring System
• Supports up to 270W of 60 Cell modules
• 3-Stage Charge Control with Filtered PWM Output Improves Battery Performance and Life While Minimizing Battery Maintenance
• Clear Anodized Faceplate, Conformal Coated Electronics and Plastic Case Resist Corrosion
• Full 5 Year Limited Warranty
• Automatic or Manual Equalization To Periodically Condition Flooded Lead-Acid Batteries
• Full IPN Network Interface Coordinates Multiple Controllers and Shares Optional Battery Temperature Sensor and Display
• Auxiliary Output Provides 25 Amp Load Control Or 2 Amp Auxiliary Battery Charge
• Load Controller Provides Fully Adjustable Dusk To Dawn Lighting Control
• Battery Temperature Sensor Input

Additional features provided in the Solar Boost 2512iX-HV version include automatic equalization, battery temperature sensor input, full IPN network compatibility, and an auxiliary output. The auxiliary output can serve as a 25 amp load controller, 25 amp lighting controller , or as a 2 amp auxiliary battery charger. he auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.

Blue Sky Energy’s advanced Integrated Power Net, or IPN Network, allows multiple charge controllers to communicate with each other and coordinate their activities to charge the battery as a single coordinate charging machine. he IPN network also allows networked controllers to share an optional battery temperature sensor, UCM and remote display. Complete IPN network functionality is provided within the charge controller and no additional hardware or sotware is required.
