Product Overview

CRL Cardiff Series Pivot Hinges are specifically designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and offer a wide range of applications. Pivot-type hinges have numerous advantages, including the ability to carry most of the weight at the bottom, self-centering capability with four springs for maximum retention strength, and the option to order 5º Pre-Set Pivot Pin Sets separately. The Cardiff Series is also adaptable to the Deluxe Header System for shower enclosures that don't extend all the way up to the ceiling.

Other notable features and details include:

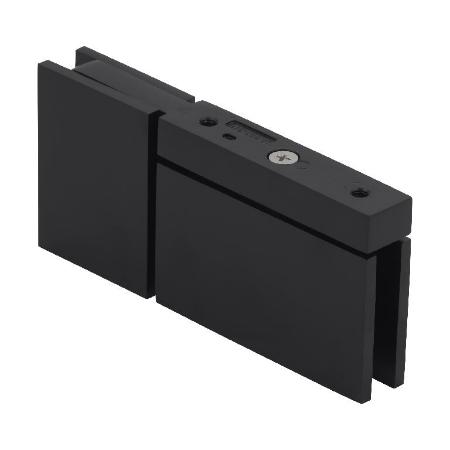

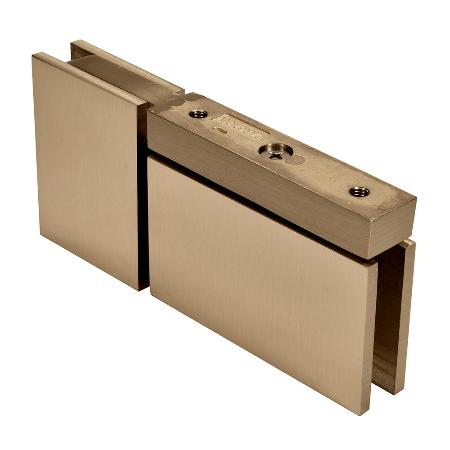

• Top or Bottom Mount with Attached U-Clamp
• Provides Alternative to Using Traditional Horizontal Metal Header Systems Across Enclosure
• 3 Year Warranty
• U.S. Patent 5,297,313
• Can Also Be Mounted at the Bottom of Door and Adjacent Panel for Symmetry
• For 3/8" and 5/16" (10 and 8 mm) Thick Tempered Glass
• Stocked in Seven Popular Finishes, with Custom Finishes Available
• Design and Installation Criteria Available
• Use Monolithic Tempered Glass

Product Warning: Please be aware that CRL Shower Door Hinges are designed specifically for residential or hotel shower use.
