Part Number: D301* 1 handle set will install on 1 door panel. If you have 2 door panels (like a French door) you will need to order 2 handle sets.

W&F Trilennium 6 Inch CTC multipoint bore D301 is the new Replacement Handle Set - - Non stock item special order - Estimate 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns

D301 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.

Requires: 1 11/16" or 2 1/8" cross bore

Screw Hole Placement: 5 3/16" Center To Center

Model: D301 Standard Set**

Size: for Door Panel Thickness 1 3/4" or 2 1/4"

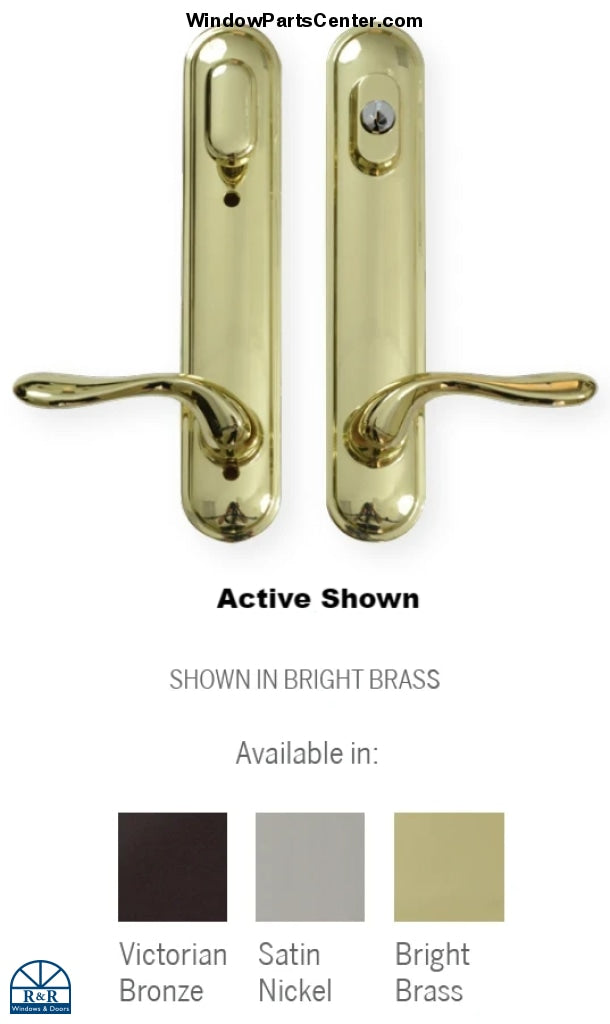

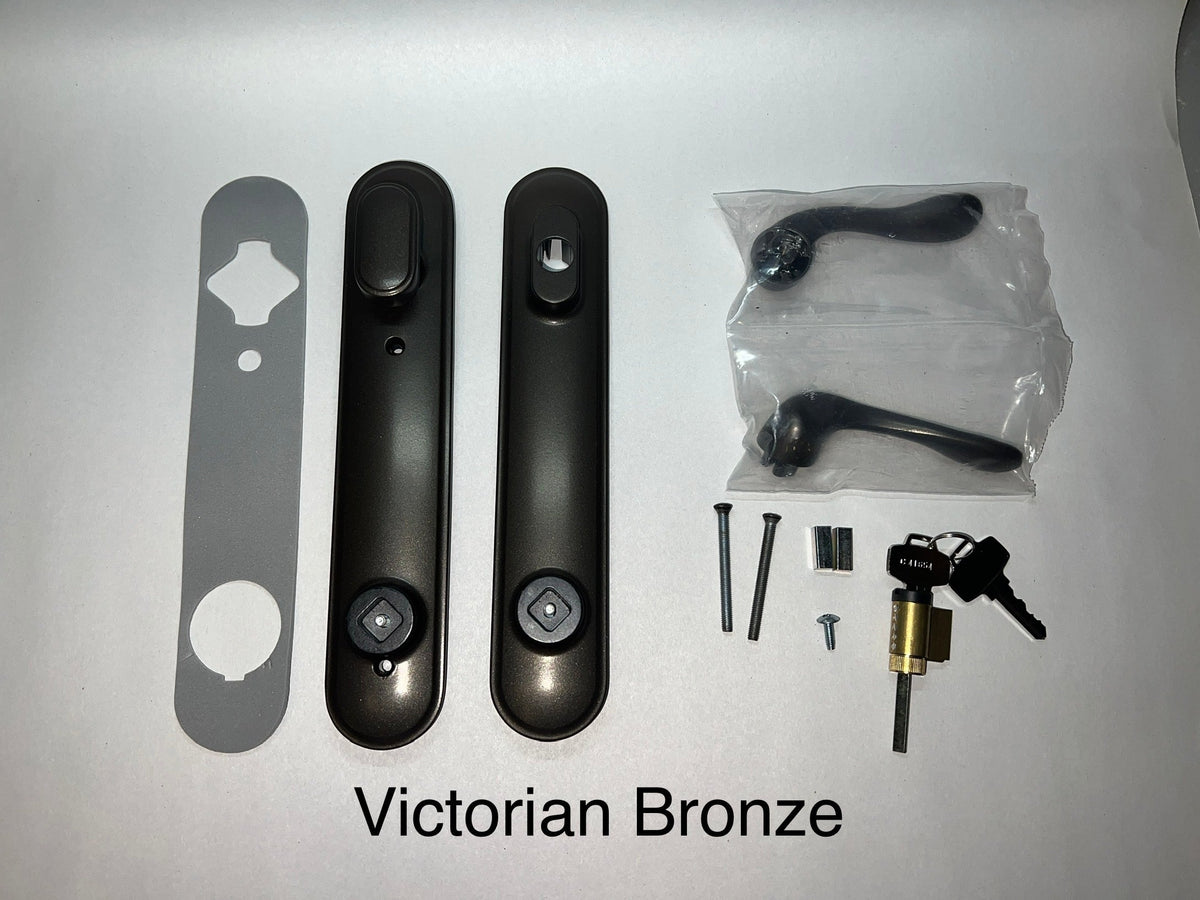

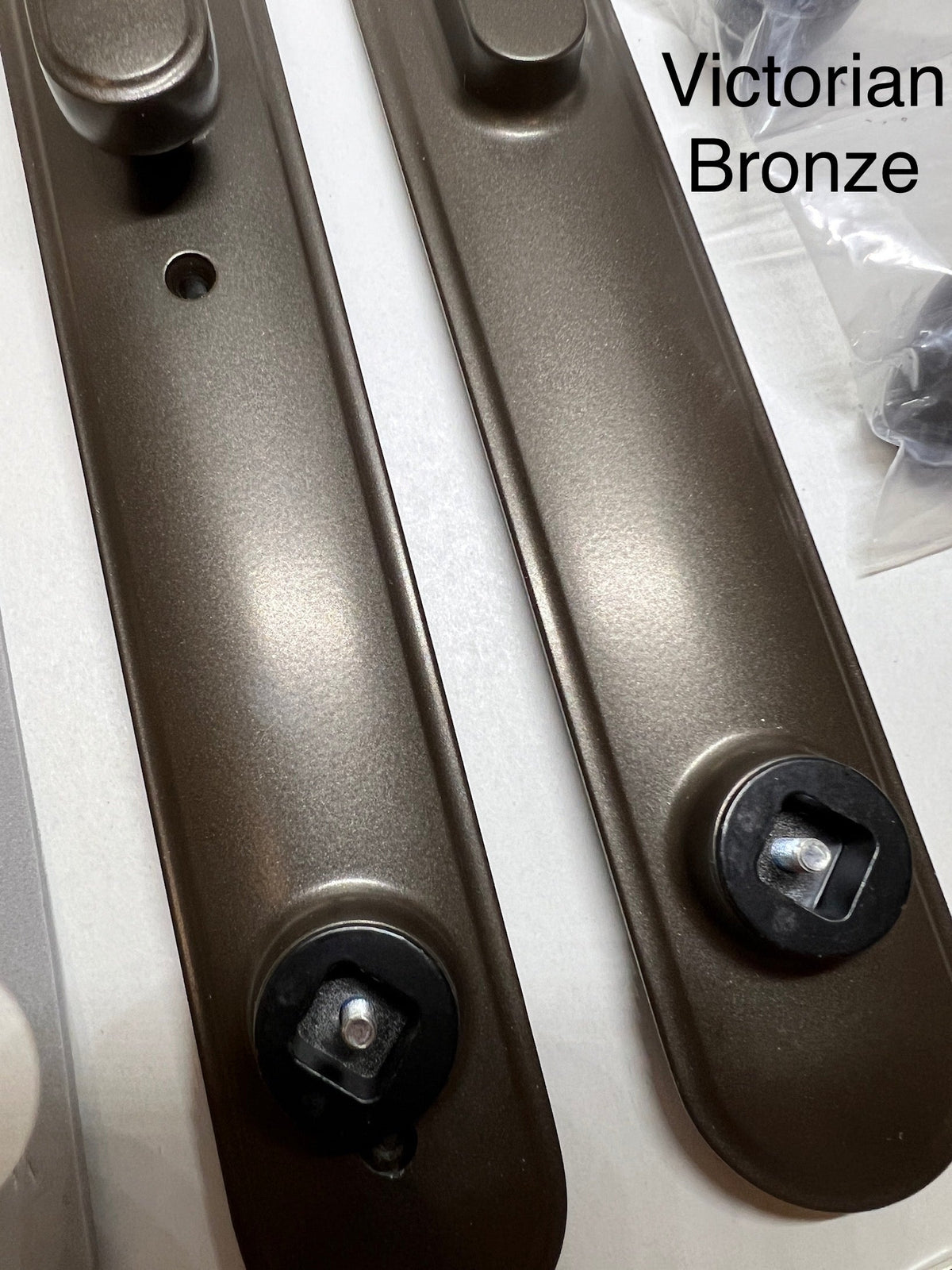

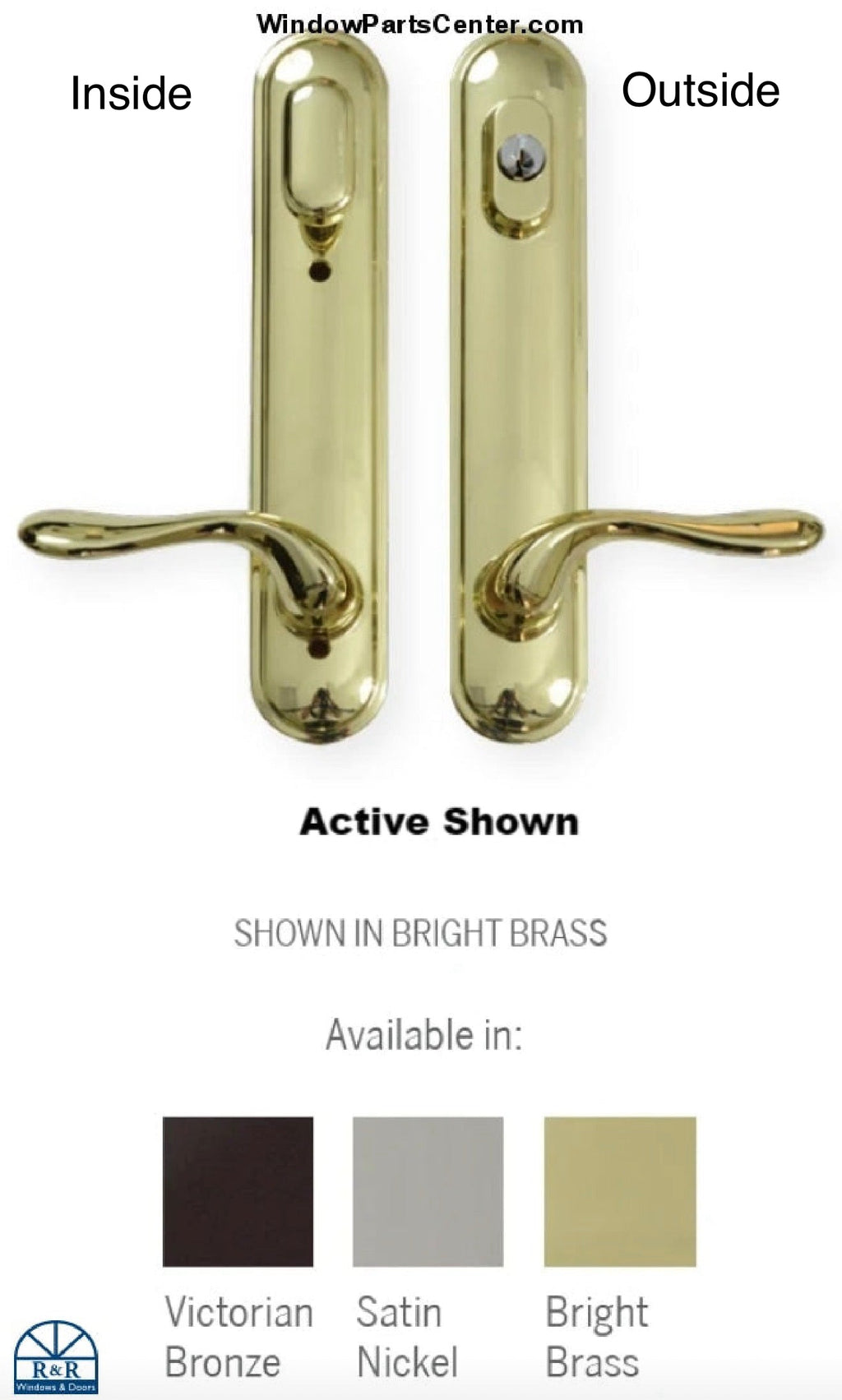

Colors: Victorian Bronze, Satin Nickel, Bright Brass

Handing: Universal - Non handed. Works for both LH and RH swing doors depending on which lever you use for the exterior and interior

Style:

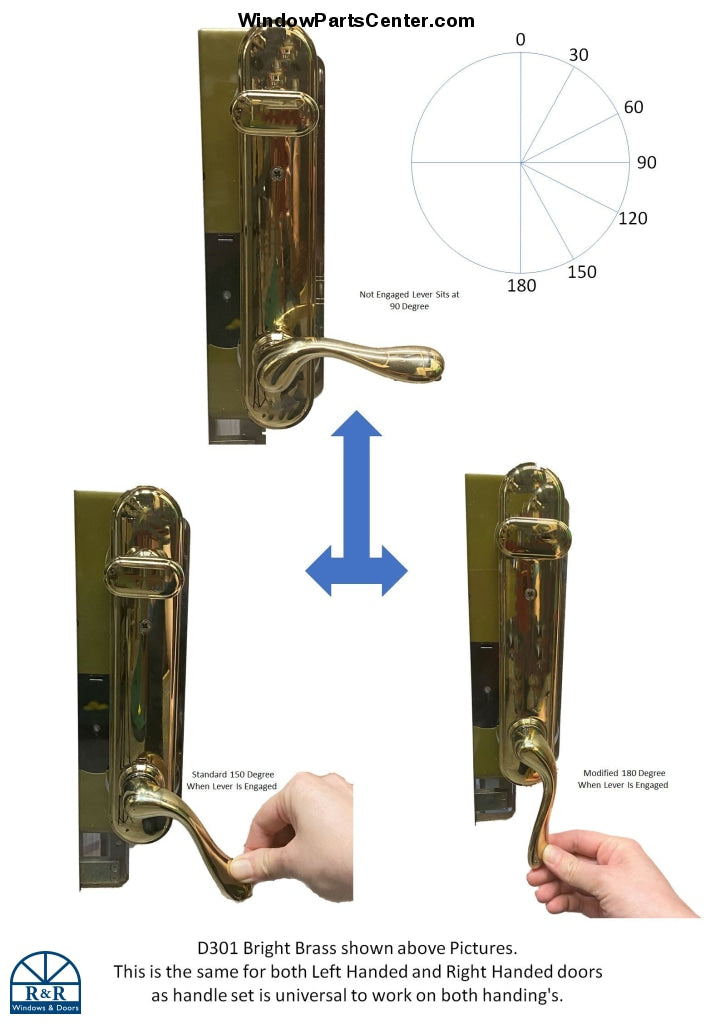

• Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates this is used with the newer style multi point see pictures for lever degree diagram).

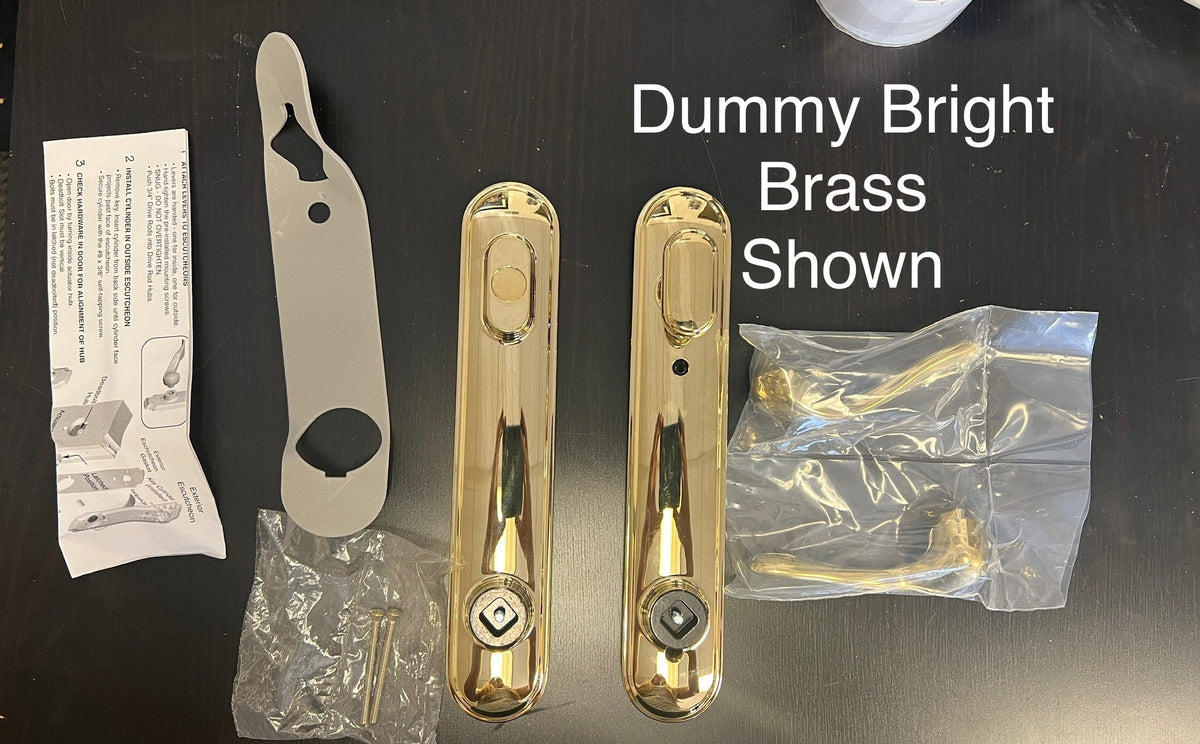

• Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
• Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever* For Inactive panels in French doors that has 3020 lock installed only

Active Modified 180° Option (Add-On)

• This option modifies the lever handle to rotate 180°, which is required for some older multi-point and double bore systems. (See product images for examples of lever rotation.)
• How to order:
  This is an additional add-on and must be selected under “Accessory Items.”
  • If you order 1 handle set → add Qty 1 of the 180° modification
  • If you order 3 handle sets → add Qty 3 of the 180° modification
• Each handle set that needs this modification requires its own quantity.

Notes for other options for this style hardware on older doors:

• D301 handle set is manufactured to be used with the current multipoint system and will work with it for you right out of the box - you will order Active Standard 150 Degree (see pictures for lever degree diagram and associated parts below).
• If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is 5 3/16" Center To Center then you will order Active Modified 180 Degree to with with either of these two options (see pictures for lever degree diagram and associated parts below).
• If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).

footnotes:

1. Non stock itmes - Estimated 1-2 week for your order to ship - No order cancellations or returns
2. *Active Modified 180 Degree bushing or cartridge has no manufacturer warranty
3. Warranty claims are handled on a case by case basis by the manufacturer. Pictures need to be emailed to info@windowpartscenter.com to submit a warranty claim for factory to review.
4. This handle set also comes in other Models: See part numbers: D300, D301, D302, D304
5. Operational Lever: Can move up and down when door is unlocked
6. Fixed Lever: Inactive, and is intended for push/pull function.
7. Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.

Associated Parts Sold Separately:

• S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation W&F

• S4115 Peachtree W&F Peachtree Citadel Swing Patio Door Multipoint Lock

• For the Current Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com

Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.

Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
