Diode LED 45° Channel Bundle — Aluminum, 96 in. with Black Lens | Pack of 10

The Diode LED DI-CPCHB-45-BL-96-10 is a contractor pack of ten 96 in. aluminum 45° angled channel bundles, designed for large-scale architectural and accent lighting installations requiring precise directional light control. Each industrial-grade extrusion features a sturdy angled profile that acts as a heat sink, extending the lifespan of your LED tape light. Paired with a Black Lens, this pack delivers highly controlled, directional light output — ideal for commercial, hospitality, and high-volume residential projects where glare suppression and focused illumination are the priority.

Key Features

• Pack Quantity: 10 channel bundles per order.
• Length: 96 in. (8 ft.) aluminum channel per unit.

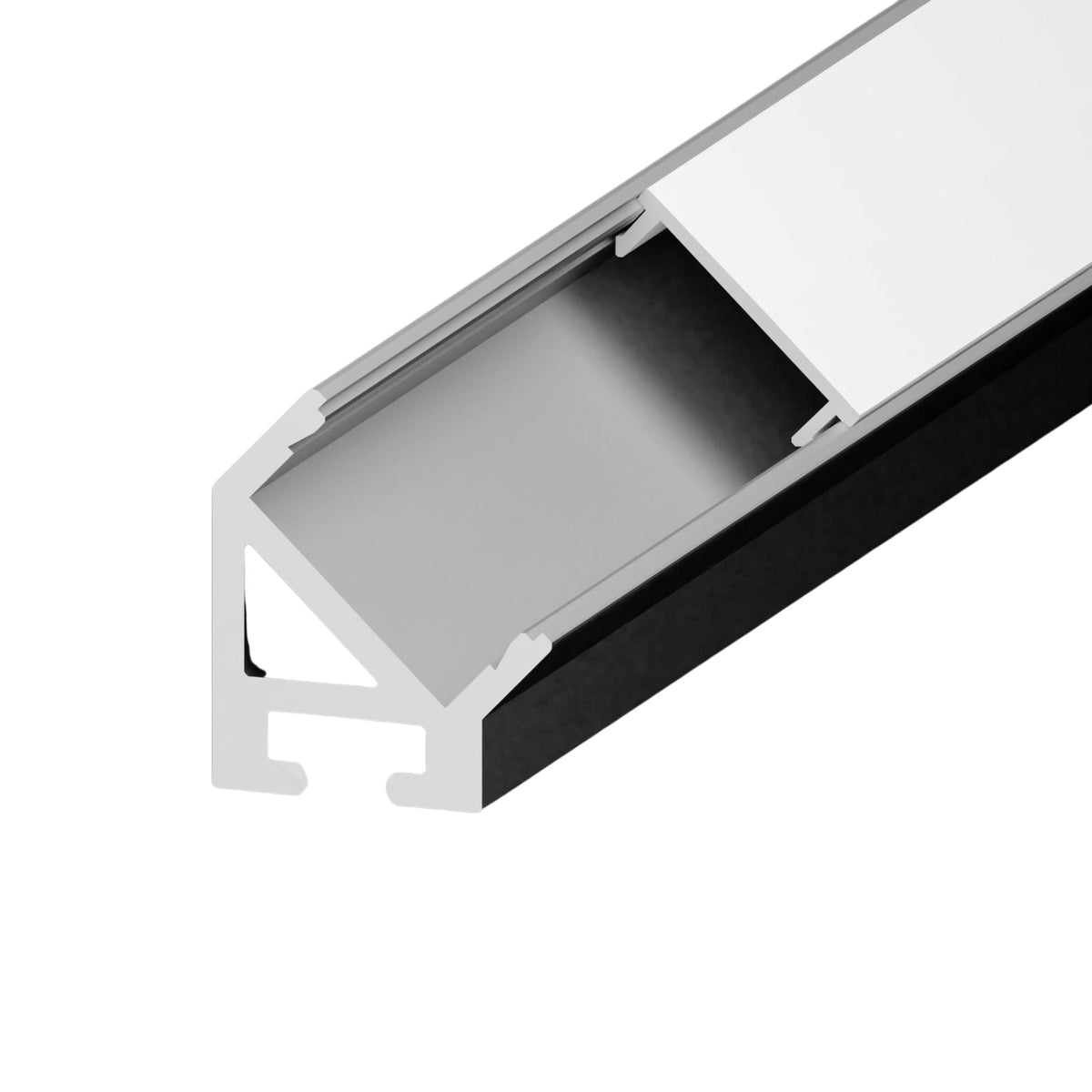

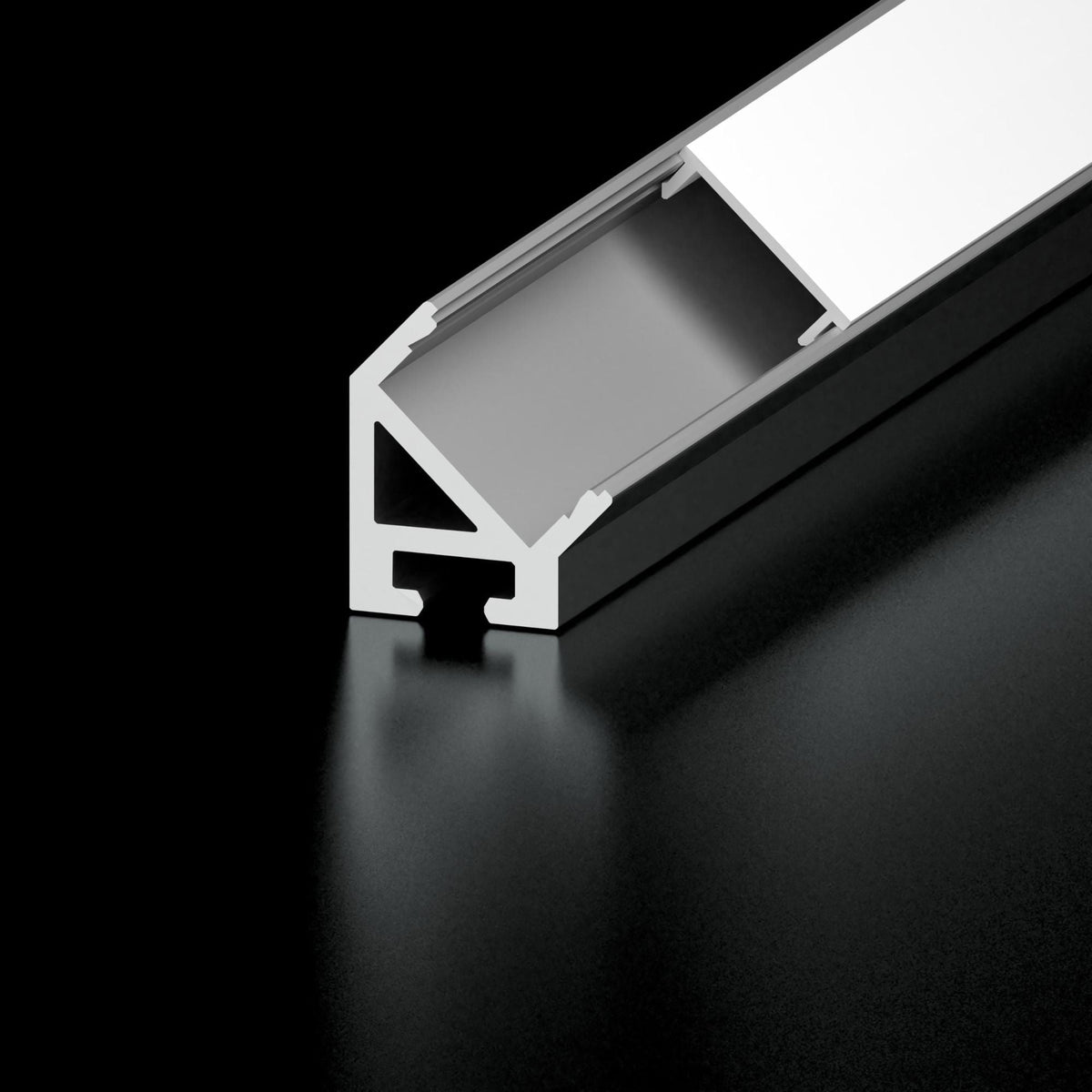

• Profile: 45° angled extrusion — sturdy, field-cuttable industrial profile.
• Lens: Black Lens included per channel for maximum glare suppression and directional light control.
• Heat Sink: Aluminum construction cools and prolongs LED tape light lifespan.
• Mounting: Compatible with Chromapath Surface, Vertical, Rotating, and Hanging mounts.
• Included Accessories (per channel): 96 in. aluminum channel, Black Lens, 4 mounting clips, 2 open end caps, 2 closed end caps.
• IP Rating: IP20 shift with lens installed.
• Warranty: 5-Year Limited Warranty.

Core Design & Profile

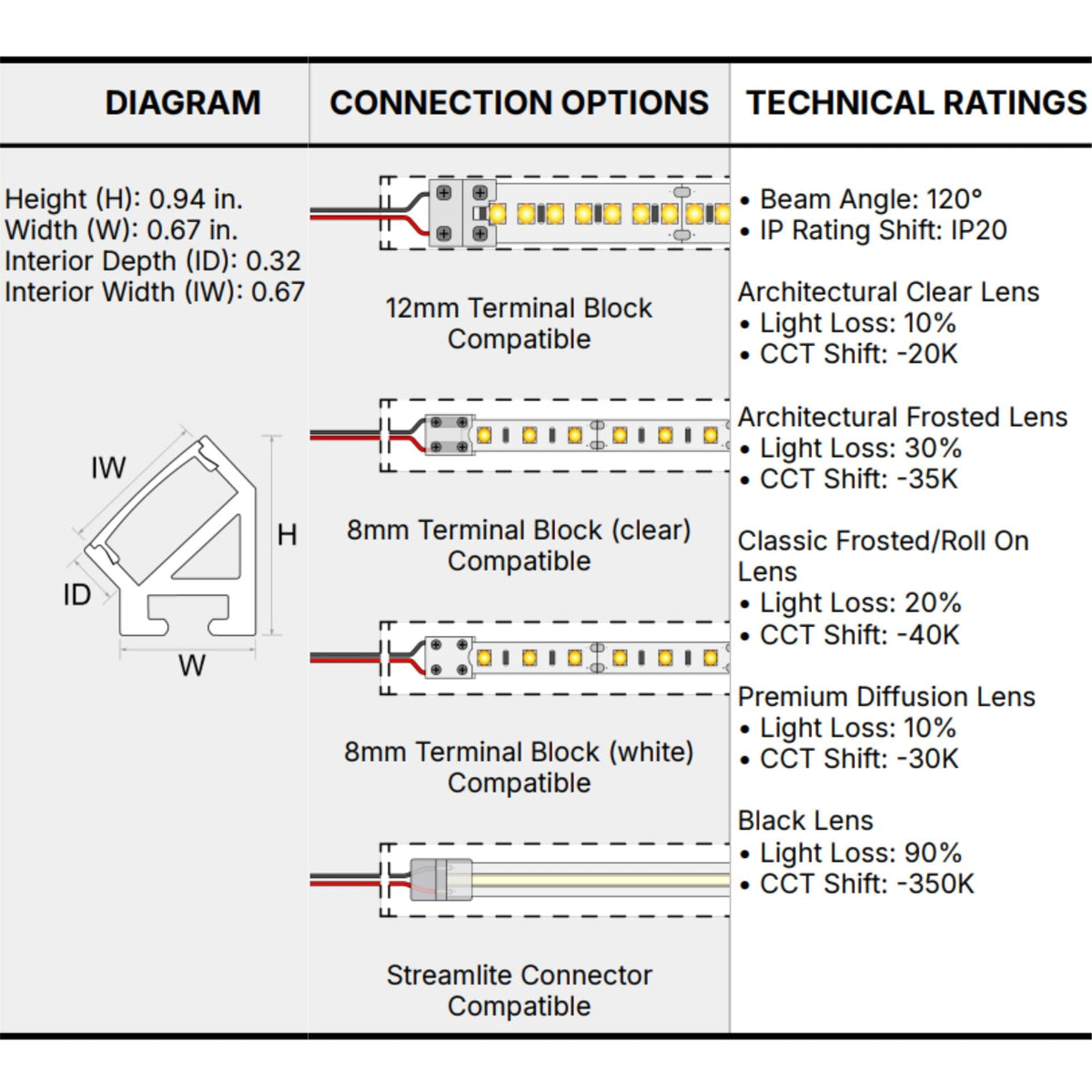

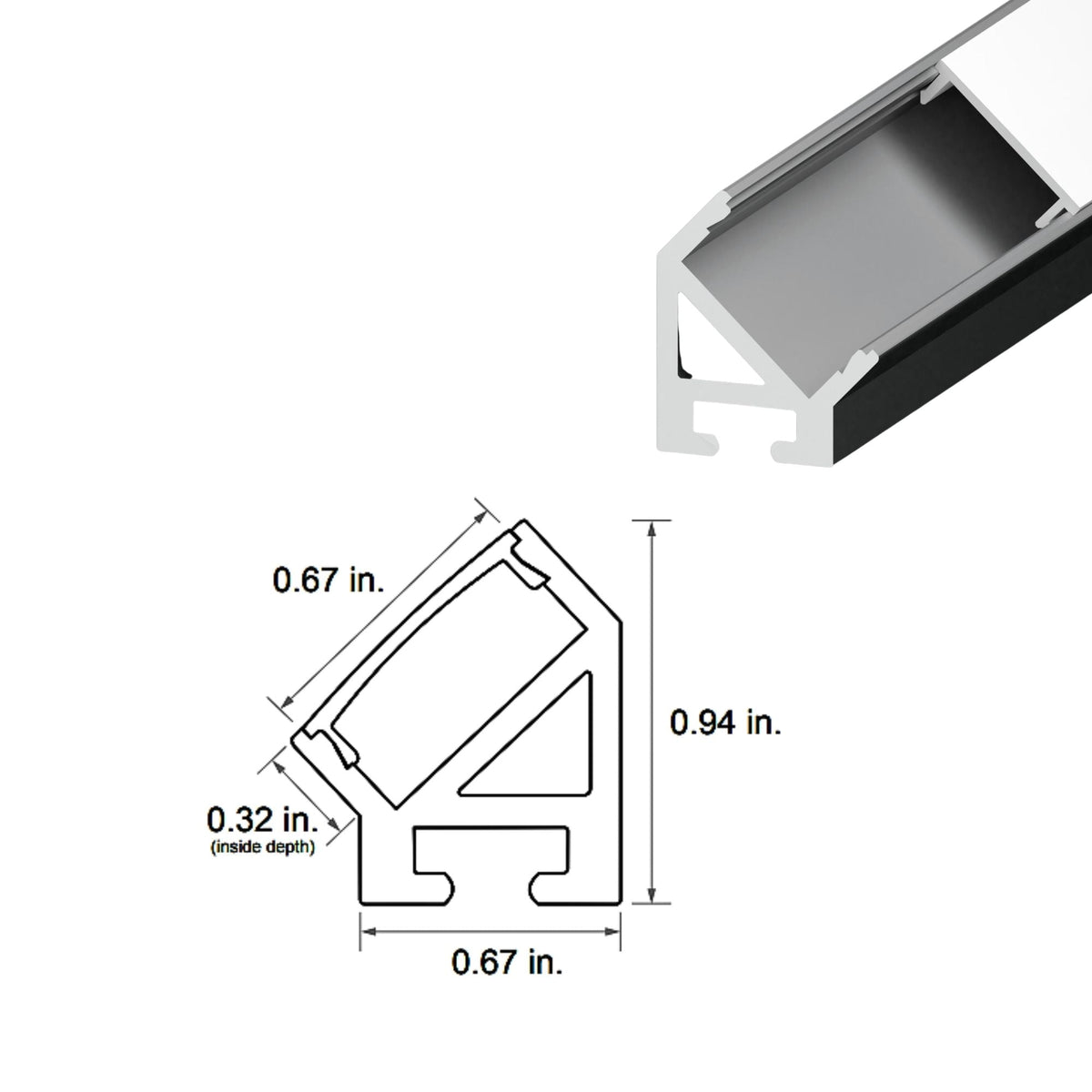

Each 45° channel features a height of 0.94 in., width of 0.67 in., and interior depth of 0.32 in. The angled profile is ideal for wall-grazing, cove lighting, and under-shelf accent applications across extended runs. The 96 in. length minimizes seams in long installations.

Lens & Light Performance

The Black Lens is engineered for maximum glare suppression, delivering approximately 90% light loss with a CCT shift of -350K. It is designed for applications where the tape light source must remain completely concealed and only a minimal, tightly controlled amount of light is emitted. The beam angle is 120°. Compatible with a wide range of Diode LED tape lights including BLAZE™, STREAMLITE™, VALENT®, and DAZZLE® series.

Connection & Compatibility

Compatible with 12mm Terminal Block connections and Streamlite Connectors. Works with both 8mm Terminal Block (clear and white) configurations. Suitable for use with UL-listed tape lights.

Where This Channel Works Best

• Applications requiring complete concealment of the tape light source
• Decorative cove and architectural accent lighting with glare control
• Hospitality and restaurant mood lighting
• Display and retail environments requiring focused, low-intensity illumination
• High-volume commercial and multi-unit residential installations

What's Included (per channel)

• 96 in. aluminum channel
• Black Lens
• 2 open end caps
• 2 closed end caps
• 4 mounting clips
