Diode LED 45° Channel Bundle — White, 96 in. with Architectural Clear Lens | Pack of 10

The Diode LED DI-CPCHB-45-CLT-96W-10 is a contractor pack of ten 96 in. white-finish 45° angled channel bundles, designed for large-scale architectural and accent lighting installations. Each industrial-grade extrusion features a sturdy angled profile that acts as a heat sink, extending the lifespan of your LED tape light. Paired with an Architectural Clear Lens, this pack delivers near-transparent light output across extended runs — ideal for commercial, hospitality, and high-volume residential projects with white-finish requirements.

Key Features

• Pack Quantity: 10 channel bundles per order.
• Length: 96 in. (8 ft.) white-finish channel per unit.
• Profile: 45° angled extrusion — sturdy, field-cuttable industrial profile.
• Finish: White powder-coat finish for seamless integration into light-colored environments.
• Lens: Architectural Clear Lens included per channel for near-transparent light diffusion.
• Heat Sink: Aluminum construction cools and prolongs LED tape light lifespan.
• Mounting: Compatible with Chromapath Surface, Vertical, Rotating, and Hanging mounts.
• Included Accessories (per channel): 96 in. white channel, Architectural Clear Lens, 4 surface mounting clips, 2 open end caps, 2 closed end caps.
• IP Rating: IP20 shift with lens installed.
• Warranty: 5-Year Limited Warranty.

Core Design & Profile

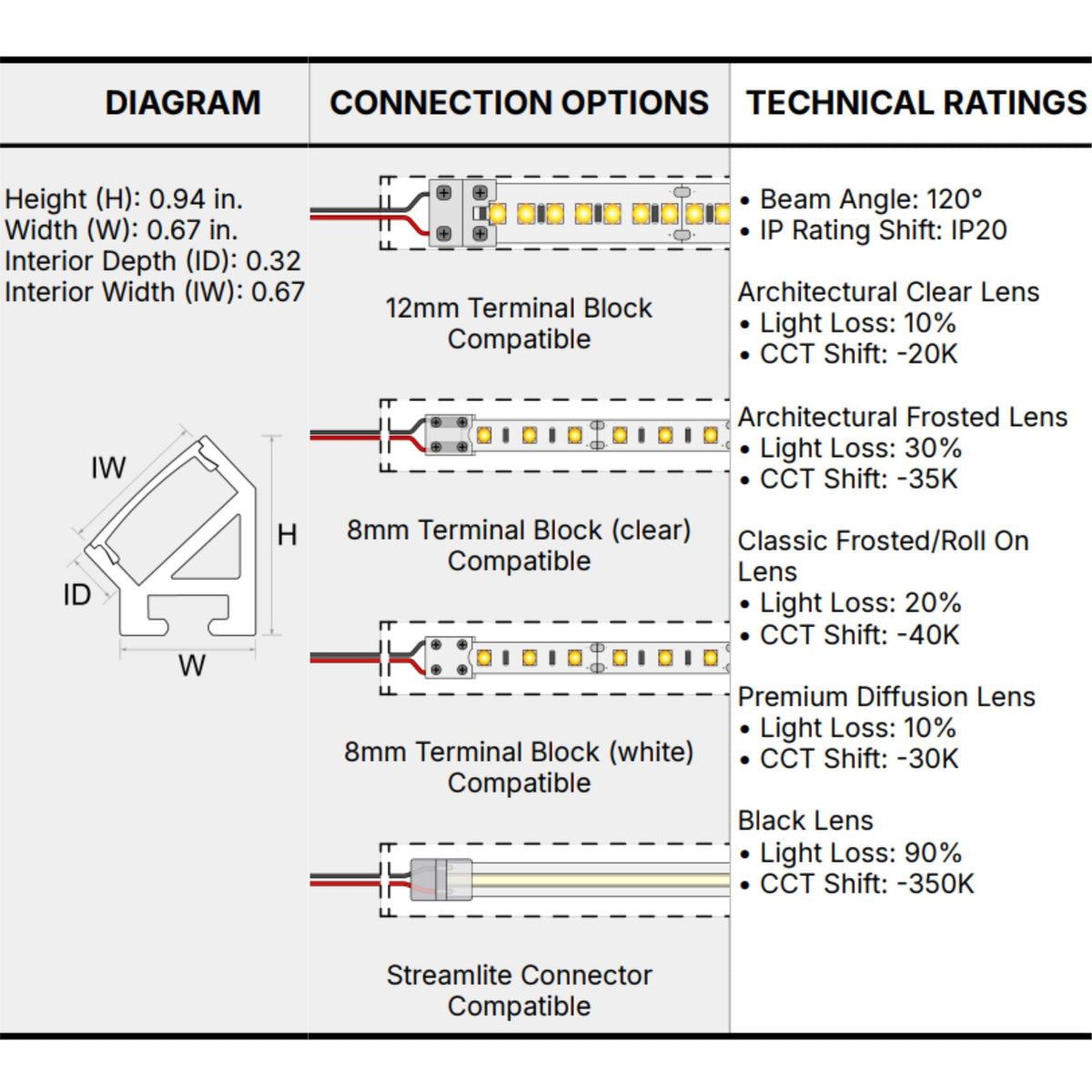

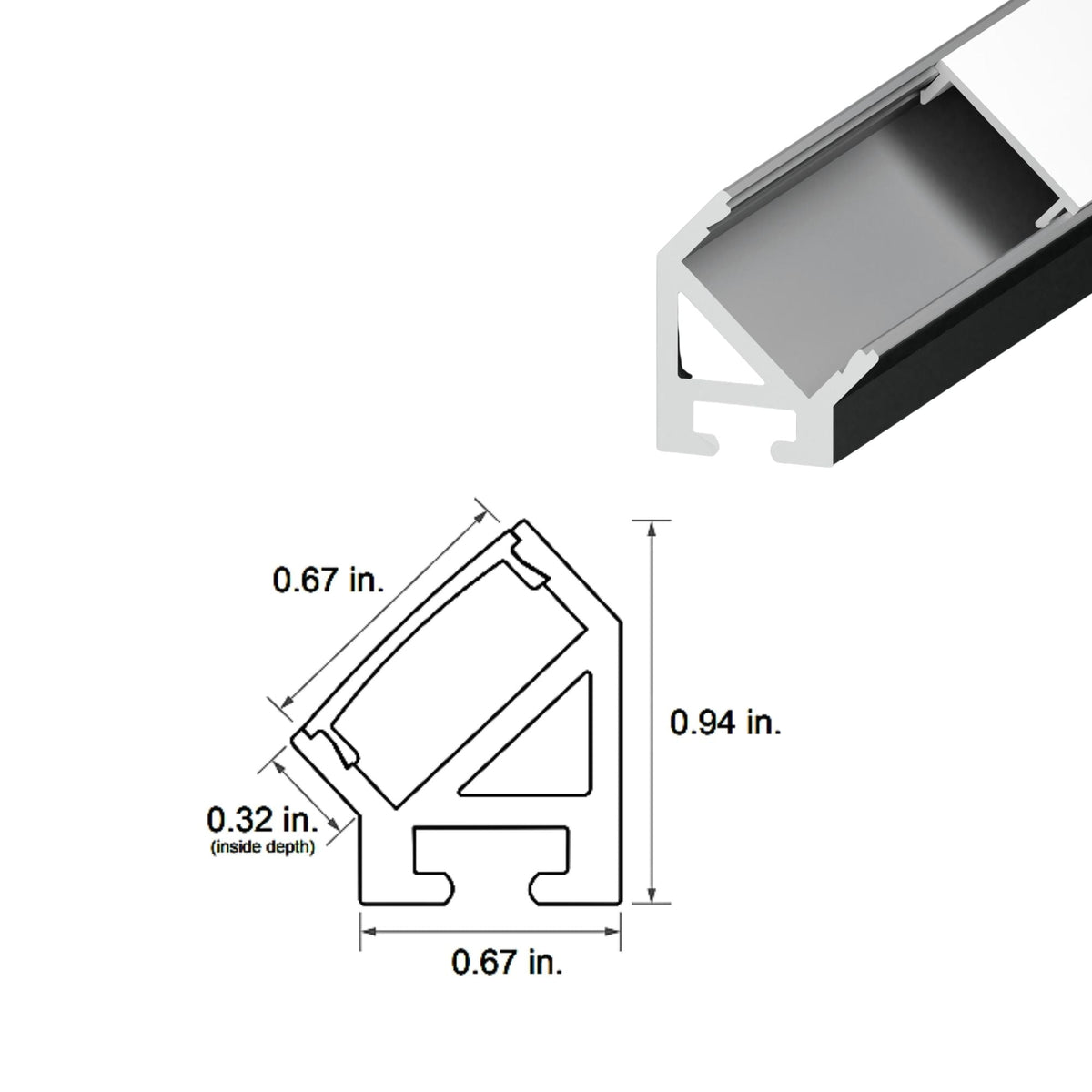

Each 45° channel features a height of 0.94 in., width of 0.67 in., and interior depth of 0.32 in. The white finish blends seamlessly into white ceilings, walls, and millwork. The 96 in. length minimizes seams in long installations.

Lens & Light Performance

The Architectural Clear Lens delivers a minimal light loss of approximately 10% with a CCT shift of -20K, preserving the natural color temperature of your tape light with a near-transparent appearance. The beam angle is 120°. Compatible with a wide range of Diode LED tape lights including BLAZE™, STREAMLITE™, VALENT®, and DAZZLE® series.

Connection & Compatibility

Compatible with 12mm Terminal Block connections and Streamlite Connectors. Works with both 8mm Terminal Block (clear and white) configurations. Suitable for use with UL-listed tape lights.

Where This Channel Works Best

• White-finish large-scale cove and wall-grazing accent lighting
• Commercial and hospitality lighting projects
• Extended under-shelf and cabinet lighting runs in white kitchens
• Architectural millwork and trim lighting
• High-volume residential and multi-unit installations

What's Included (per channel)

• 96 in. white channel
• Architectural Clear Lens
• 2 open end caps
• 2 closed end caps
• 4 surface mounting clips
