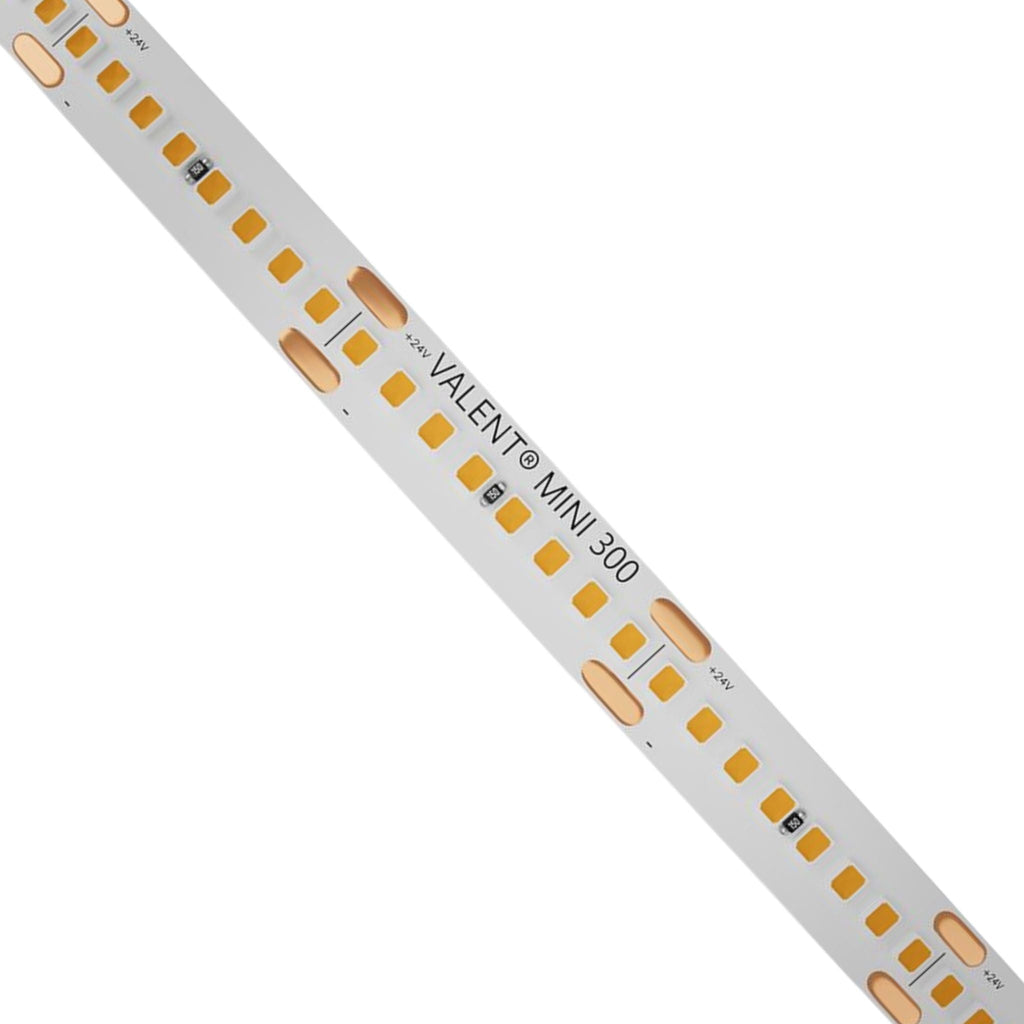

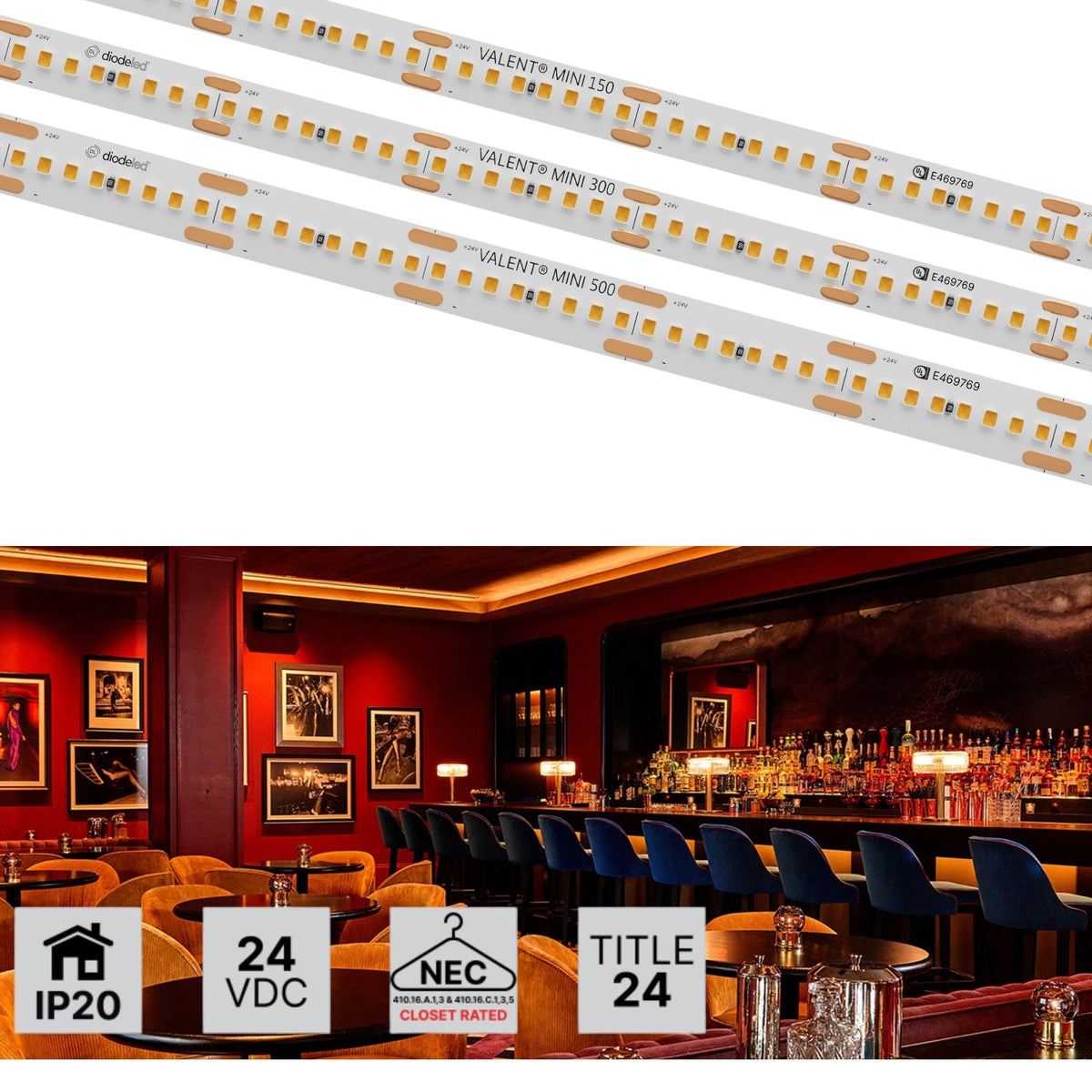

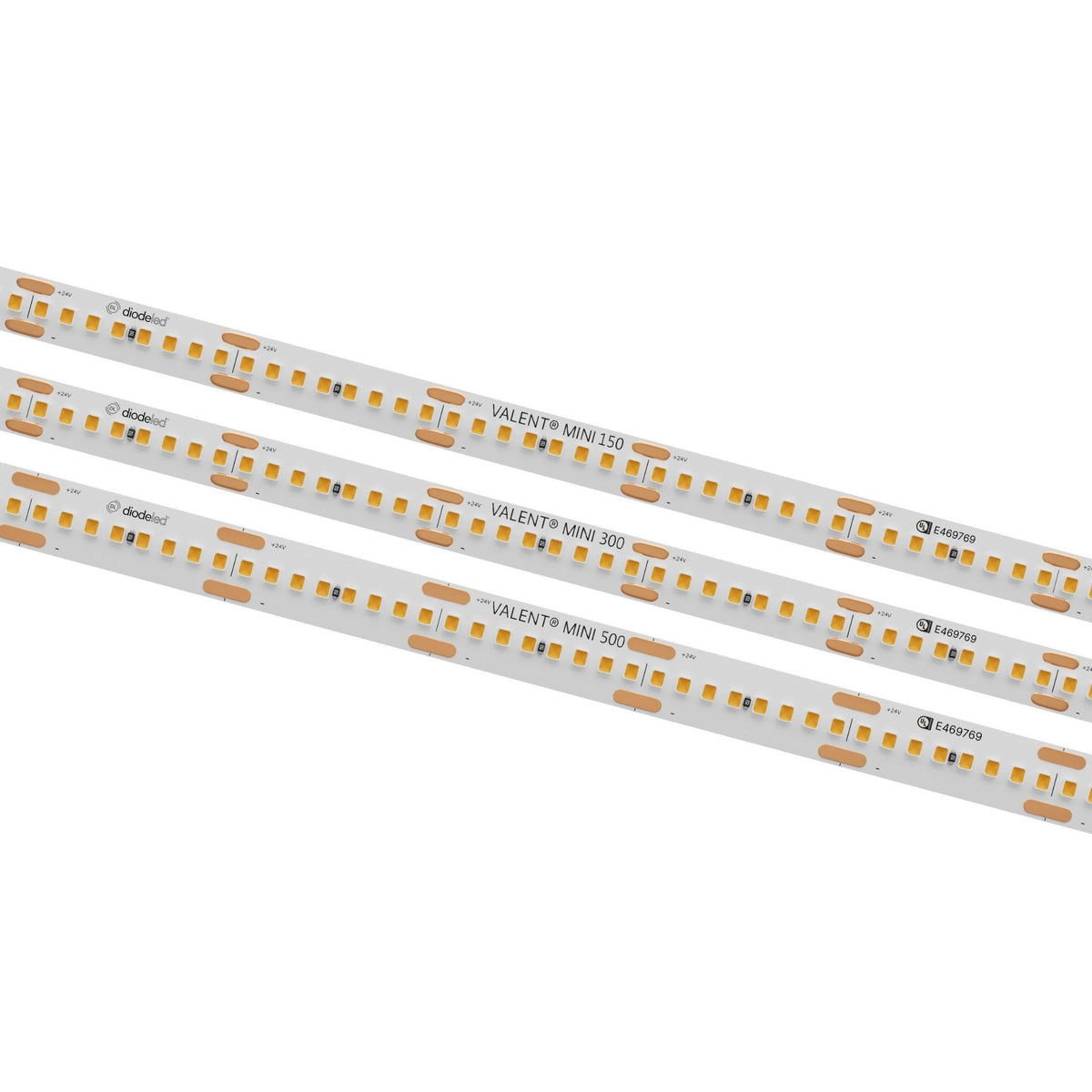

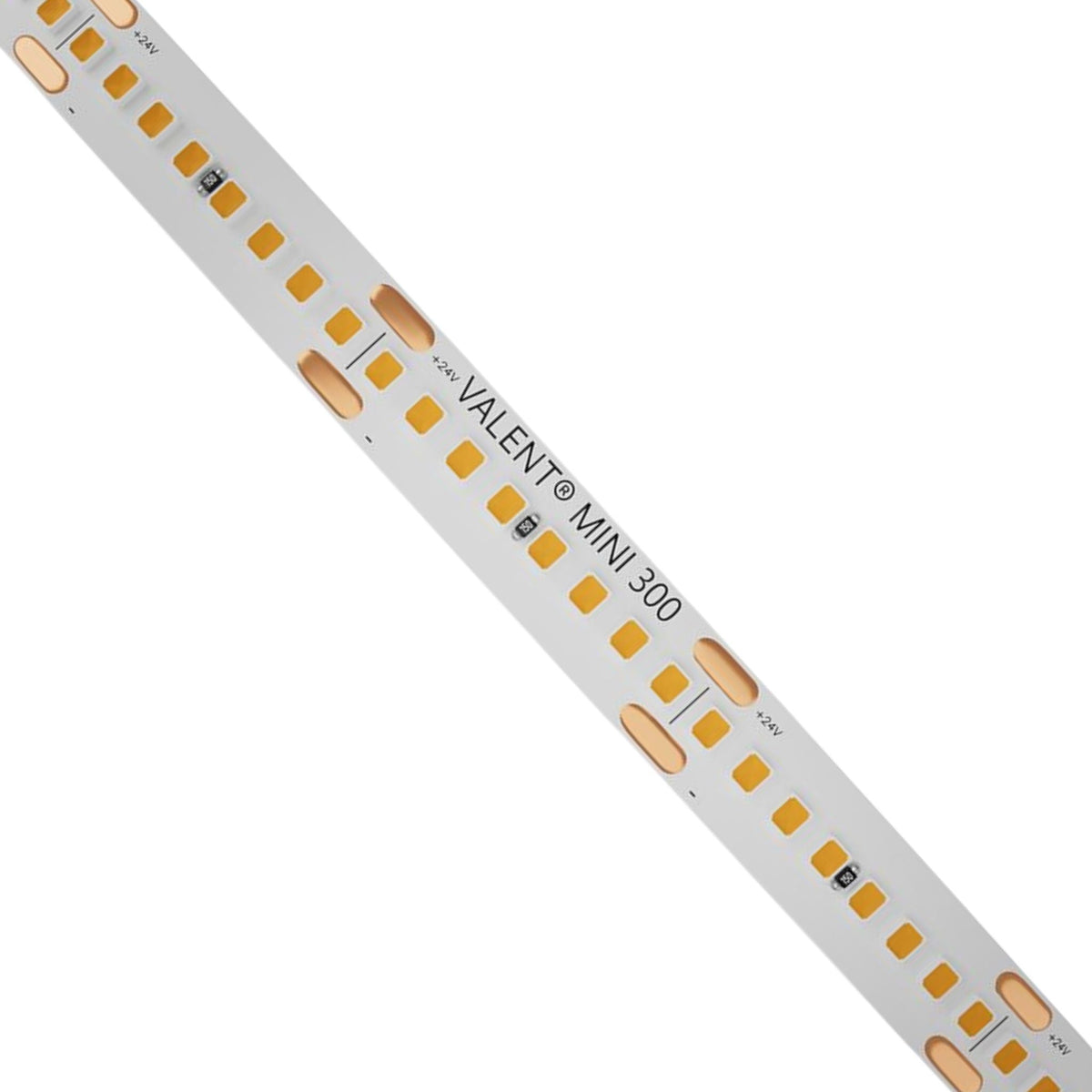

Diode LED VALENT® Mini 8mm — High-Density LED Tape Light, 24V

The Diode LED VALENT® Mini 8mm is a slim, high-density LED tape light designed for seamless, dot-free illumination in tight spaces. At just 0.31" (8mm) wide and 0.1" tall, it fits slim aluminum channels and millwork profiles where wider tape is impractical — while delivering dense, uninterrupted linear light across every inch when paired with a diffuser lens.

Available in two output tiers — 1.46W/ft (24V-VL8MN1, up to 220 lm/ft, 66ft max run) and 2.93W/ft (24V-VL8MN3, up to 450 lm/ft, 33ft max run) — with 88 LED chips per foot, 90+ CRI, and six CCT options from 2400K to 5000K. Runs on 24V DC, cuts every 1.09 in., and is backed by a 10-Year Limited Warranty with UL Listed 2108 certification.

Output by CCT — 8mm Models

• 2400K: 185 lm/ft (1.46W/ft) | 380 lm/ft (2.93W/ft)
• 2700K: 200 lm/ft (1.46W/ft) | 420 lm/ft (2.93W/ft)
• 3000K: 208 lm/ft (1.46W/ft) | 438 lm/ft (2.93W/ft)
• 3500K: 208 lm/ft (1.46W/ft) | 438 lm/ft (2.93W/ft)
• 4000K: 218 lm/ft (1.46W/ft) | 450 lm/ft (2.93W/ft)
• 5000K: 220 lm/ft (1.46W/ft) | 448 lm/ft (2.93W/ft)

Best Applications

• Slim aluminum channel and millwork reveal lighting
• Under-cabinet kitchen and pantry accent lighting

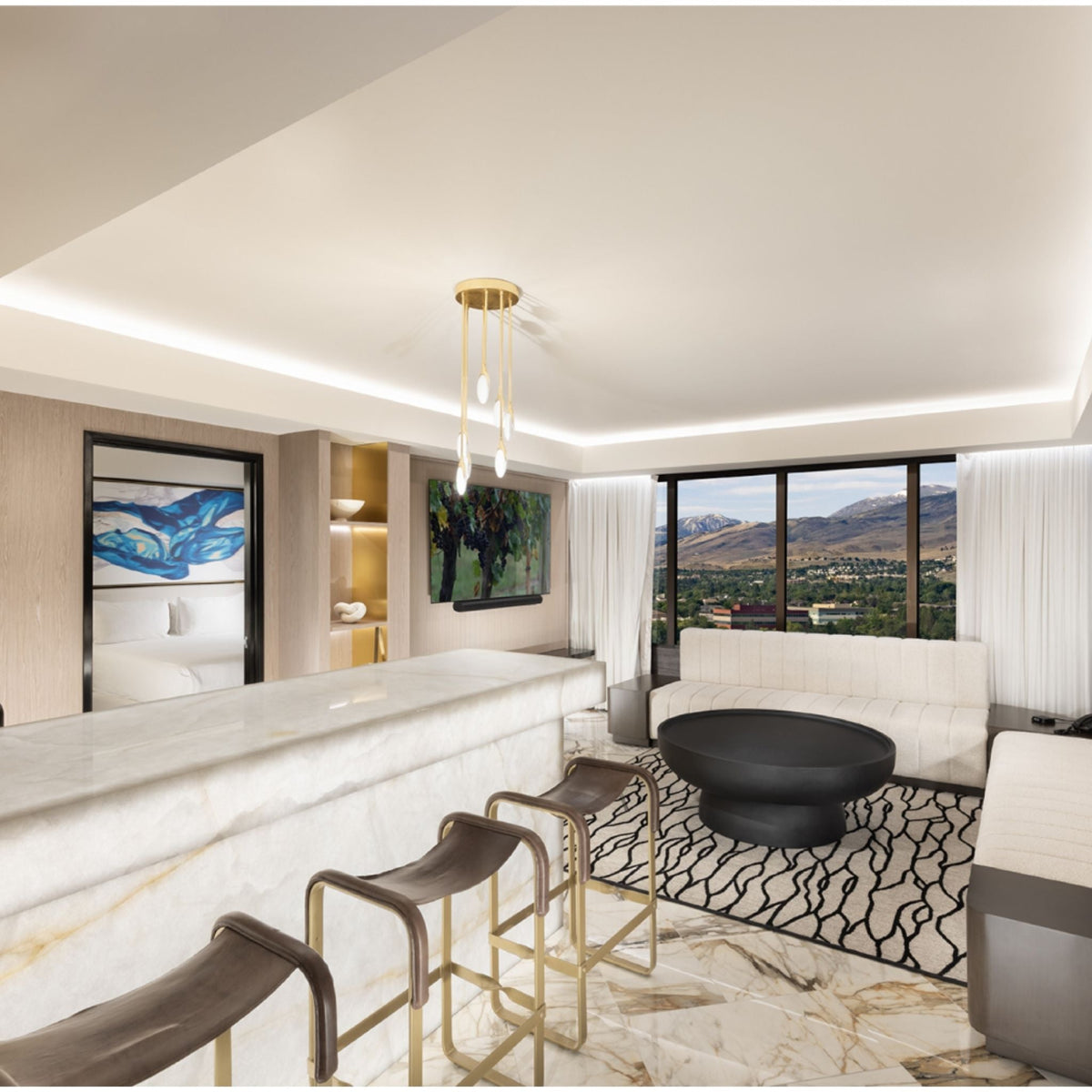

• Cove, soffit, and crown molding lighting
• Display case and retail shelf lighting
• Bathroom vanity and mirror lighting (IP20 damp rated)
• Architectural linear lighting where channel depth is limited

Key Features

• Slim 8mm Profile — 0.31" × 0.1" (W × H): Fits slim aluminum extrusions and tight channel profiles. Provides seamless, dot-free illumination when paired with a diffuser lens — no visible hotspots.
• Two Output Tiers: 1.46W/ft for low-profile accent lighting (max run 66ft) or 2.93W/ft for mid-output task and display applications (max run 33ft).
• 88 LED Chips/ft, 90+ CRI: High-density chip placement ensures uninterrupted linear output. 90+ CRI for accurate color rendering across all six CCT options.
• 1.09 in. Cut Points: Precise cut-to-length flexibility for exact-fit installations across all 8mm models.
• 24V DC, Dimmable: Requires a 24V DC Class 2 LED driver (sold separately). Compatible with standard 24V dimmers.
• UL Listed 2108 — Indoor & Damp Locations: Certified for dry and damp indoor use. >50,000-hour rated life (TM-21 / LM-80). 10-Year Limited Warranty.

Power & Driver Sizing

Requires a 24V DC Class 2 LED driver (sold separately). Formula: run length (ft) × W/ft ÷ 0.80 = minimum driver wattage.

• 1.46W/ft at 66ft max run: 66 × 1.46 ÷ 0.80 = 121W min — recommended ADPT-DRJ-192-24 (192W)
• 2.93W/ft at 33ft max run: 33 × 2.93 ÷ 0.80 = 121W min — recommended ADPT-DRJ-192-24 (192W)

What's Included

• 1× VALENT Mini 8mm LED Tape Light Reel (16ft or 100ft)
• 36 in. White Bare Lead — 20/2 AWG UL 2464 Wire with Strain Relief

Required — Sold Separately

• 24V DC Class 2 LED Driver — ADPT-DRJ-192-24 recommended for full-run installations
• Mounting Channel with diffuser lens (required for dot-free output)
• LED Dimmer — compatible with 24V DC driver
