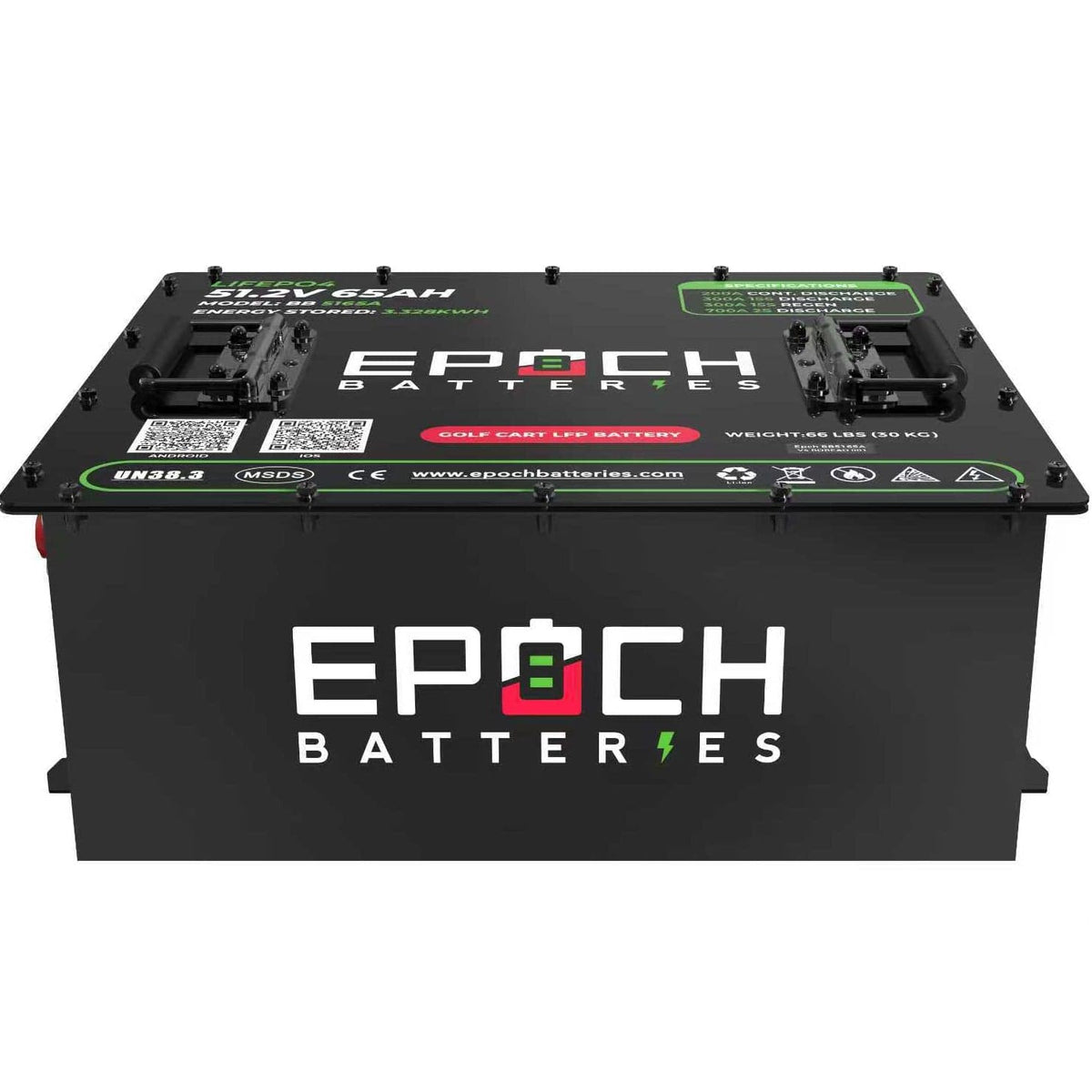

Epoch Batteries 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
£1,145.96
Sale price
£1,145.96
Regular price
Skip to product information
Epoch Batteries 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
£1,145.96
Sale price
£1,145.96
Regular price
Shipping calculated at checkout.
BB5165A-Kit-1
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Epoch LiMAX 48V 65Ah drop-in kit makes switching from lead-acid to lithium a lot easier. It includes the battery, charger, gauge, 12V converter, and mounting brackets in one package, so you’re not piecing the upgrade together one part at a time.
Key Features
-
Complete Drop-In Kit: Includes the charger, dashboard gauge, 12V converter, and mounting brackets for compatible Club Car, EZGO, and Yamaha models.
-
Strong 48V Performance: Delivers 65Ah and 3.33kWh of stored energy with up to 700A of peak discharge for acceleration and heavier short-term loads.
-
Bluetooth & IP67 Protection: Monitor battery status from your phone while the sealed enclosure helps keep dust and water out.
The LiMAX uses a 1P16S LiFePO4 configuration with a 51.2V nominal output, making it a clean replacement option for compatible 48V golf carts. Continuous discharge is rated at 200A, with extra headroom available when the cart needs a quick burst of power.
It’s built for regular outdoor use too, with an IP67 enclosure and a discharge temperature range from -20°C to 60°C. Bluetooth monitoring and the included dashboard gauge make it easy to keep an eye on the battery without guessing how much charge is left.
Up to two batteries can be connected in parallel if more capacity is needed later. With 3,500+ rated cycles and an 11-year manufacturer warranty, it’s a straightforward lithium upgrade built for the long haul.
Technical Specification
| ItemSpecification | |
|---|---|
| Model | BB5165A-Kit-1 |
| Series | LiMAX Series |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 65Ah |
| Energy Stored | 3.33kWh |
| Cell Configuration | 1P16S |
| Max Charge Voltage | 58.4V |
| Operating Voltage Range | 40V - 58.4V |
| Max Continuous Discharge | 200A |
| Peak Discharge | 300A (15s) / 700A (2s) |
| Max Continuous Charge | 100A |
| Peak Charge | 300A (15s) |
| Parallel Connections | Max 2 |
| Charge Temp Range | 0°C to 55°C |
| Discharge Temp Range | -20°C to 60°C |
| Weight | 66 lbs |
| Dimensions | 17.20 x 14.33 x 7.48 in |
| IP Rating | IP67 |
| Cycle Life | 3,500+ cycles |
| Included Accessories | Charger, Gauge, 12V Converter, Mounting Brackets |
| Warranty | 11-Year Manufacturer |
