Description

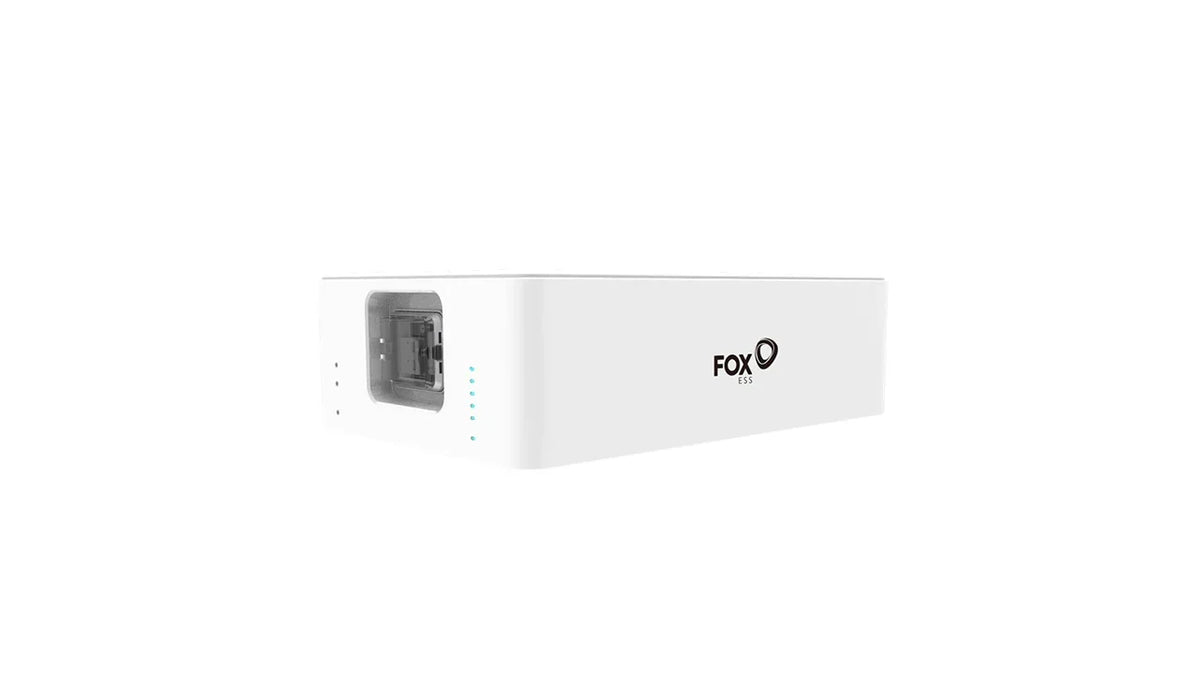

Revolutionize Your Energy Storage with Fox ESS Energy Cube HV EC4300 from 8.29kWh to 29.03kWh
The Fox ESS Energy Cube HV EC4300, available in Master and Slave configurations, is a cutting-edge 4.145kWh high-voltage battery pack featuring ECS high-performance, scalable modules. With a modular design offering maximum flexibility, this battery system requires a minimum of 2 modules (Master + Slave) to function and supports up to 7 modules in a stack, providing a robust storage capacity of 29.03kWh (1 Master and 6 Slaves). Enjoy easy installation through a plug-and-play solution, saving valuable time for installers.
Key Features:
- The Fox ESS EC4300 battery is meticulously crafted for seamless integration with Fox HV AC1 3.7kW, and Fox HV AC1 5.0kW AC Coupled Charger Inverters, or Fox H1 3.7kW, Fox H1 5.0kW, and Fox H1 6.0kW Hybrid Inverters.
- 95% charge/discharge efficiency.
- 90% Depth of Discharge.
- Wide Temperature Tolerance.
- Easy Installation.
- ≥6000 Life Cycles.
- CAN/RS485 Communication.
- Low Voltage.
Experience Unparalleled Performance with Fox ESS Battery Storage Solutions
Fox ESS Battery Storage Solutions redefine industry standards by offering top-notch performance at competitive prices. Introducing the next generation of high-voltage batteries, Fox batteries come equipped with advanced features to ensure unmatched reliability.
Swift Delivery to Meet Your Energy Needs
Experience the future of energy storage with Fox ESS Energy Cube HV EC4300. Benefit from a 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
| FOX ESS HV EC4300 (Master) & EC4300 (Slave) 4.14KWH BATTERY PACKS |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Nominal Capacity: 4.145kWh |
| Nominal Voltage with Npcs Slave Batteries: 1pc - 115.2V; 2 pcs - 172.8V; 3pcs - 230.4V; 4pcs - 288.0V; 5pcs - 345.6V; 6pcs - 403.2V |
| Operating Voltage with Npcs Slave Batteries: 1pc - 97.2-131.4V; 2pcs - 145.8-197.1; 3pcs - 194.4-262.8V; 4pcs - 243-328.5V; 5pcs - 291.6-394.2V; 6pcs - 340.2-459.9V |
| Recommended Discharge Current: 35A |
| Max. Charge/Discharge Current: 50A |
| Peak Discharge Current: 65A @30sec |
| Battery Pack Round-Trip Efficiency: >95% |
| Depth of Discharge: 90% |
| Charge/Discharge Efficiency: >98% |
| Cycle Life: >6000* |
| Communication: CAN |
| Installation Location: Outdoor/Indoor (Standard) |
| Ingress Protection: IP65 |
| Operating Temperature: -10 ... +55°C |
| Storage Temperature: -20 ... +55°C |
| Cooling Method: Natural Convection |
| Humidity: 0% to 100% (No Condensing) |
| Weight with Npcs Slave Batteries: 1pc - 75.6kg; 2pcs - 112.5kg; 3pcs - 148.3kg; 4pcs - 184.7kg; 5pcs - 221kg; 6pcs - 257.4kg |
| Size (W*H*D) with Npcs Slave Batteries: 1pc - 570*350*380mm; 2pcs - 570*470*380mm ; 3pcs - 570*590*380mm; 4pcs - 570*710*380mm; 5pcs - 570*830*380mm; 6pcs - 570*950*3806mm |
| Safety: IEC 62619 |
| *1 25C, @90% DOD, 0.5C charging/discharging |
In the Box:
- 1 X Fox ECS HV EC4300 (Master) 4.145kWh Solar Battery,
- 1...6 X Fox ECS HV EC4300 (Slave) 4.15kWh Solar Battery
- ECS EC4100 (Master) & EC4100 (Slave) User's Manual.
