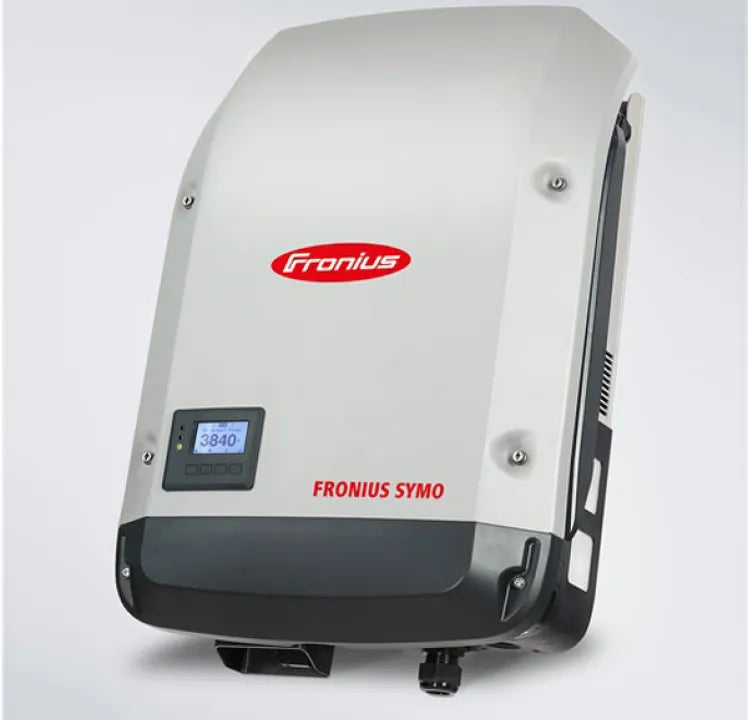

Fronius 15.0kW 208 VAC Symo Lite Inverter | 3-Phase
£2,998.45
Sale price
£2,998.45
Regular price
Skip to product information
Fronius 15.0kW 208 VAC Symo Lite Inverter | 3-Phase
£2,998.45
Sale price
£2,998.45
Regular price
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Power your commercial solar project with the Fronius Symo 15.0-3 208 three-phase inverter. Its single high-current MPPT and rugged NEMA 4X build ensure reliable, field-ready performance.
Key Features
- High Output: Delivers up to 15,000VA of continuous output power at 208V.
- Wide Input Range: Operates across a 325-1,000V range for flexible string design.
- High Efficiency: Achieves up to 97.3% maximum efficiency for strong energy harvest.
- Weatherproof Build: NEMA 4X rated for indoor and outdoor installation at any tilt angle.
- Smart Connectivity: Wi-Fi, Ethernet, and USB options for remote monitoring and updates.
This inverter uses a single MPPT tracker with a 325-850V MPP voltage range, recommended for 12.0-19.5kWp of PV power. Its transformerless topology and variable-speed fan keep operation efficient.
Designed for flexibility, the inverter operates across a wide -40°F to 140°F range with SnapINverter mounting for easy installation. It's suited for demanding commercial rooftop and ground-mount projects.
Whether replacing an older PC board or starting a new install, this inverter is backed by comprehensive protections including AFCI, DC disconnect, and ground fault monitoring. It meets UL 1741 and NEC 2017 standards.
Technical Specification
| Item | Specification |
|---|---|
| Model | Symo 15.0-3 208 |
| Max Output Power | 15,000VA |
| Recommended PV Power | 12.0 - 19.5 kWp |
| Nominal Input Voltage | 325V |
| Operating Voltage Range | 325 - 1000V |
| MPP Voltage Range | 325 - 850V |
| Max Input Voltage | 1000V |
| Number of MPPT | 1 |
| Max Continuous Output Current | 41.6A |
| OCPD/AC Breaker Size | 60.0A |
| Total Harmonic Distortion | <3.5% |
| Max Efficiency | 97.3% |
| CEC Efficiency | 96.5% |
| Weight | 91.9 lbs |
| Dimensions | 20.1 x 28.5 x 8.9 in |
| Protection Class | NEMA 4X |
| Cooling | Variable Speed Fan |
| Ambient Operating Temp | -40°F to 140°F |
| Certifications | UL 1741, UL1998, IEEE 1547, NEC 2017 Article 690 |
