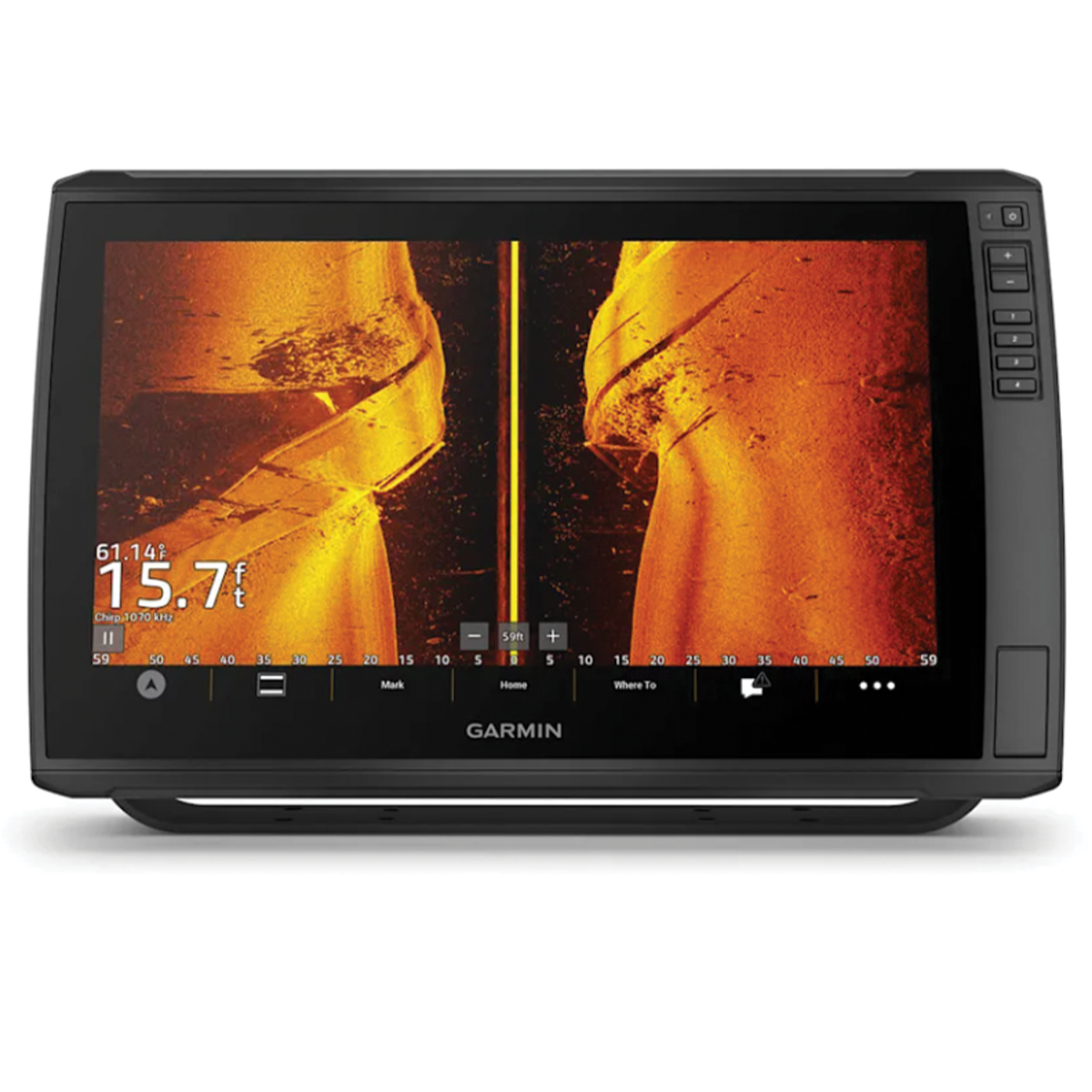

Garmin EchoMap 166SV UHD2 (With Transducer)
EchoMap UHD2 166SV w/GT56 Transducer (010-03386-01)
£1,011,142.21
Sale price
£1,011,142.21
Regular price
Skip to product information
Garmin EchoMap 166SV UHD2 (With Transducer)
£1,011,142.21
Sale price
£1,011,142.21
Regular price
Shipping calculated at checkout.
010-03386-01
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
SEE BIGGER CATCHES ON A BIGGER SCREEN
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
| Dimension | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
|---|---|
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | FHD, IPS |
| Display Size | 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards |
|---|---|
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Built-in Maps | |
| Built-in Auto Guidance+ | yes (see Additional) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Tide tables | yes (see Additional) |
Electrical Features | |
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
Sonar Features | |
| Displays sonar | |
|---|---|
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
