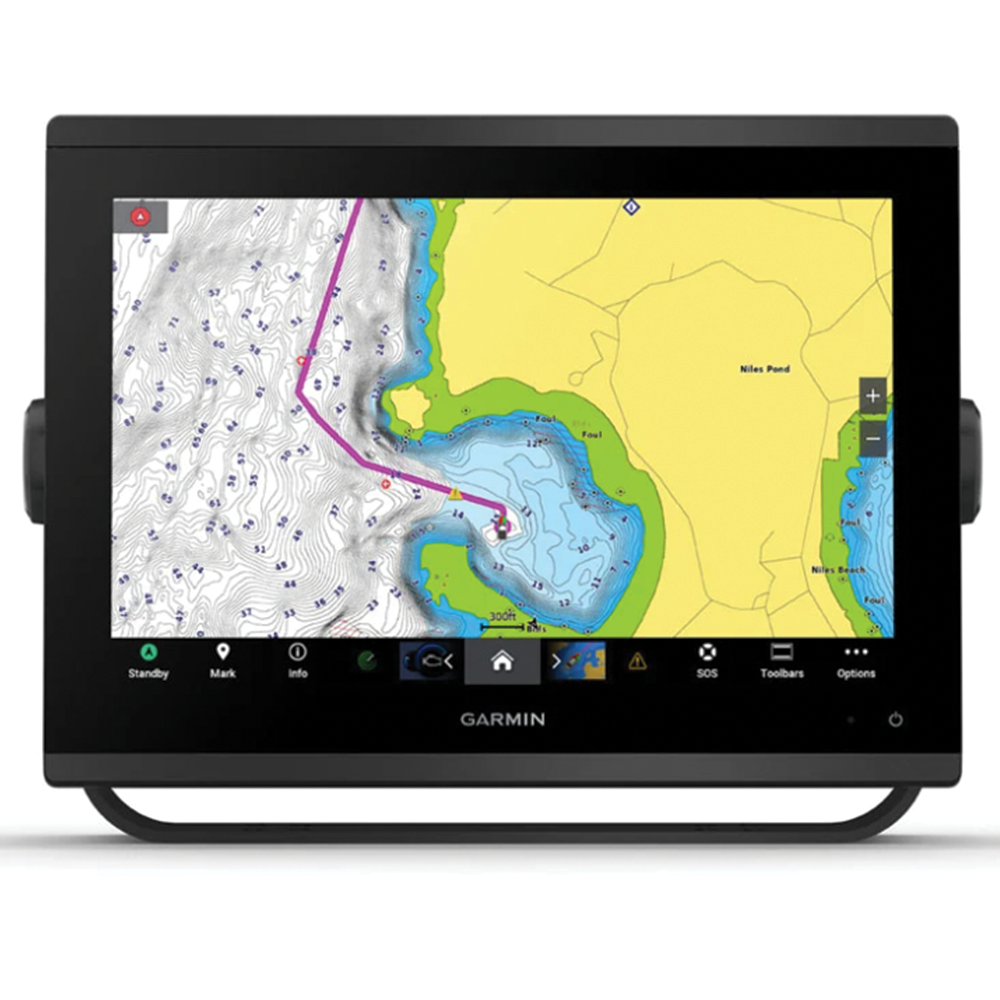

Garmin GPSMAP 1243XSV (No Transducer)
GPSMAP 1243xsv (12" Display No Transducer)
£653,028.64
Sale price
£653,028.64
Regular price
Skip to product information
Garmin GPSMAP 1243XSV (No Transducer)
£653,028.64
Sale price
£653,028.64
Regular price
Shipping calculated at checkout.
010-02367-61
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
- GPSMAP 1243xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Physical & Performance
| Display Size | 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| Power Input | 10 to 32 Vdc |
| Display resolution | 1280 x 800 pixels |
| GPS | Yes |
| Dimension | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
| Receiver | 10 Hz |
| Waterproof | IPX7 |
| Weight | 6.6 lbs (3.0 kg) |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display Type | WXGA |
Maps & Navigation
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards | 2 microSD cards (back of unit) |
| Garmin Navionics+ Inland & Coastal | Yes |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
Features
| Waypoints | 5000 |
| Sailing Features | Yes |
| NMEA 0183 Compatible | Yes |
| Has built-in receiver | Yes |
| USB ports | Yes |
| TOPO | Yes |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| DSC | Yes |
| Touchscreen | Yes |
| LakeVü g3 Ultra | No |
| NMEA 2000 Compatible | Yes |
| ActiveCaptain® compatible | yes |
| Typical current draw at 12 Vdc | 1.68 A |
| NMEA 2000® ports | 1 |
| Tide tables | Yes |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | Yes |
| Garmin Marine Network Ports | 2 |
| LakeVü g3 | No |
| Supports WAAS | Yes |
| GSD Black Box Sonar Support | Yes |
| Maximum current draw at 12 Vdc | 3.56 A |
| Smart Mode Compatible | Yes |
| Built-in Auto Guidance | No |
| Maximum power usage at 10 Vdc | 43.0W |
| BlueChart g3 | No |
| Standard Mapping | Yes |
| LakeVu (inland) | No |
| Built-in Auto Guidance+ | Yes |
| Displays sonar | Yes |
| ANT+ (Connectivity) | Yes |
| GCV Black Box Sonar Support | Yes |
| BNC external GPS antenna port | Yes |
| Connections NMEA0183 Input Ports | 1 |
| Spoken audio alerts | Yes |
| BlueChart g3 Vision | No |
| Garmin Wi-Fi network (local connection) | Yes |
| J1939 ports | 1 |
| Input | Touchscreen |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH® pairing | Yes |
| AIS | Yes |
| Video output ports | 1 HDMI |
| Raster chart support | Yes |
| NMEA 0183 input (Tx) ports | 1 |
| OneHelm support | Yes |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| Power output | 1 kW |
| 12-pin transducer ports | 1 |
| BlueChart (coastal) | No |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Video input ports | 1 (BNC composite) |
