Structural Eaves for Lean-To Roofs

(Choice of length and colour)

Part of Heavy Duty Self-Supporting Roof System

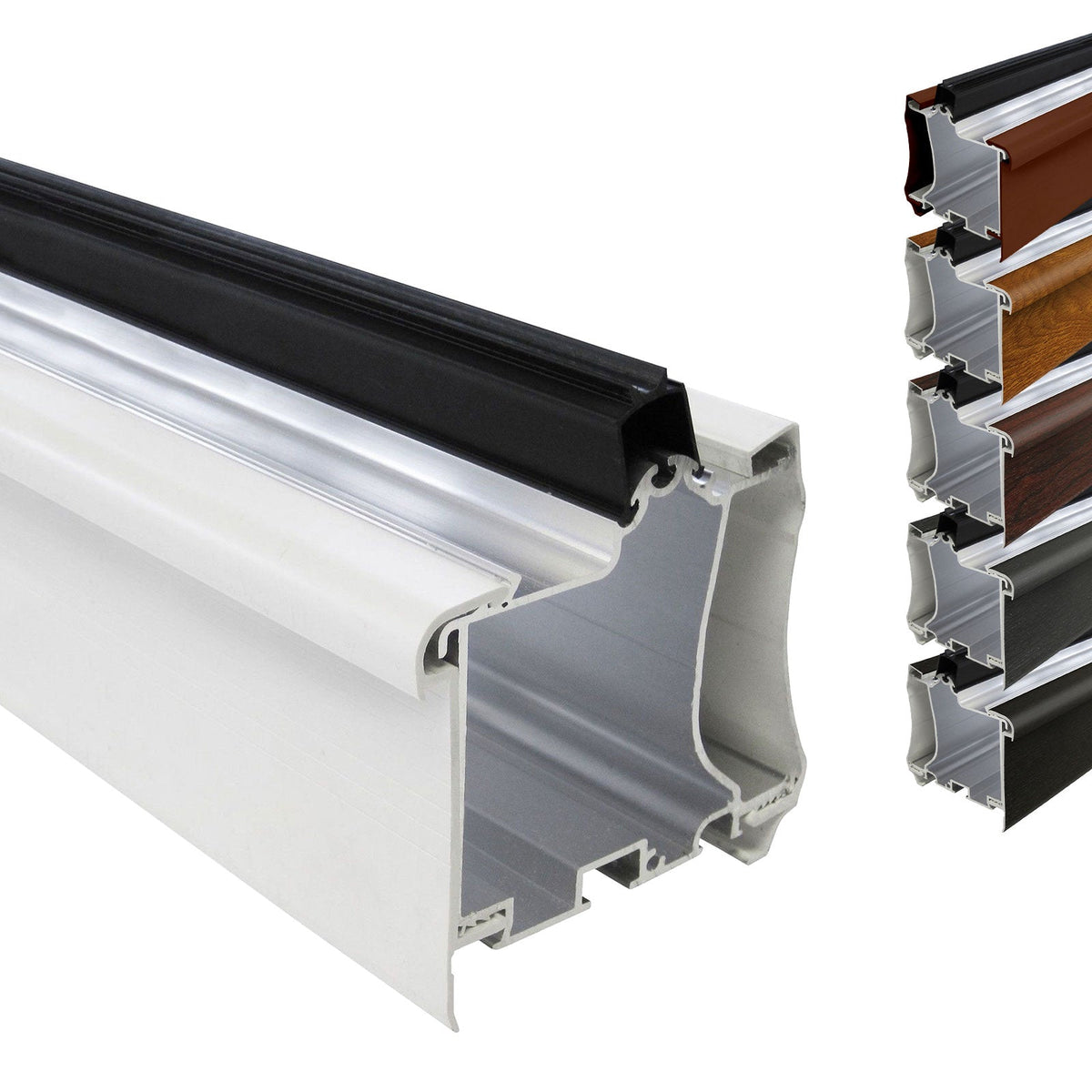

Strong extruded aluminium section for lean-to roof eaves support. Features glazing support trim, interior and exterior uPVC cladding and end covers.

The whole Heavy Duty Self-Supporting Roof System is flexible and easy to use and can span 4m unpupported without cross bearers. Whatismore, it can be used with polycarbonate and glass.

Features & Benefits

• Long-Life Durability - strong aluminium extrusion
• Maintenance Free - no preparation or painting required
• Excellent Weather Proofing - support trim has co-extruded gaskets
• Polycarbonate or Glass - unlike others, this system can be used with glass

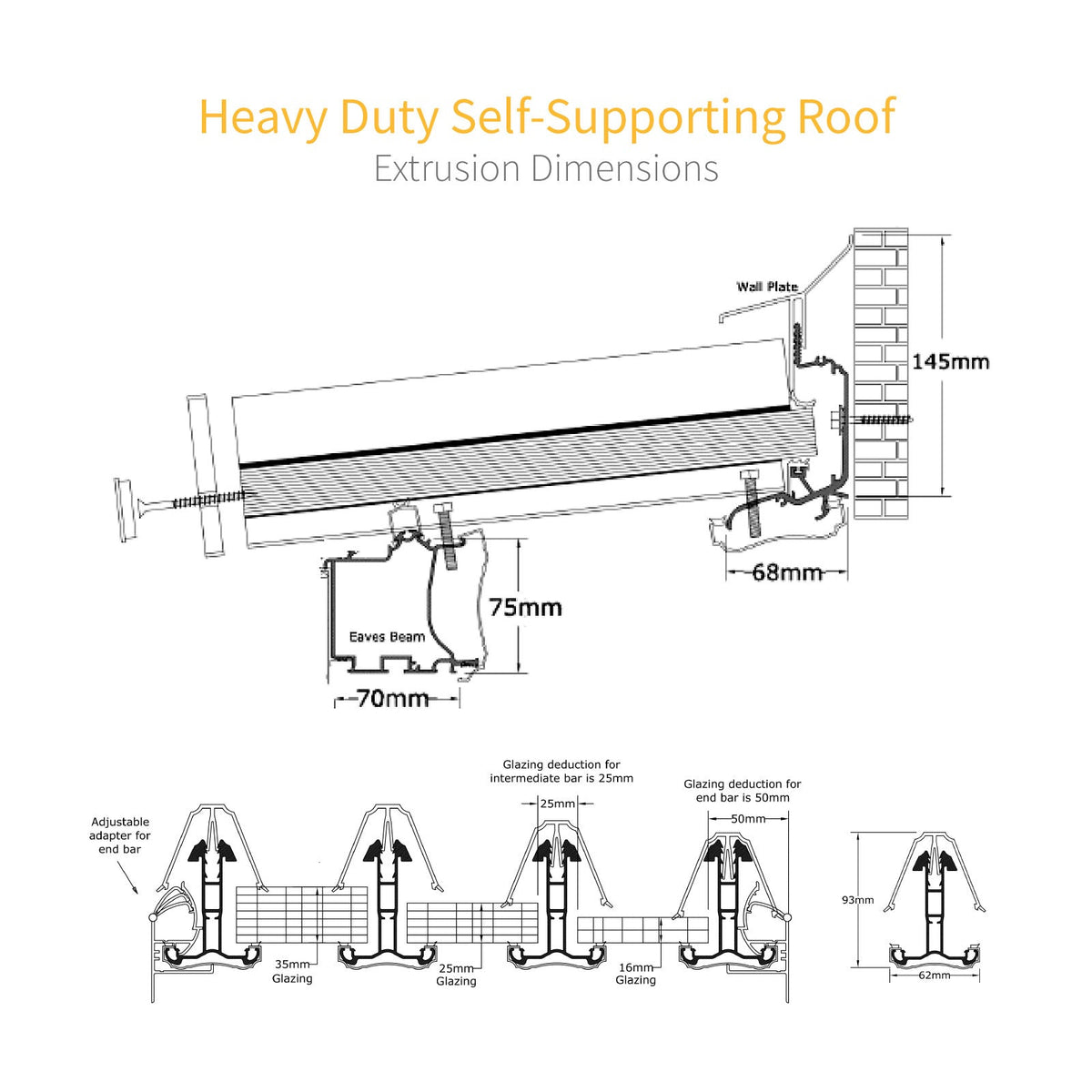

• Choice of Thickness - locking points for 16, 25, 32 and 35mm panels
• Flexibility of Use - can be pitched from 5° upwards
• Ease of Fitting - support trim, and cladding simply click into place.

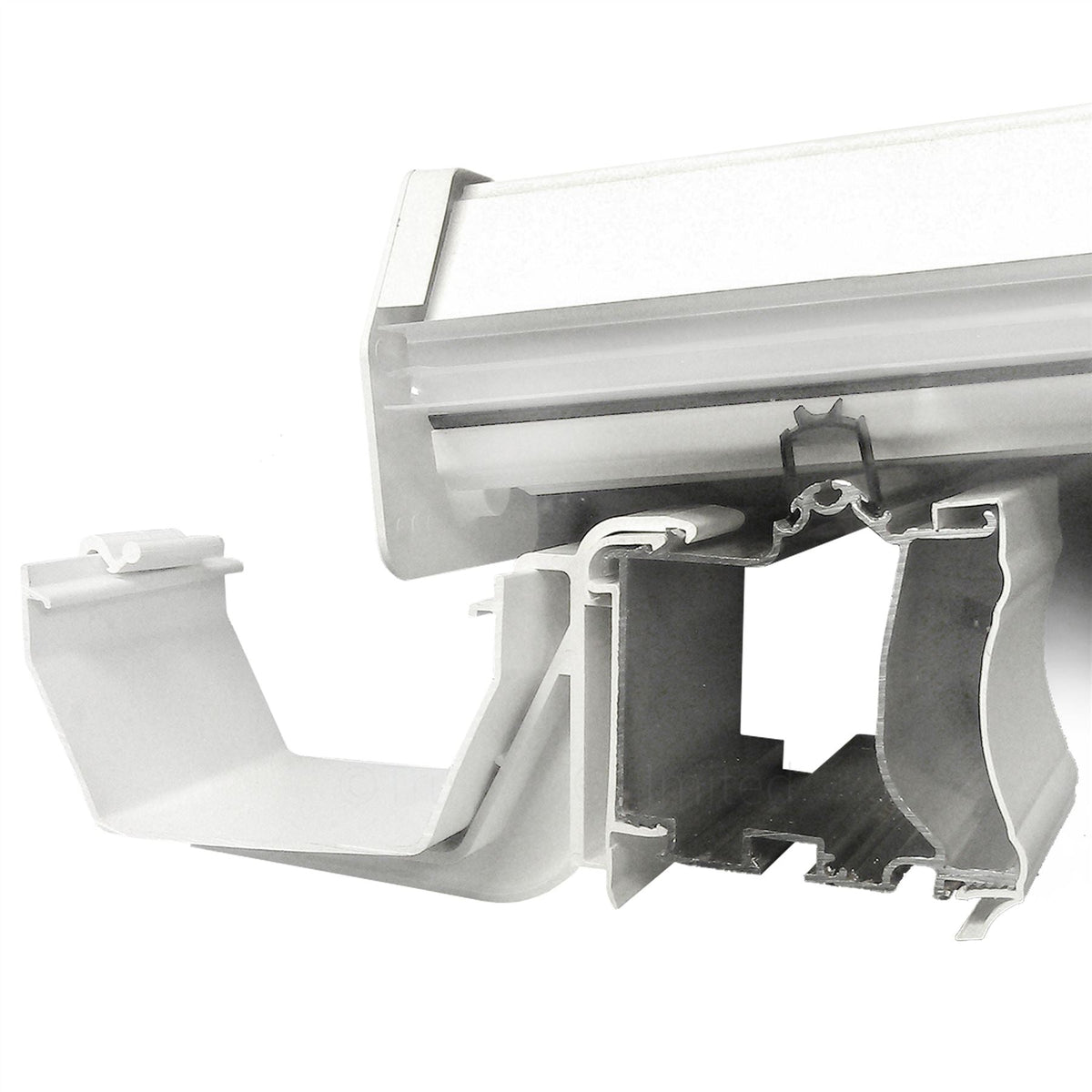

• Integral Gutter System - optional gutter system just clicks securely in place
• Thermally Broken - reduces heat transfer and cuts down on condensation

Suitable for a variety of applications, including lean-tos, conservatory roofs, canopies and car ports.

Complete self-supporting roof system

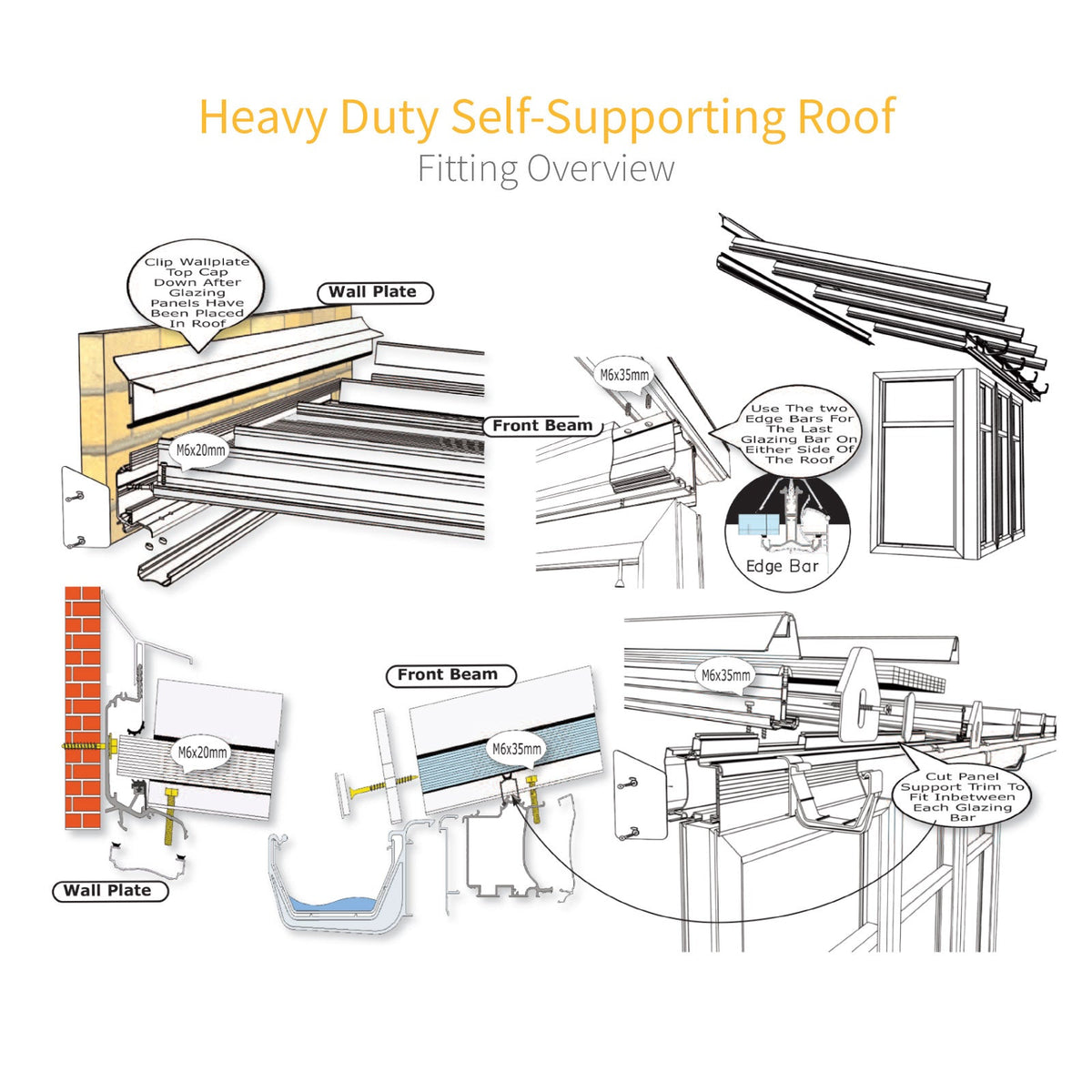

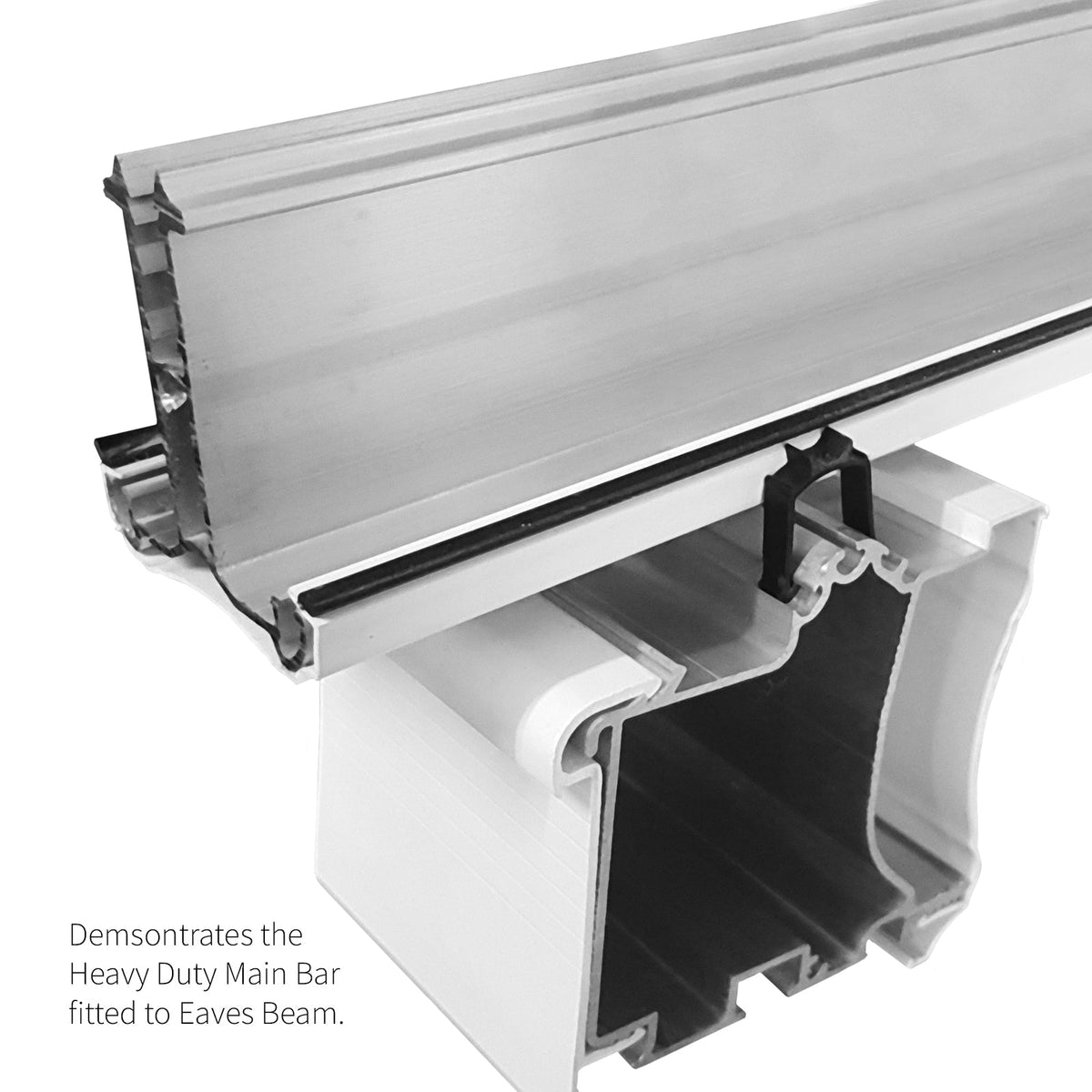

The range includes Wall Plate for securing glazing bars to house wall, structural Eaves Beam for the low end, standard Main Bar for use as an intermediate between in-line sheets, Gable End Bar for exposed end of lean-to and Wall Bar for abutting a wall. The Wall Bar is the standard Main Bar with separate Flashing Trim.
