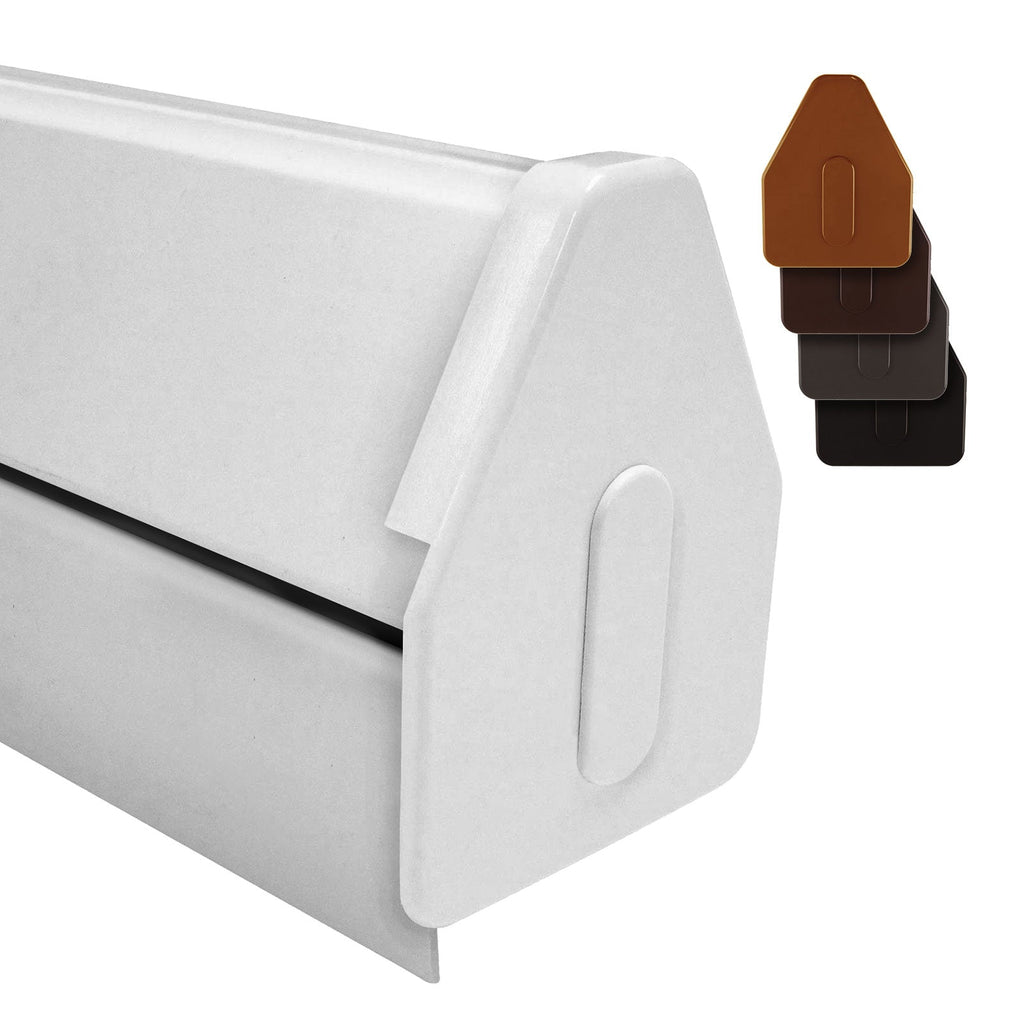

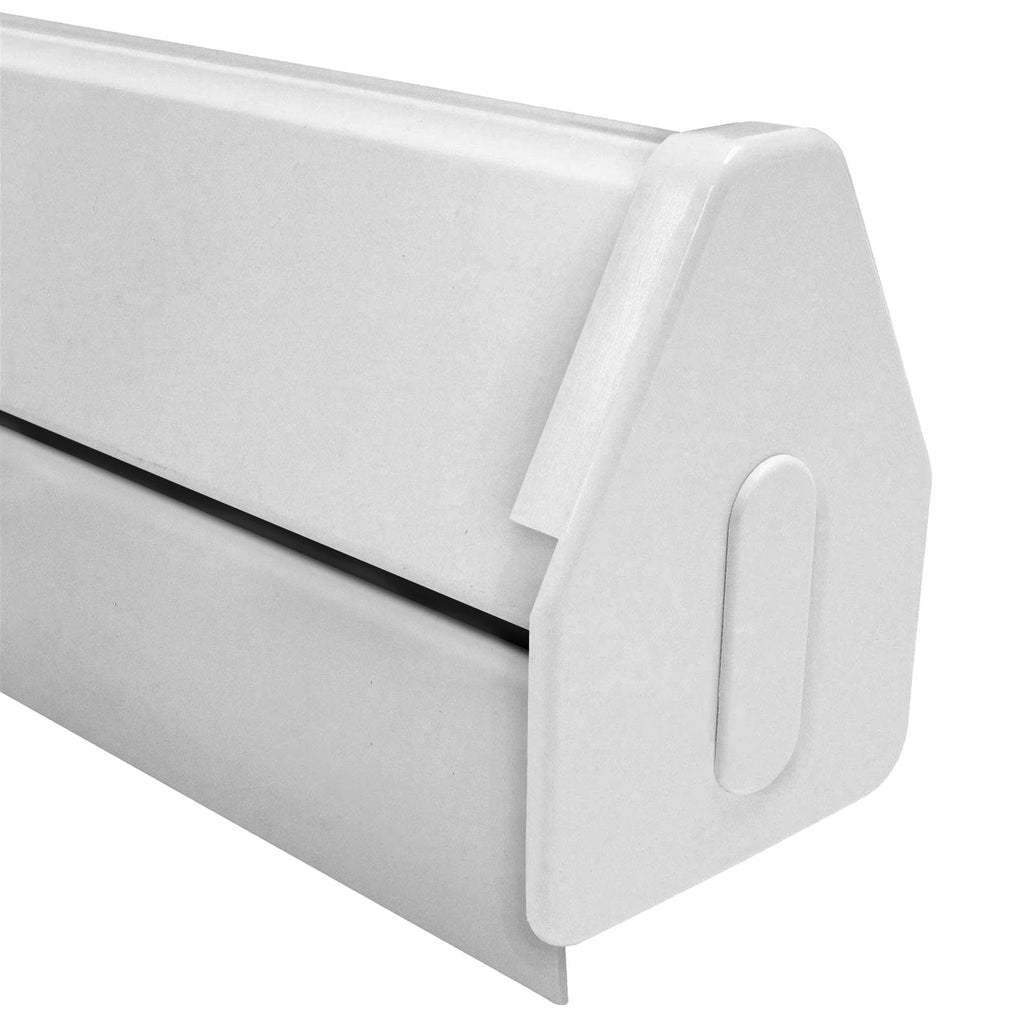

Starter End Glazing Bar

(Various lengths and colours)

Attractive watertight finish to open end

Strong aluminium end bar with attractive, sculptured uPVC cappings for gable end of lean-to roof with polycarbonate and glass roof material.

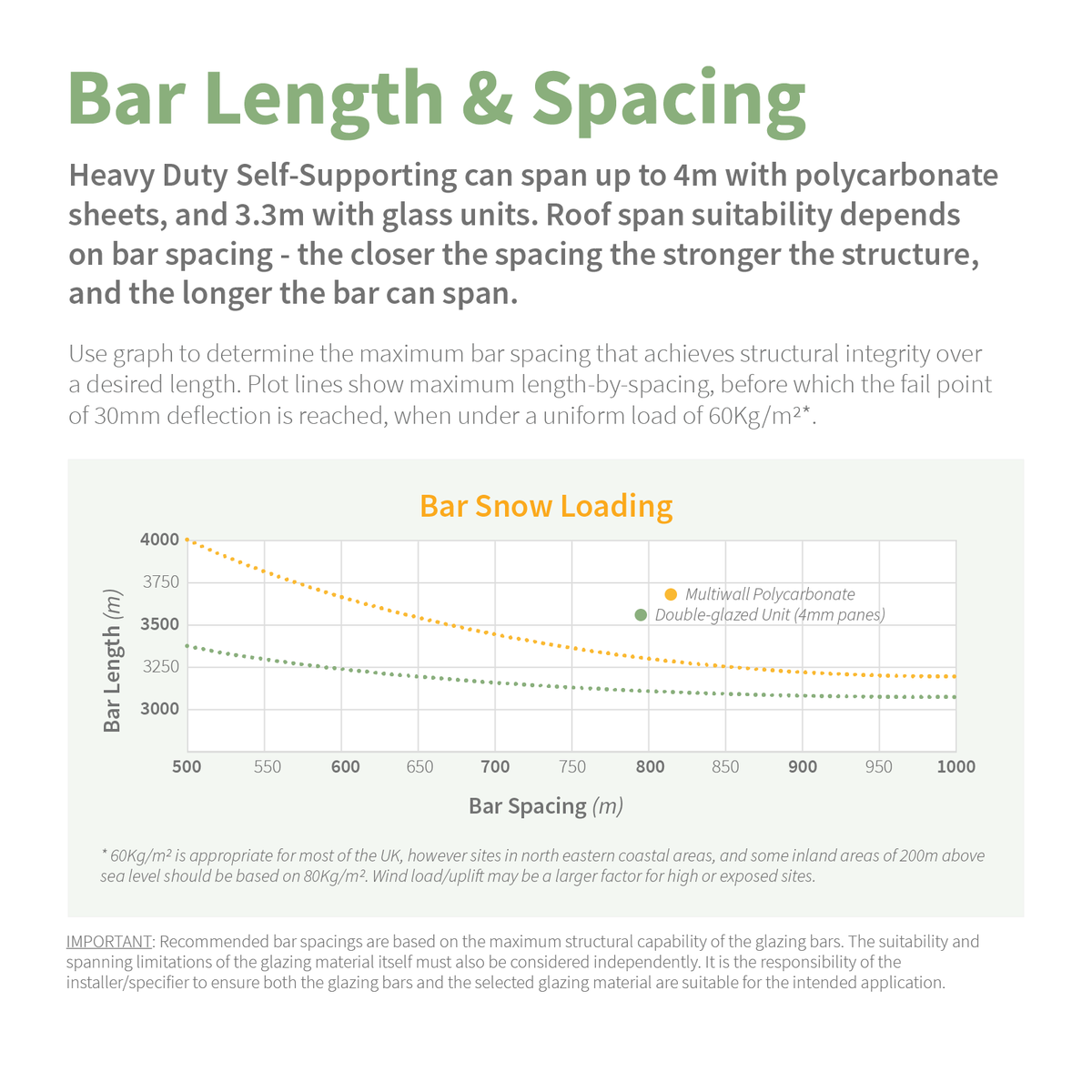

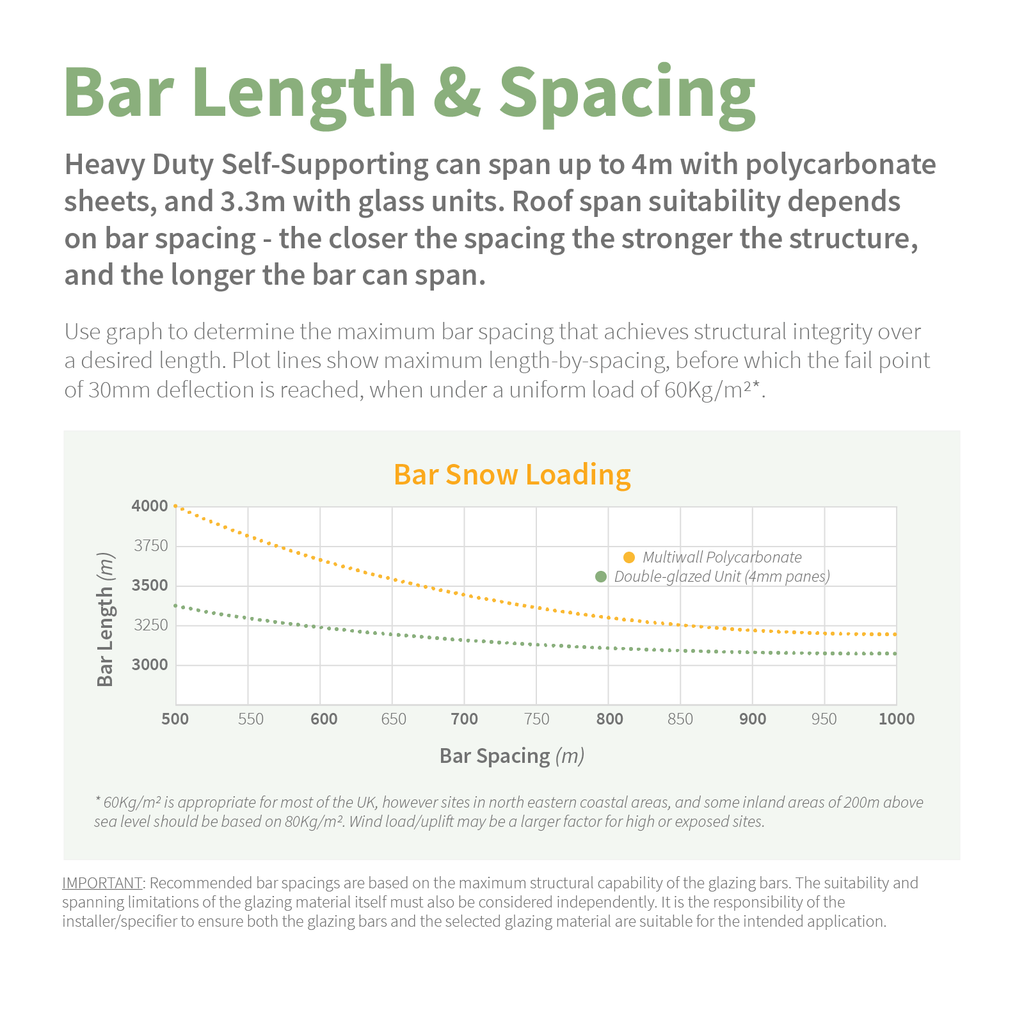

Part of the flexible and easy to use professionally engineered Heavy-Duty Self-Supporting Glazing System which can span 4m unpupported without cross bearers.

Features & Benefits

• Self-Supporting - no need for timber rafters
• Long-Life Durability - strong aluminium 'T' bar extrusion
• Hardwearing and Low-Maintenance - PVCu Capping and Cladding
• Excellent Weather Proofing - co-extruded gaskets
• Polycarbonate or Glass - unlike others, this system can be used with glass
• Choice of Thickness - locking points for 16, 25, 32 and 35mm panels
• Cost Effective and Less Wastage - multiple bar lengths
• Looks Good and Fits Well - Can be pitched from 5° upwards

Suitable for a variety of applications, including lean-tos, conservatory roofs, canopies and car ports.

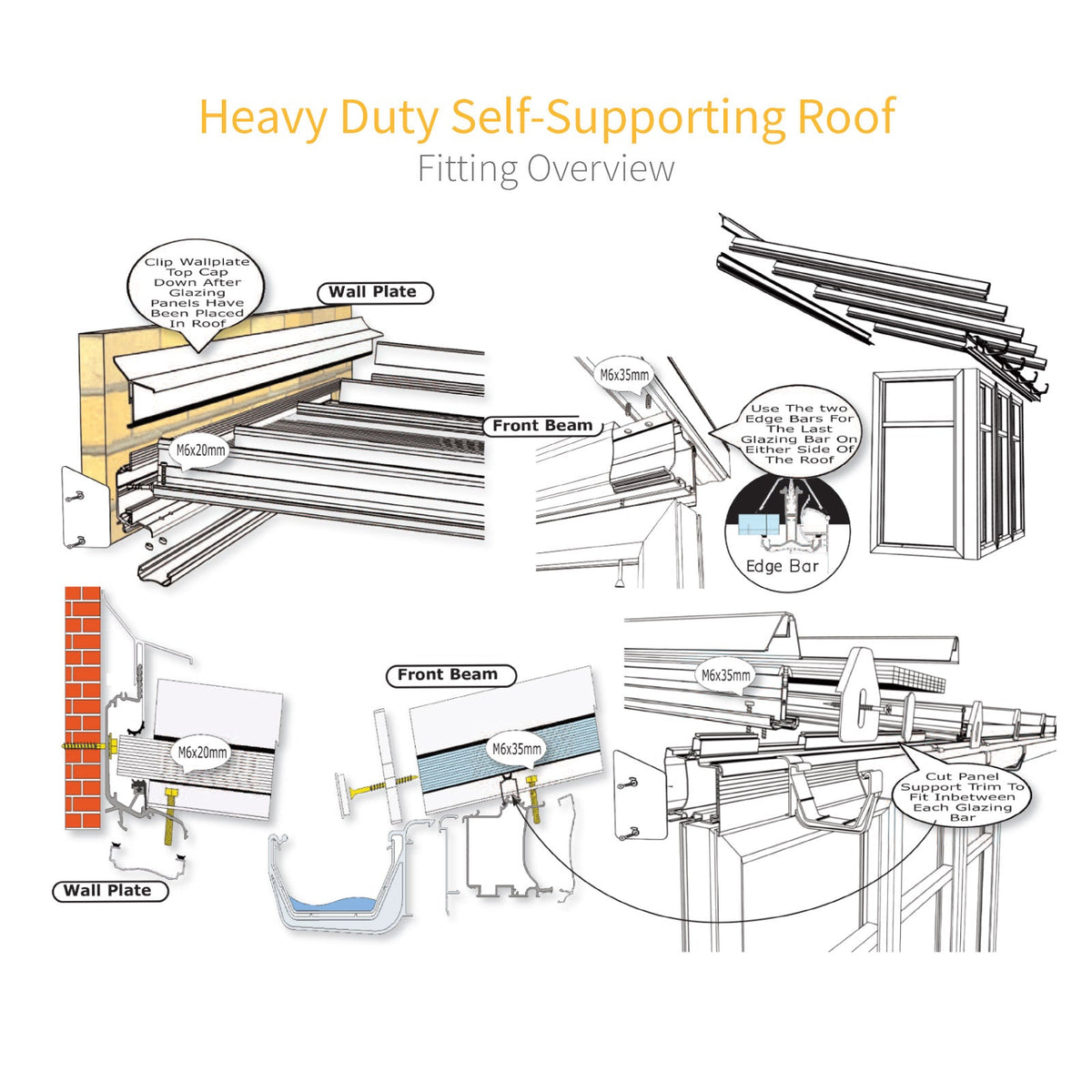

Complete self-supporting roof system

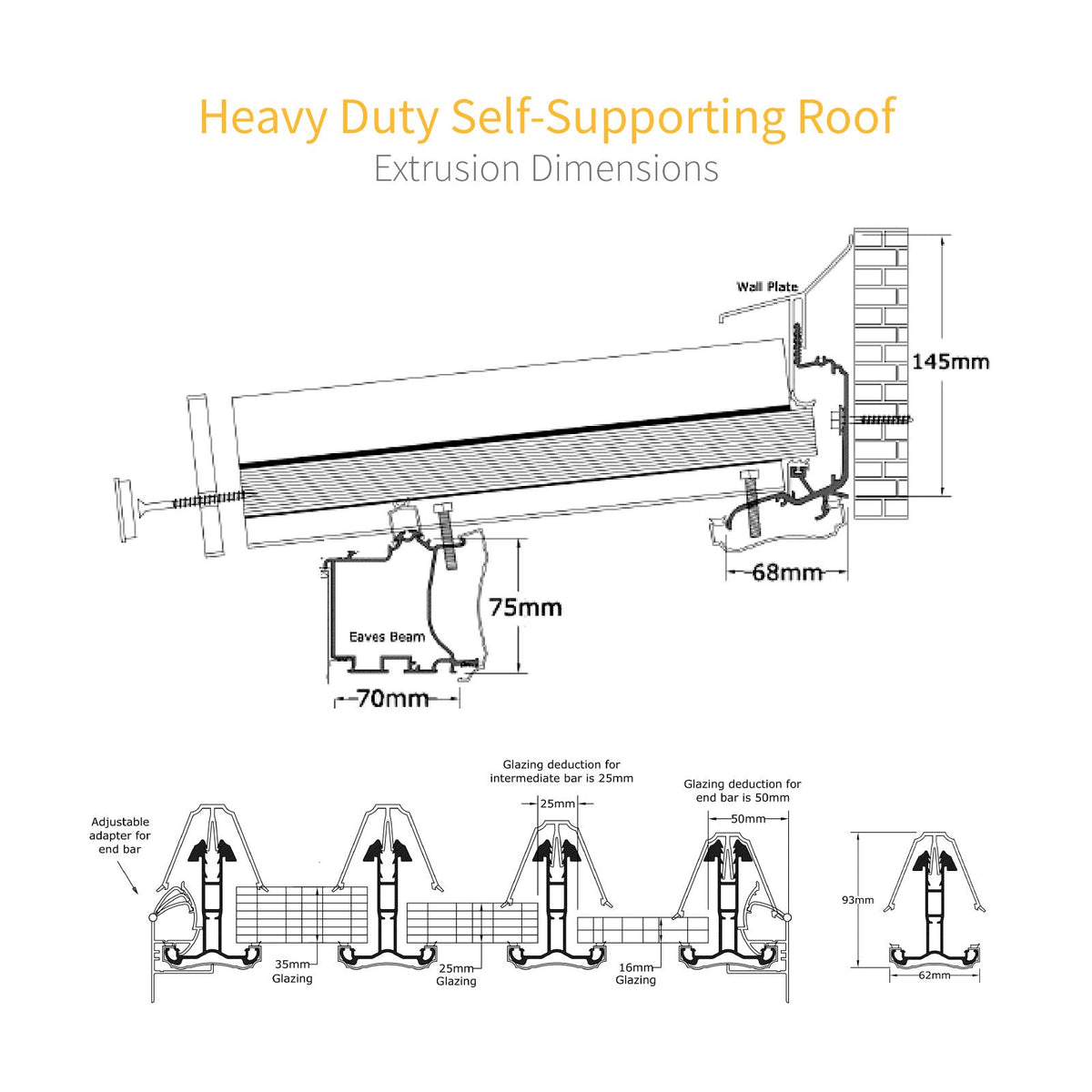

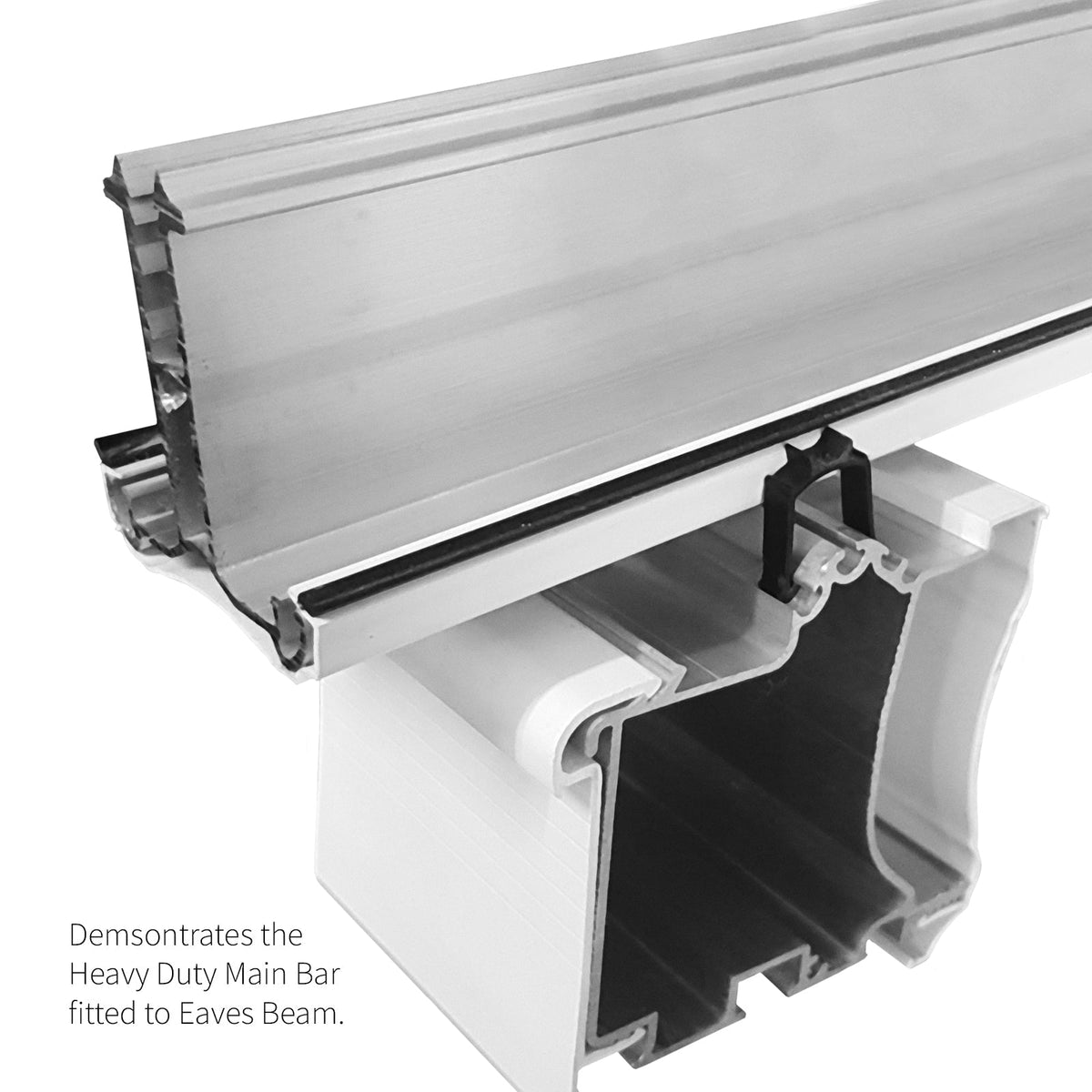

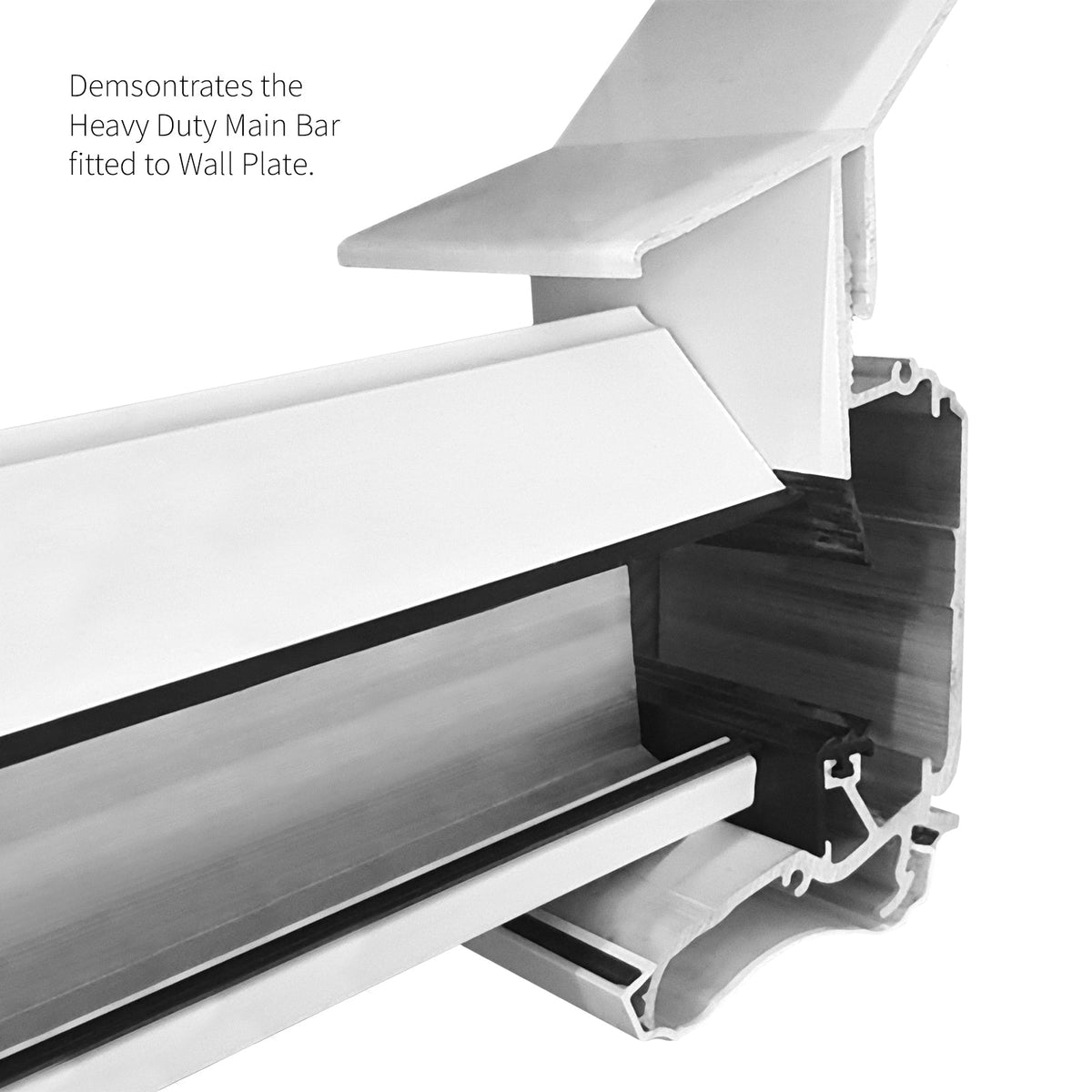

The range includes Wall Plate for securing glazing bars to house wall, structural Eaves Beam for the low end, standard Main Bar for use as an intermediate between in-line sheets, Gable End Bar for exposed end of lean-to and Wall Bar for abutting a wall. The Wall Bar is the standard Main Bar with separate Flashing Trim.
