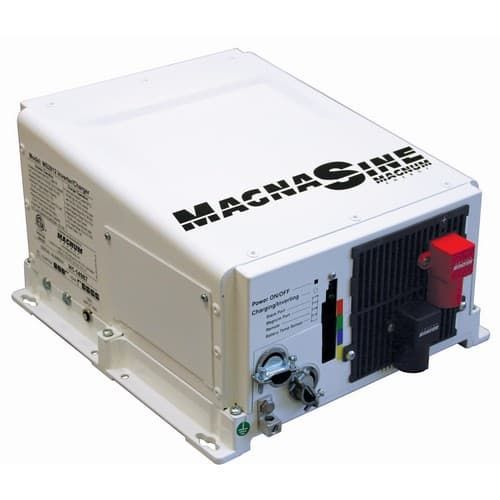

Magnum Energy MS-2812-L | 12V MS Series 2800W | Pure Sine Wave Inverter/Charger
£1,261.86
Sale price
£1,261.86
Regular price
£2,345.00
Skip to product information
Magnum Energy MS-2812-L | 12V MS Series 2800W | Pure Sine Wave Inverter/Charger
£1,261.86
Sale price
£1,261.86
Regular price
£2,345.00
Shipping calculated at checkout.
MS2812
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Magnum Energy MS2812 is a 2,800W 12V pure sine wave inverter/charger built for mobile, backup, off-grid, RV, marine, and emergency vehicle applications requiring reliable utility-grade power and an integrated Power Factor Corrected battery charger in a single rugged unit.
Key Features
- Pure Sine Wave Output Delivers utility-grade 120Vac pure sine wave power at 60Hz ±0.1Hz with less than 5% THD, suitable for sensitive electronics, medical equipment, and variable-speed motor loads.
- Power Factor Corrected Charger Integrated PFC charger draws 25–30% less AC current from a generator than conventional chargers, with 125A continuous DC output at 25°C and a power factor above 0.95.
- Five-Stage Battery Charging Bulk, Absorb, Float, Equalize (via remote), and Battery Saver stages maximize battery life and health, with support for LFP, Gel, Flooded, AGM1, and AGM2 battery profile presets.
- 60A Transfer Relay Dual-input 60A transfer relay capability allows seamless switching between shore power or generator and inverter output, with a minimum 16ms AC relay transfer time.
- Versatile Mounting & Wiring Shelf, bulkhead, or inverted mounting options combined with an extra-large AC terminal block and 360° DC connection terminals with covers simplify installation in tight spaces.
The MS2812 delivers 2,800W continuous output from a 12V battery bank (9–16.8Vdc range) with a peak inverter efficiency of 90%, a 5-second surge capacity of 3,900W, and a maximum continuous input current of 373ADC. No-load power consumption is just 30W while inverting and under 8W in search mode.
Certified ETL Listed to UL/cUL 458 for mobile use and meeting KKK-A-1822E emergency vehicle standards, the MS2812 is built for demanding field deployment. Corrosion protection includes conformal-coated PCBs, powder-coated chassis, and stainless steel fasteners throughout, with dual 92mm variable-speed brushless DC fans providing 0–120 cfm of internal cooling.
RS485 communication port, remote port, and battery temperature compensation are all standard, with optional accessories including ME-RC, ME-ARC, and ME-MR remote controls, MagWeb, AGS automatic generator start, and RV-C Bridge. A three-year parts and labor warranty covers all MS Series models.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MS2812 |
| Continuous Output Power | 2,800W |
| Input Battery Voltage Range | 9–16.8Vdc |
| AC Output Voltage / Accuracy | 120Vac ± 5% |
| Output Frequency / Accuracy | 60Hz ± 0.1Hz |
| Total Harmonic Distortion (THD) | <5% |
| Output Waveform | Pure Sine Wave |
| Peak Inverter Efficiency | 90% |
| 1ms Surge Current | 70A AC |
| 100ms Surge Current | 40A AC |
| 5-Second Surge Power | 3,900W |
| 30-Second Surge Power | 3,800W |
| 5-Minute Surge Power | 3,200W |
| 30-Minute Surge Power | 3,000W |
| Max Continuous Input Current | 373 ADC |
| AC Relay Transfer Time (minimum) | 16ms |
| Power Consumption — Searching | <8W |
| Power Consumption — Inverting (no load) | 30W |
| Charger Continuous Output (25°C) | 125 ADC |
| Charger Efficiency | 85% |
| Charger Power Factor | >0.95 |
| AC Input Current (rated charger output) | 18 AAC |
| Transfer Relay Capability | 60A ACC total |
| Charging Stages | 5 — Bulk, Absorb, Float, Equalize, Battery Saver |
| Battery Profiles | LFP, Gel, Flooded, AGM1, AGM2 |
| Internal Cooling | Dual 92mm variable-speed brushless DC fans (0–120 cfm) |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Max Operating Altitude | 15,000 ft (4,570m) |
| Operating Humidity | 0–95% RH non-condensing |
| Dimensions (L x W x H) | 13.75 x 12.65 x 8.0 in |
| Weight | 55 lbs (24.9 kg) |
| Certifications | ETL Listed UL/cUL 458, UL 1741, CSA C22.2 #107.1-01, KKK-A-1822E |
| Standard Warranty | 3 Years parts and labor |
