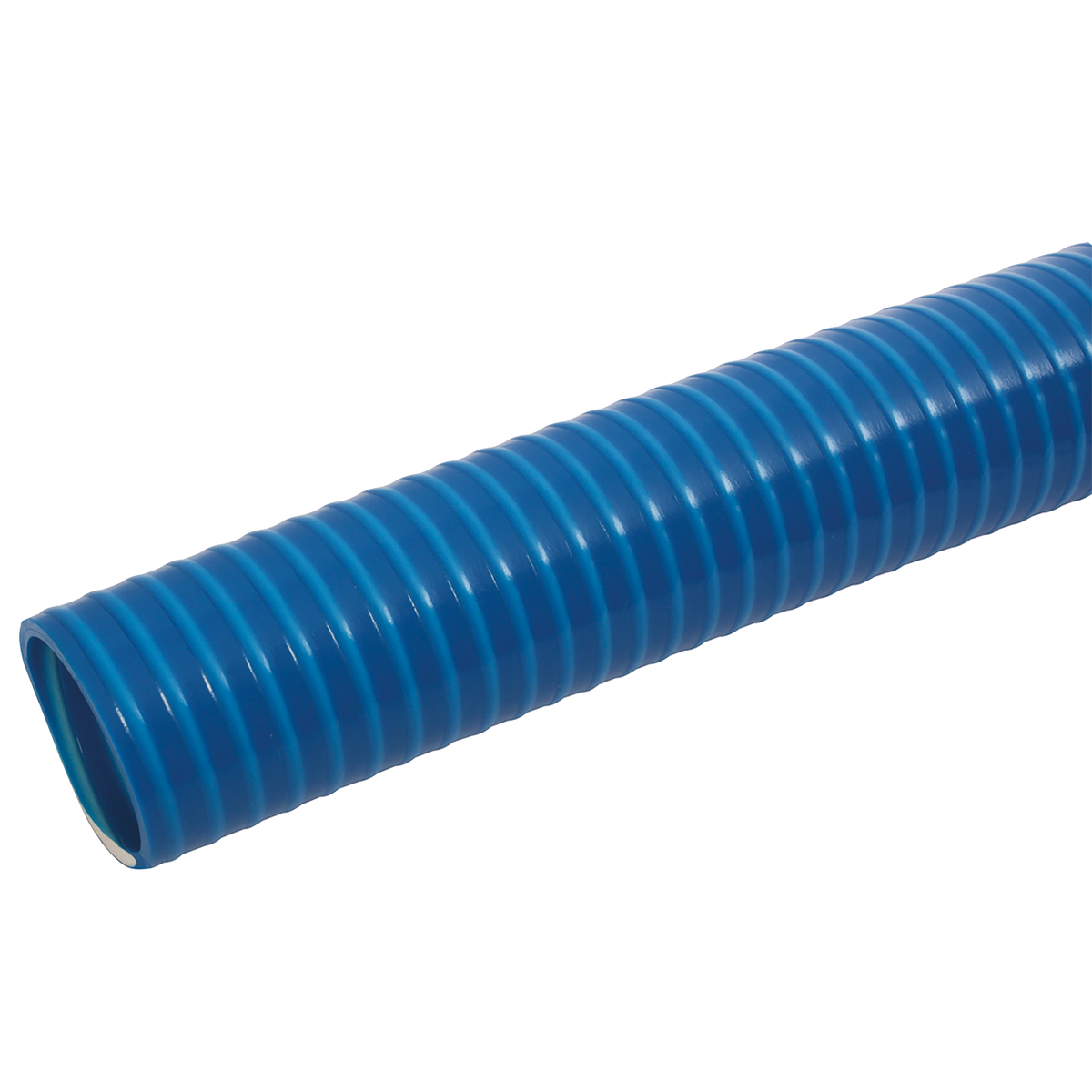

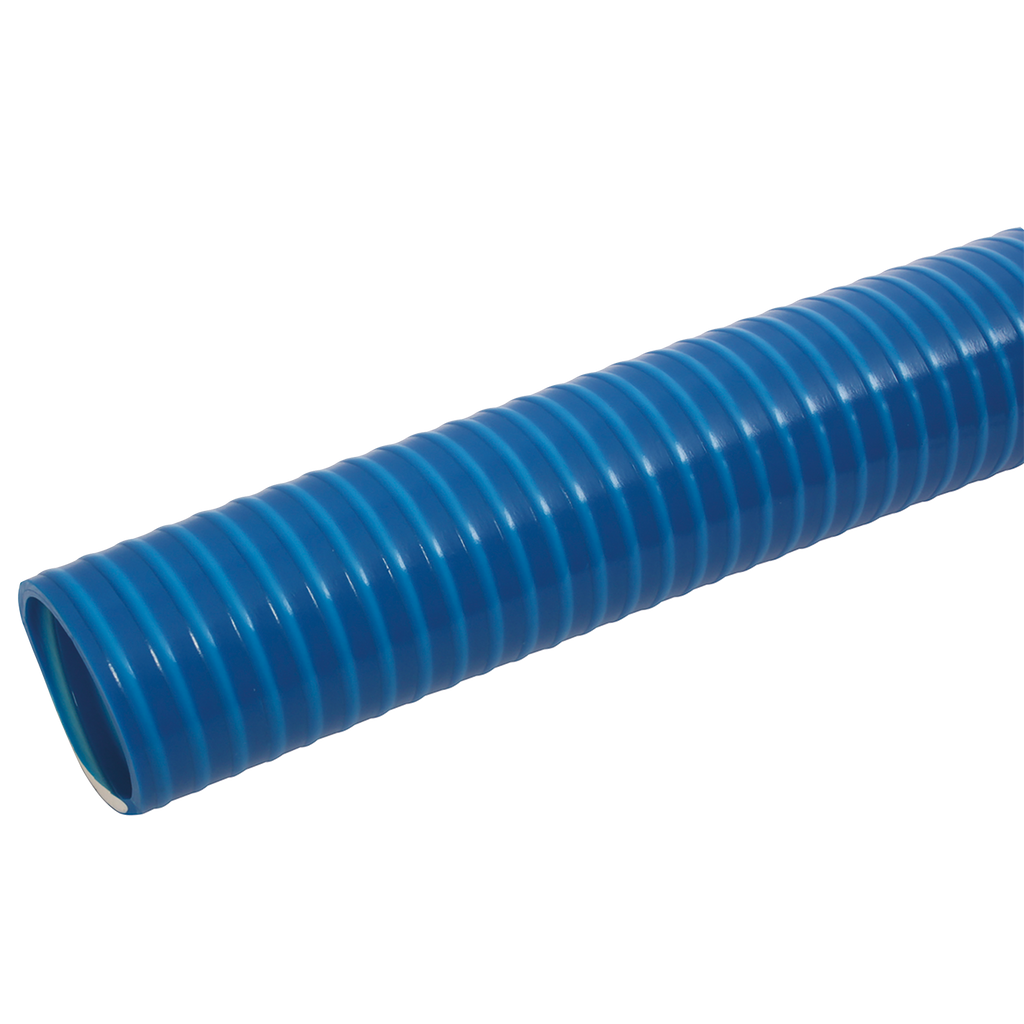

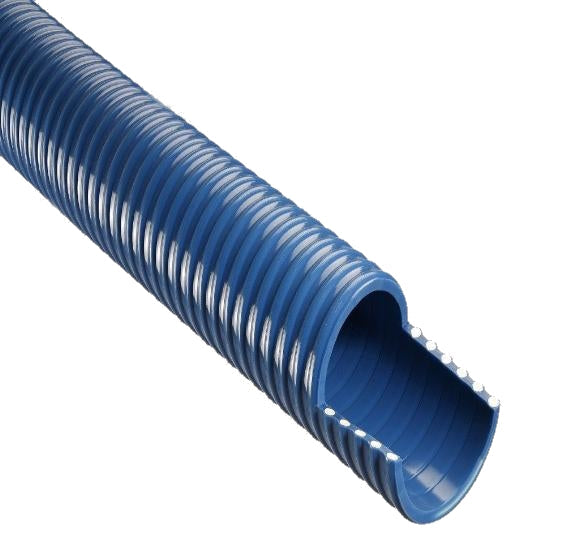

This oil suction and delivery hose is a medium-duty, oil-resistant PVC hose, designed for the safe transfer of fuel, diesel, oils, and lubricants. Reinforced with a white PVC helix spiral, it offers excellent strength, flexibility, and crush resistance, making it ideal for industrial and agricultural applications.

Available in 10 metre and 30 metre lengths, this hose provides reliable performance for both suction and discharge use.

Key Features

• Material: Oil-resistant blue PVC with white helix reinforcement
• Length Options: 10m or 30m
• Smooth bore for improved flow and reduced resistance
• Flexible and durable construction
• Excellent weathering and crush resistance
• Suitable for suction and delivery applications

Applications

Ideal for transporting:

• Diesel and fuel
• Mineral and hydraulic oils
• Lubricating oils and greases
• Paraffin and low aromatic fluids
• General industrial liquids

Performance & Specifications

• Working Temperature: -15°C to +60°C
• Maximum Working Pressure: 4.5 bar
• Vacuum Rating: 680mm Hg (90%) at 20°C
• Pressure ratings based on 3:1 safety factor (burst pressure at 20°C)

⚠️ Note: Working pressure decreases as temperature increases above 20°C.

Chemical Resistance

• Suitable for low aromatic content fluids
• Compatible with diesel, oils, hydraulic fluids, and lubricants
• For specific chemical compatibility, please contact technical support

Ordering Information

• Available in 10m and 30m coils
• Multiple diameters available (see product options)

This oil-resistant suction hose is a reliable solution for fuel transfer, oil handling, and industrial fluid movement, delivering durability and performance in demanding environments.
