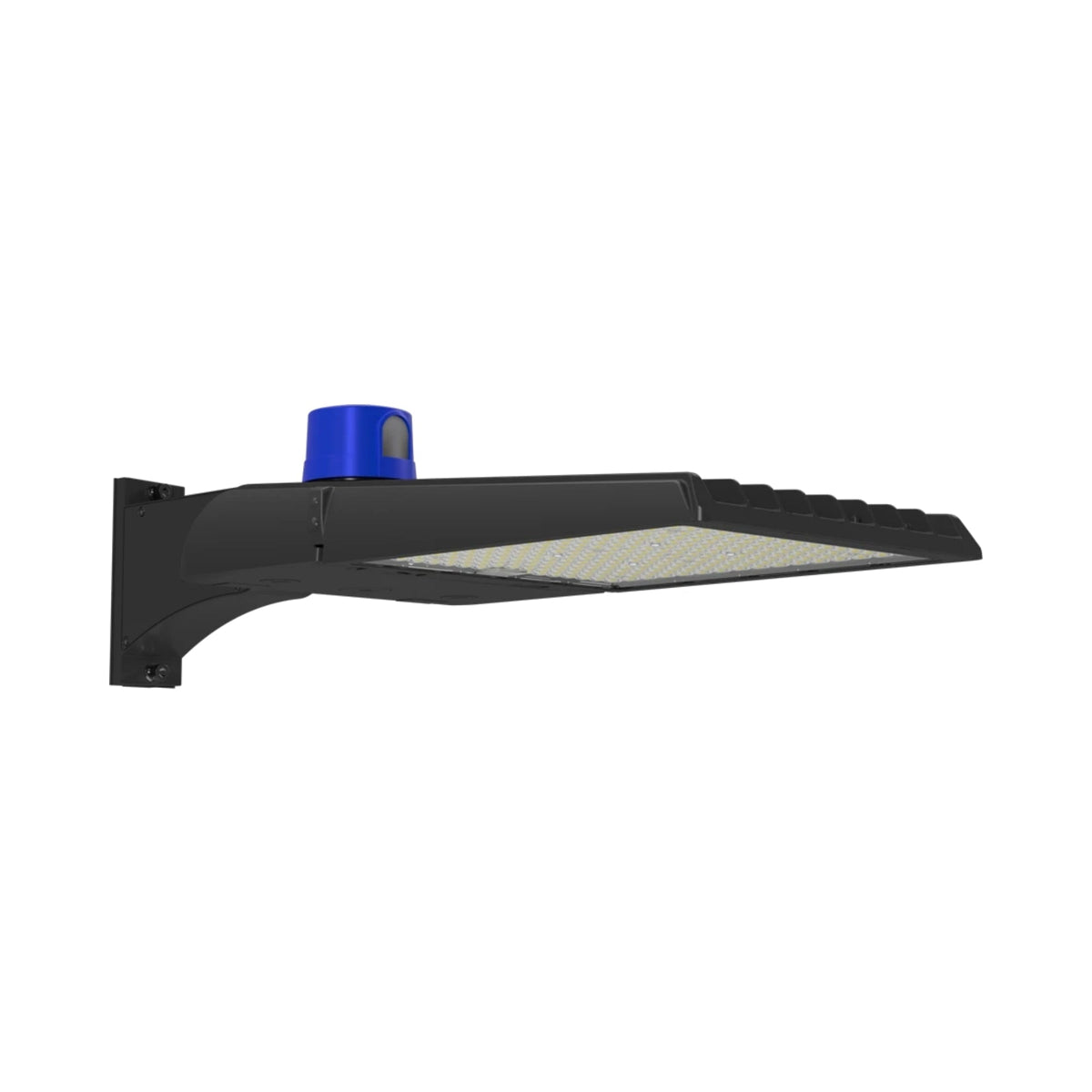

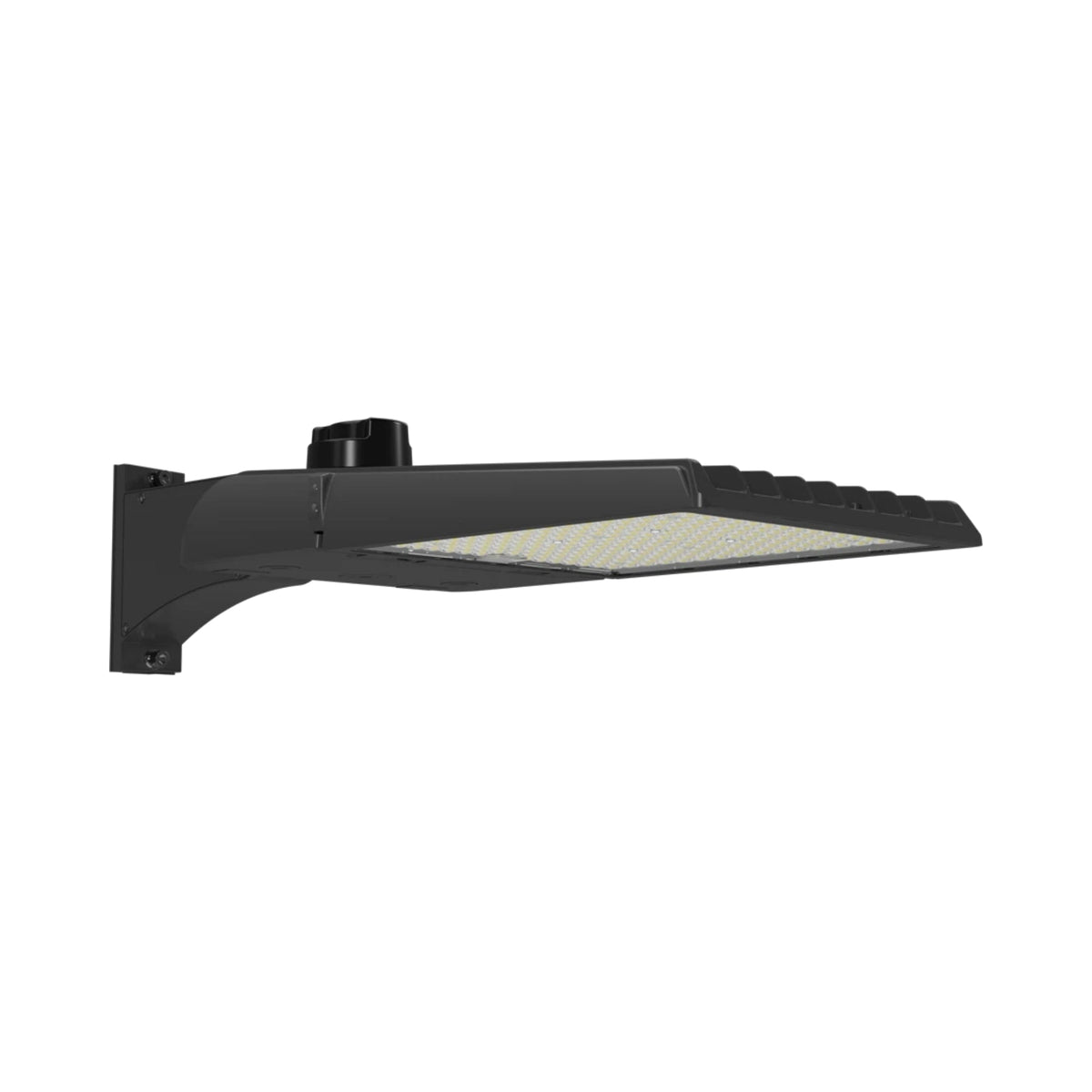

RAB AL22 Field-Adjustable Area Light — 150W Selectable Configuration

The RAB AL22-150 is a highly versatile field-adjustable area light engineered to simplify commercial outdoor lighting. Operating at a selectable 80W, 100W, or 150W to produce up to 22,951 lumens, this luminaire utilizes a universal 120-277V input. Designed for ultimate application flexibility, it features adjustable optics and CCT to meet precise compliance standards across diverse parking, roadway, and perimeter lighting projects.

Key Features

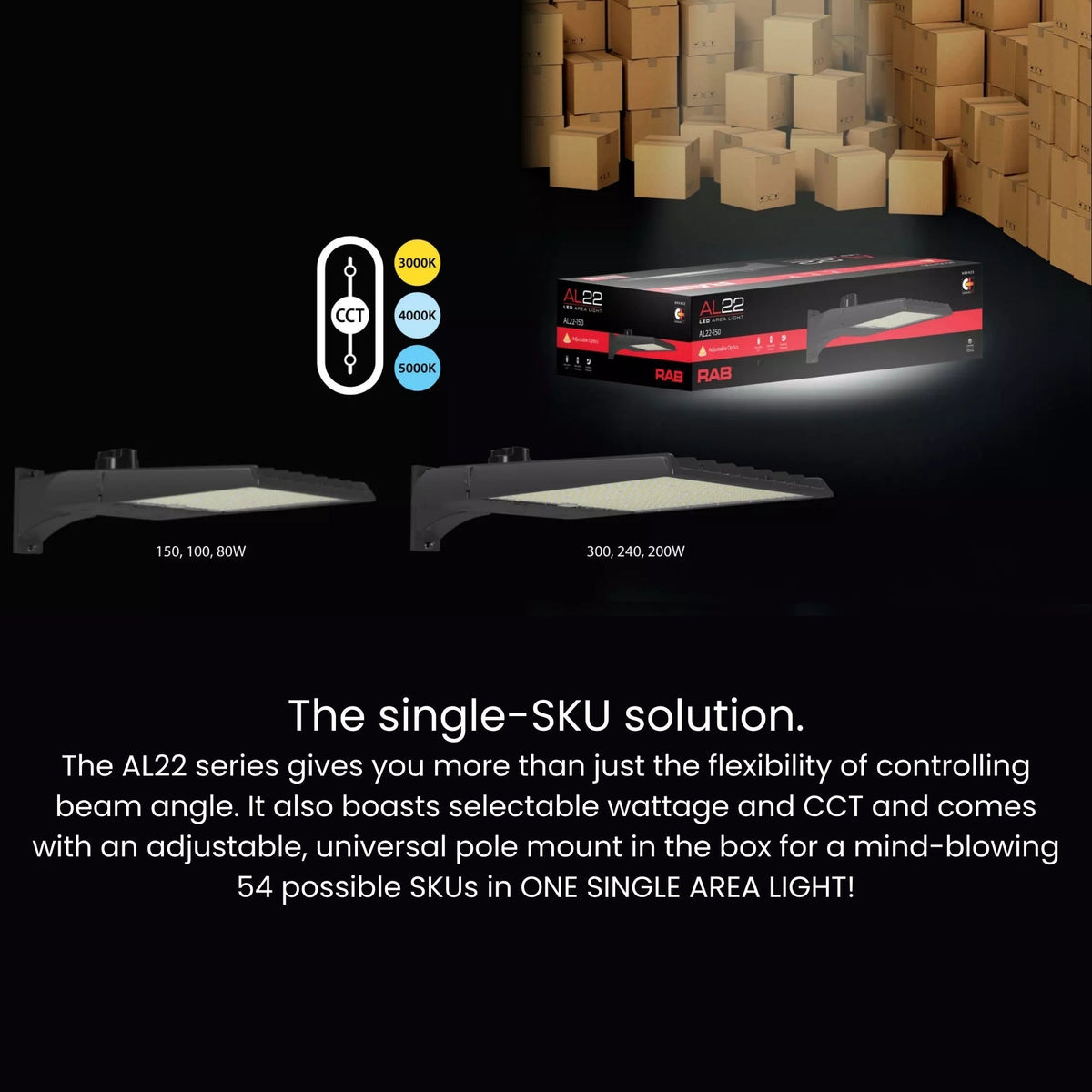

• Selectable Wattage: Field-adjustable between 80W, 100W, and 150W (default 150W).
• Selectable CCT: Toggle between 3000K, 4000K, and 5000K (default 4000K).
• Adjustable Optics: Switchable Type III, Type IV, and Type V light distributions.
• Input Voltage: Universal 120-277V operation.
• Dimming Protocol: Standard 0-10V continuous dimming capability.
• Environmental Ratings: IP66 rated for complete protection against dust and high-pressure water.
• Vibration Rating: 3G vibration tested per ANSI C136.31.
• Surge Protection: Built-in 6kV line-to-line and line-to-ground surge suppression.
• Lifespan: 100,000-hour L70 rated LED life.
• Operating Temperature: Reliable performance in ambient temperatures up to 122°F (50°C).

Typical Applications

• Commercial parking lots and corporate campuses.
• Roadway and large pedestrian pathway illumination.
• Retail center exteriors and large open public spaces.
• Industrial facility perimeters and loading docks.
• Intersections requiring forward throw lighting coverage.

Performance & Light Output

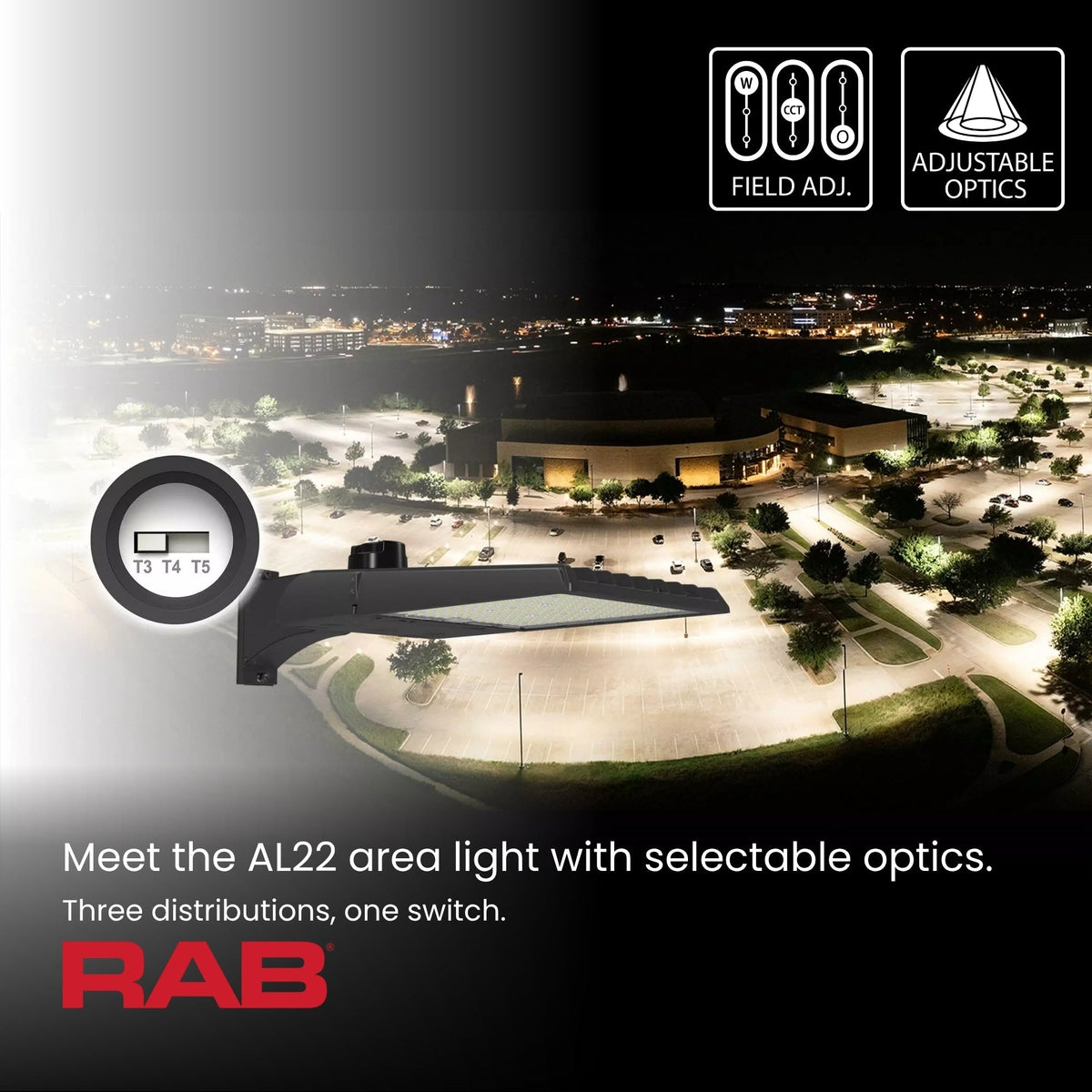

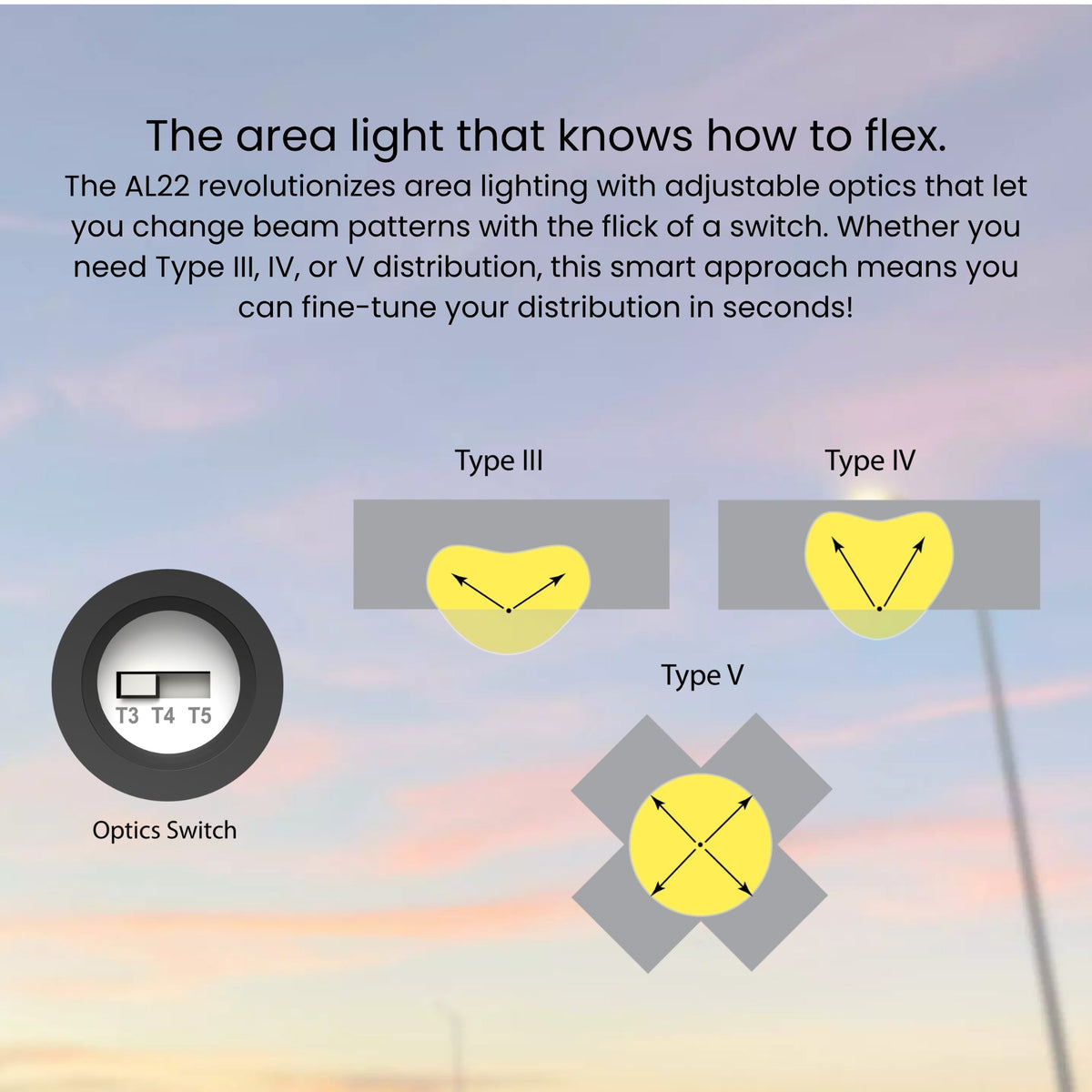

Engineered for exceptional adaptability, this fixture provides scalable illumination from 12,720 to 22,951 lumens with a high efficacy reaching up to 170.2 lm/W. The integrated optic system allows users to select between Type III for roadway applications, Type IV for perimeter forward throw, and Type V for uniform 360-degree area coverage. With selectable 3000K, 4000K, and 5000K color temperatures and a dependable 83-86 CRI, it ensures precise, high-visibility lighting tailored to the specific environment. The advanced surface-mount LEDs maintain exceptional lumen maintenance, offering a 100,000-hour L70 lifespan.

Electrical & Controls

The luminaire is equipped with a high-performance 120-277V universal driver that provides reliable constant-current power regulation. It features standard 0-10V dimming capability and operates with an excellent power factor of up to 99.8% at 120V. The electrical design includes 6kV surge protection and an integrated auxiliary power supply. For advanced lighting management, it comes standard with an ANSI C136.41 7-pin receptacle and includes a 120-277V 3-pin twistlock photocell. It is fully compatible with optional wireless control systems and multi-sensor network controls sold separately.

Construction & Durability

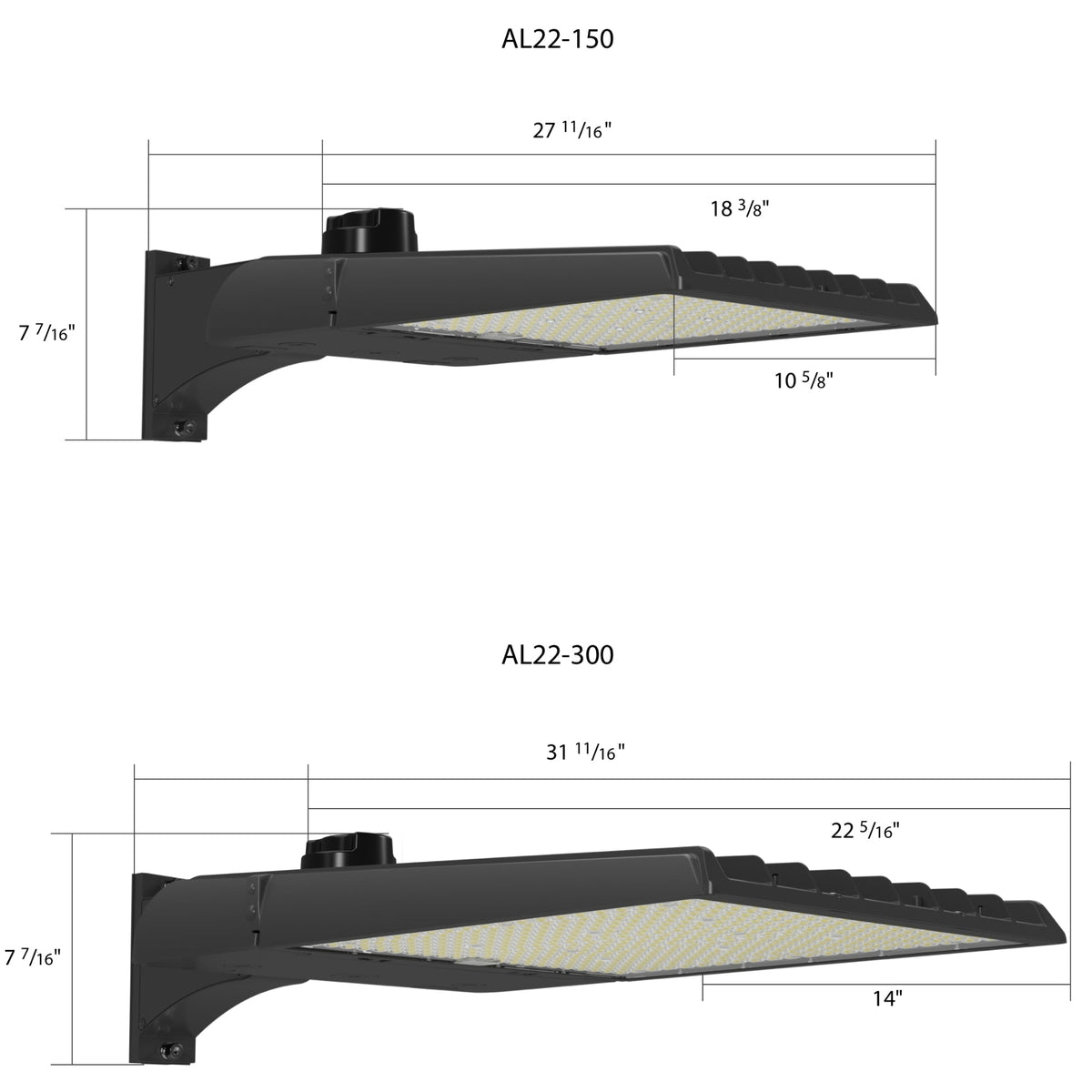

Housed in a precision die-cast aluminum enclosure, this area light is built to withstand rigorous outdoor environments and features an effective projected area (EPA) of 0.55 ft² for a single fixture. The internal components are sealed behind a clear polycarbonate lens utilizing high-temperature silicone gaskets, earning an IP66 rating for total protection against dust and water ingress. Engineered to manage heavy mechanical stress, the luminaire carries a 3G vibration rating per ANSI C136.31 standards and functions reliably in ambient operating temperatures up to 122°F (50°C).

Installation & Mounting

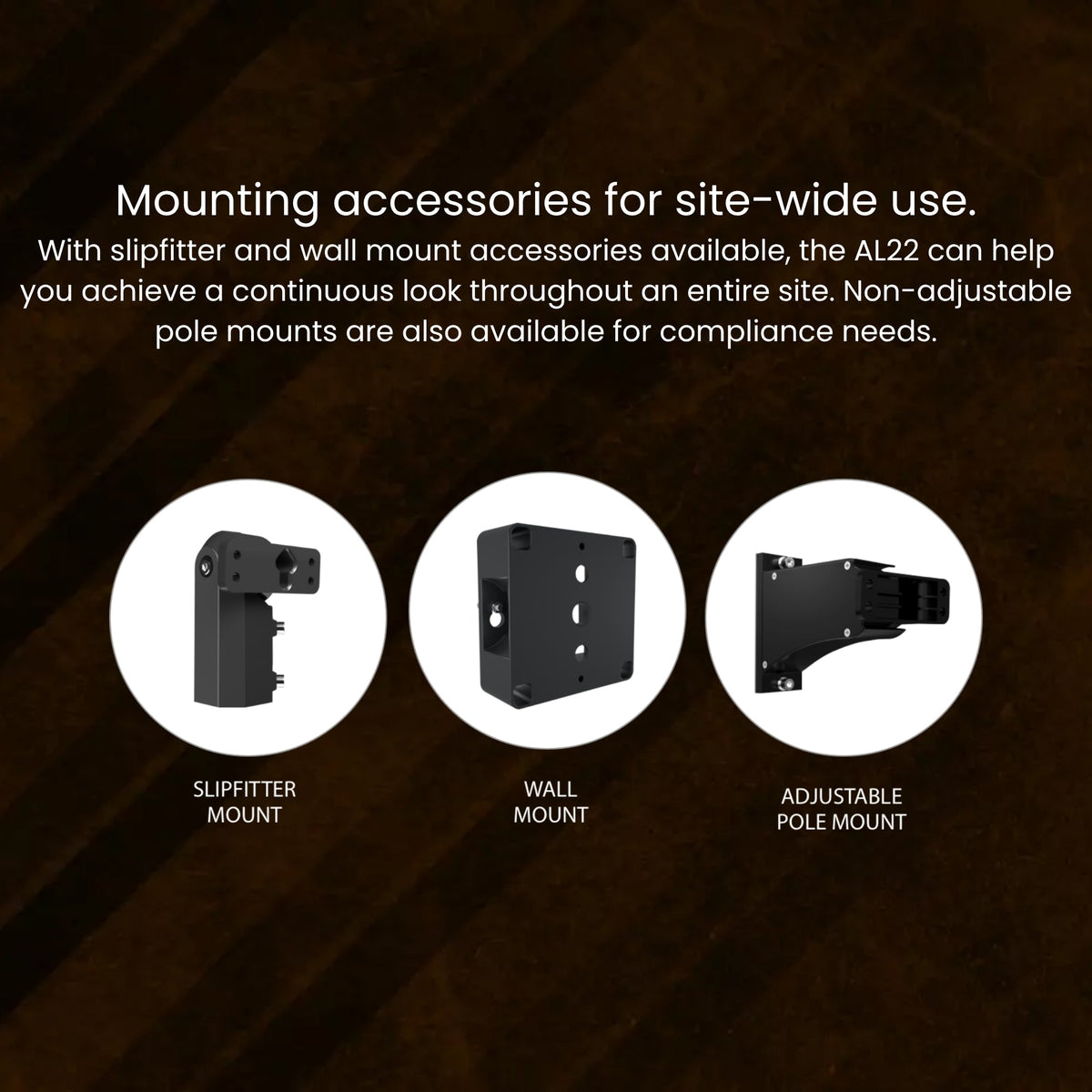

This model features an adjustable universal pole mount arm as standard, designed to easily bolt onto square or round commercial lighting poles. The universal arm allows for a 0 to 35-degree tilt adjustment, granting installers precise directional aiming capabilities. For diverse installation needs, compatible slipfitter mounts and wall mount bracket accessories are available and sold separately.

What's Included

• RAB AL22 Field-Adjustable Area Light Fixture
• Adjustable Universal Pole Mount Arm
• 120-277V 3-Pin Twistlock Photocell
• 7-Pin Receptacle with Shorting Cap
