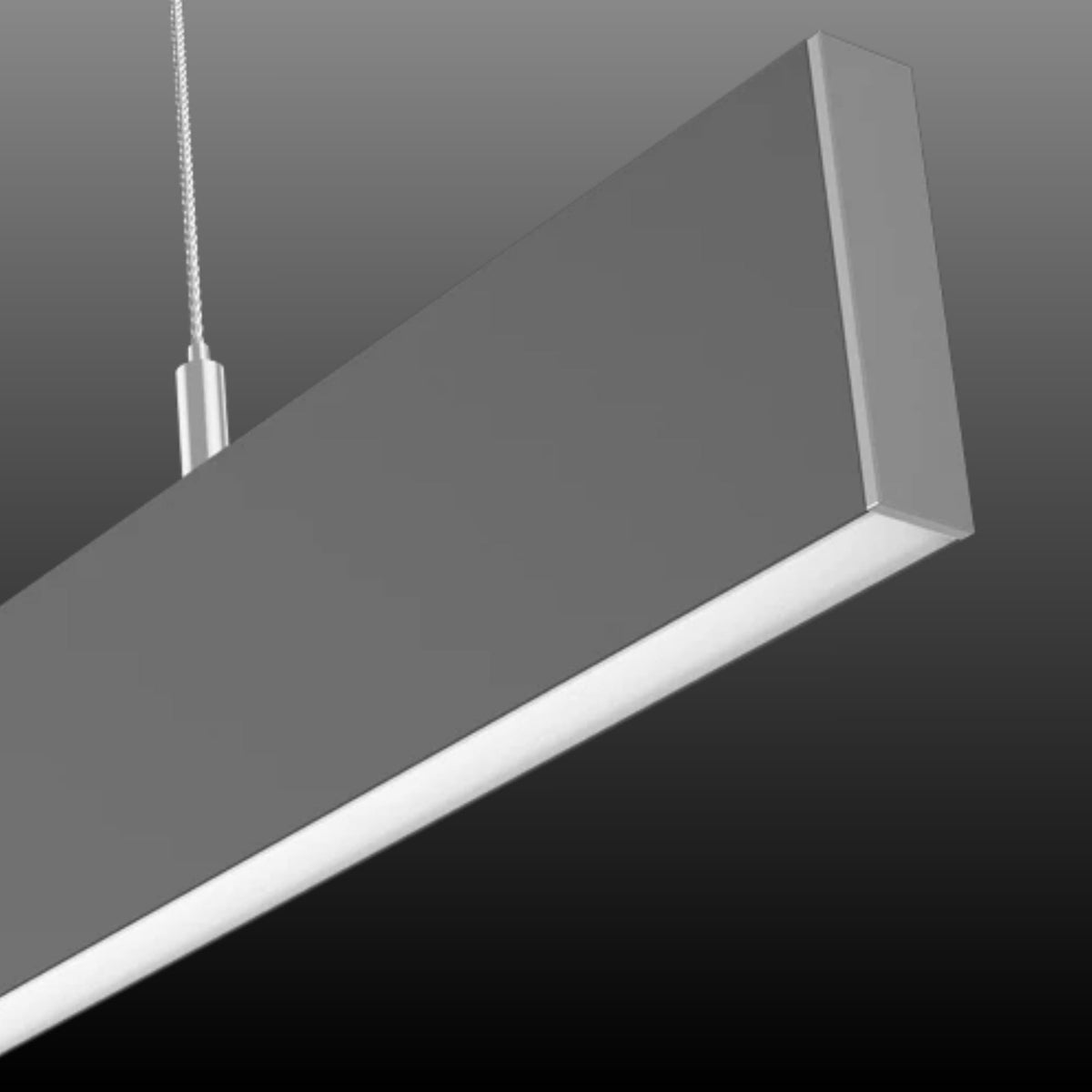

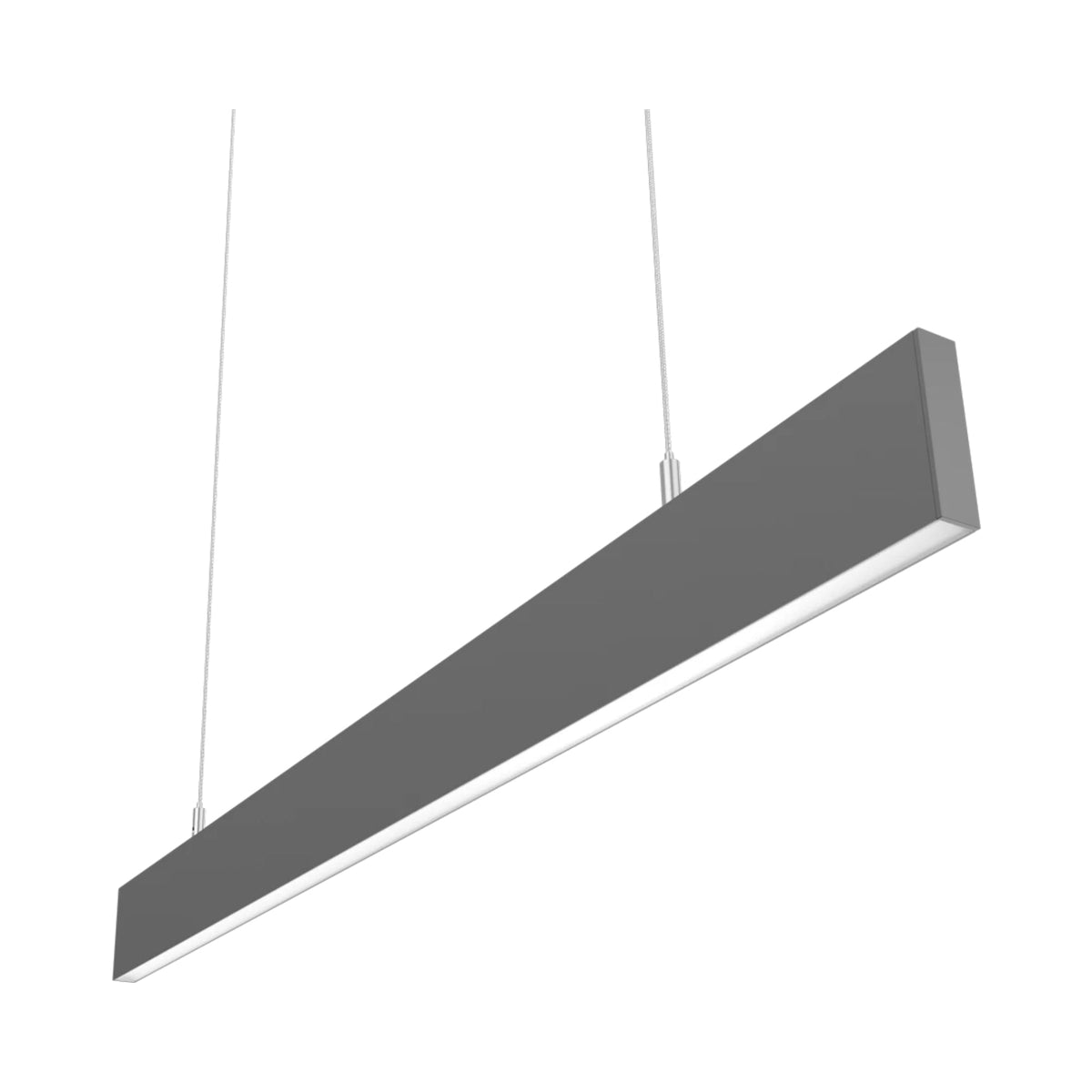

RAB BOA Edge Field Adjustable Linear Light — 30W Configuration

The RAB BOAE3PUS is a versatile linear light offering 30W power consumption, delivering up to 4214 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. It operates on 120-277V input, making it suitable for various lighting applications. This fixture is damp rated and complies with UL standards, ensuring reliability and safety.

Key Features

• Field Adjustability: Offers 30/15W power settings with multiple light output presets for customized lighting.
• Color Temperature Selectable: Factory default set to 4000K, adjustable to 3000K or 3500K as needed.
• High Efficacy: Achieves an efficacy range of 131.9-145.8 lm/W for energy-efficient performance.
• Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
• Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced durability.
• Construction: Features a robust housing made from sheet metal and extruded aluminum.
• Lens Material: Utilizes a frosted polycarbonate lens for even light distribution.
• Environmentally Friendly: Mercury and UV-free, with RoHS-compliant components.
• Continuous Runs: Capable of connecting multiple fixtures up to 600W for continuous illumination.
• Mounting: Includes 94 inches of aircraft cable with cable grippers for easy installation.

Typical Applications

• Office Spaces
• Retail Environments
• Educational Facilities
• Healthcare Settings
• Hospitality Venues

Performance & Light Output

This fixture provides a light output of 3916 to 4214 lumens with a high color rendering index (CRI) of 94-95, ensuring accurate color representation. Its efficacy ranges from 131.9 to 145.8 lm/W, making it an energy-efficient choice for various applications.

Electrical & Controls

The BOAE3PUS operates on a voltage range of 120-277V and includes a dimming driver compatible with 0-10V dimming systems, allowing for dimming down to 10%. It also features surge protection for added reliability.

Construction & Durability

Constructed from sheet metal and extruded aluminum, this fixture is designed for durability. It includes a frosted polycarbonate lens and is suitable for use in environments with temperatures ranging from -4°F to 104°F.

Installation & Mounting

The fixture comes with 94 inches of aircraft cable and cable grippers, facilitating easy installation and adjustment. It supports continuous runs for extended lighting applications.

What's Included

• Aircraft Cable
• Cable Grippers
