Description

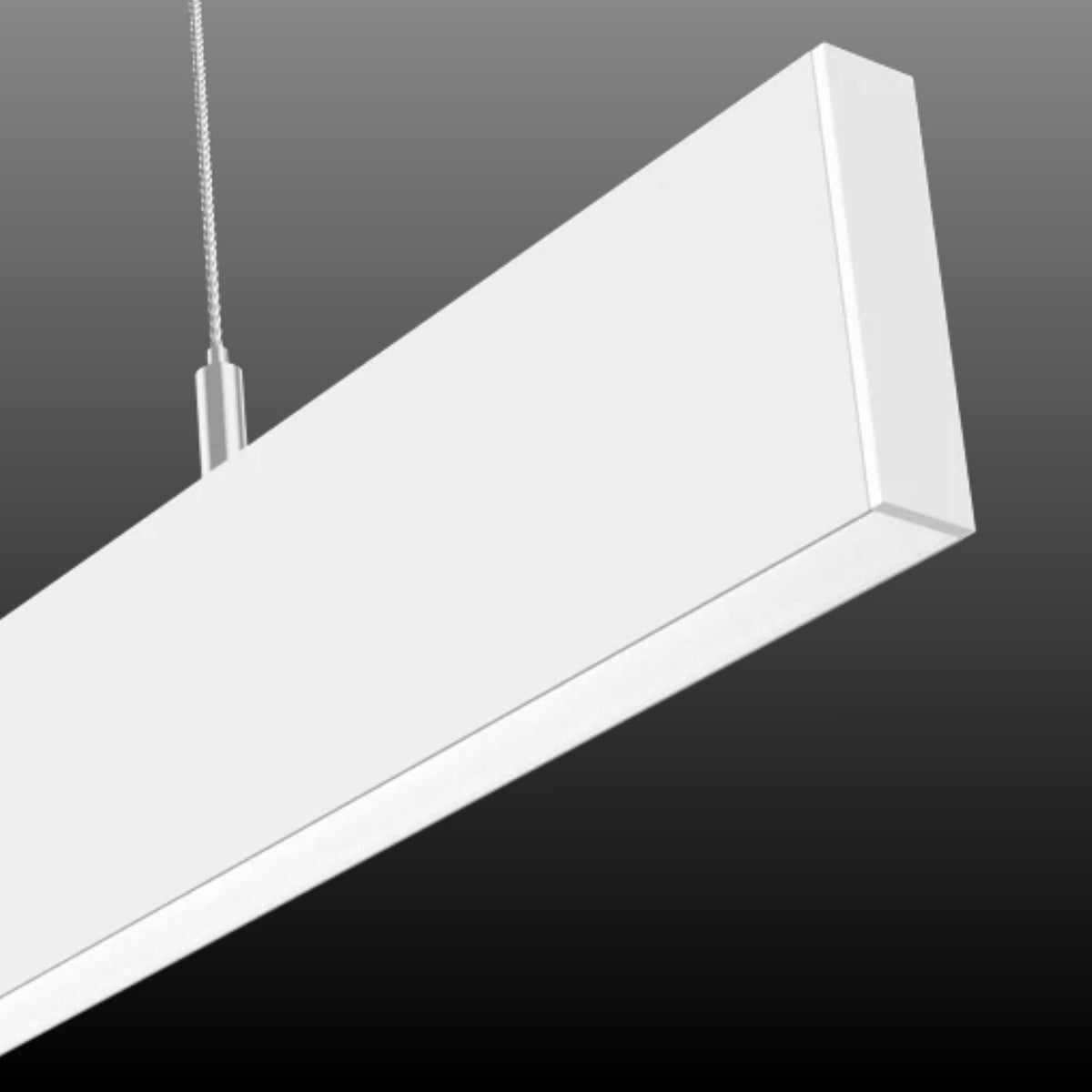

RAB BOA Edge Field Adjustable Linear Light — 40W Configuration
The RAB BOAE4PW is a linear light fixture offering 40W power with a maximum output of 5265 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is ideal for applications requiring adjustable lighting solutions and is UL Listed for damp locations.
Key Features
- Field Adjustability: Offers wattage settings of 40/28/24/20/10W with factory default at 40W.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K for optimal lighting.
- High Efficacy: Achieves 130.5-144 lm/W for energy-efficient performance.
- Long Lifespan: Rated for 100,000 hours, ensuring minimal maintenance.
- Dimming Capability: Supports 0-10V dimming, reducing light levels to 10%.
- Surge Protection: Equipped with 1 kV L-L and 2kV L/N-G surge protection.
- Construction: Built with durable sheet metal and extruded aluminum housing.
- Lens Material: Features a frosted polycarbonate lens for even light distribution.
- Continuous Runs: Connect multiple fixtures for seamless illumination up to 600W.
- Environmentally Friendly: Mercury and UV free, RoHS-compliant components.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Commercial Buildings
Performance & Light Output
This fixture provides a luminous output of up to 5265 lumens with an efficacy range of 130.5-144 lm/W. It maintains a high CRI of 94-95, ensuring excellent color rendering.
Electrical & Controls
The BOAE4PW operates on 120-277V and includes a dimming driver for 0-10V systems. It features surge protection and supports continuous runs up to 600W.
Construction & Durability
Constructed from sheet metal and extruded aluminum, this fixture is designed for durability. It is suitable for damp locations and operates in temperatures from -4°F to 104°F.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.
What's Included
- Aircraft cable with cable grippers
