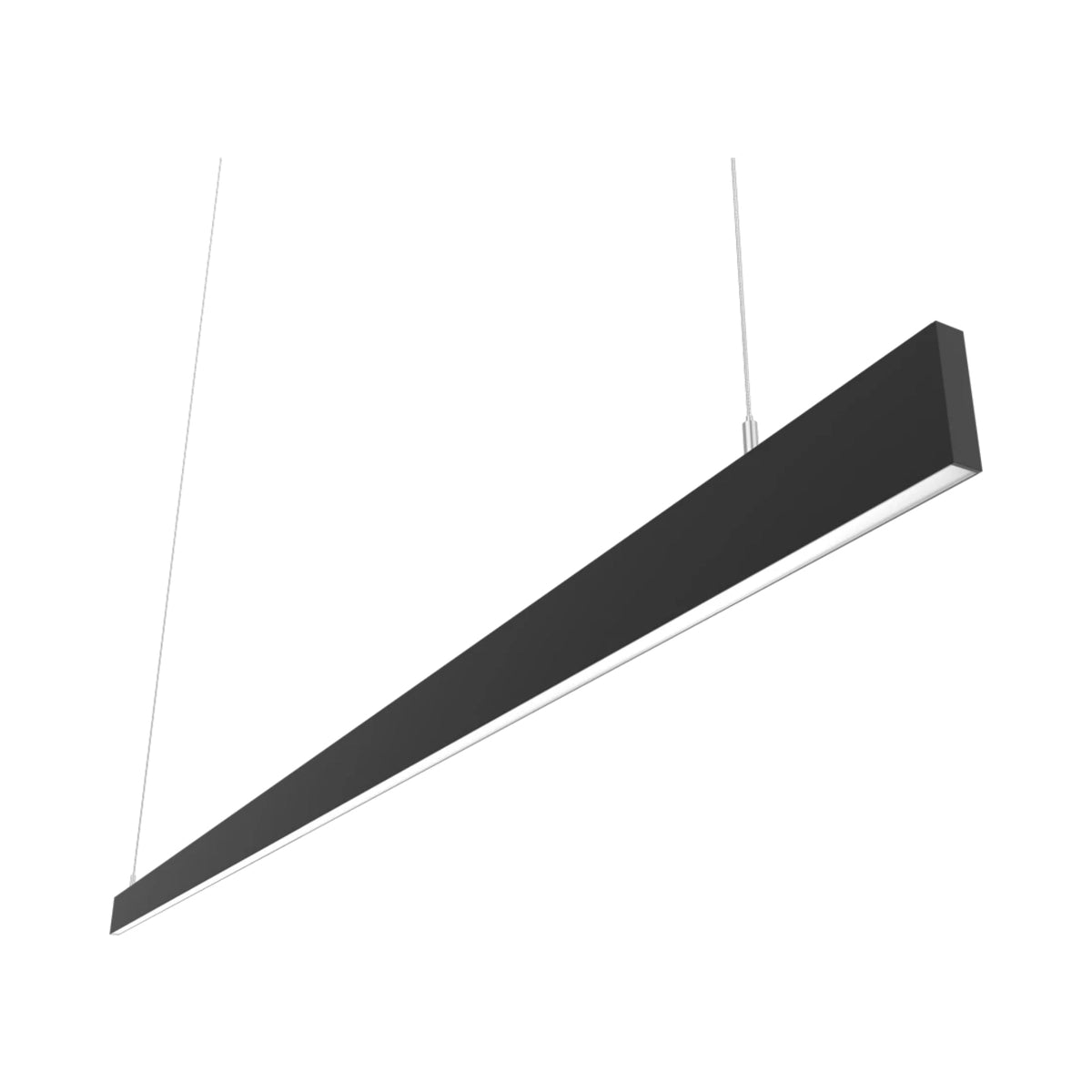

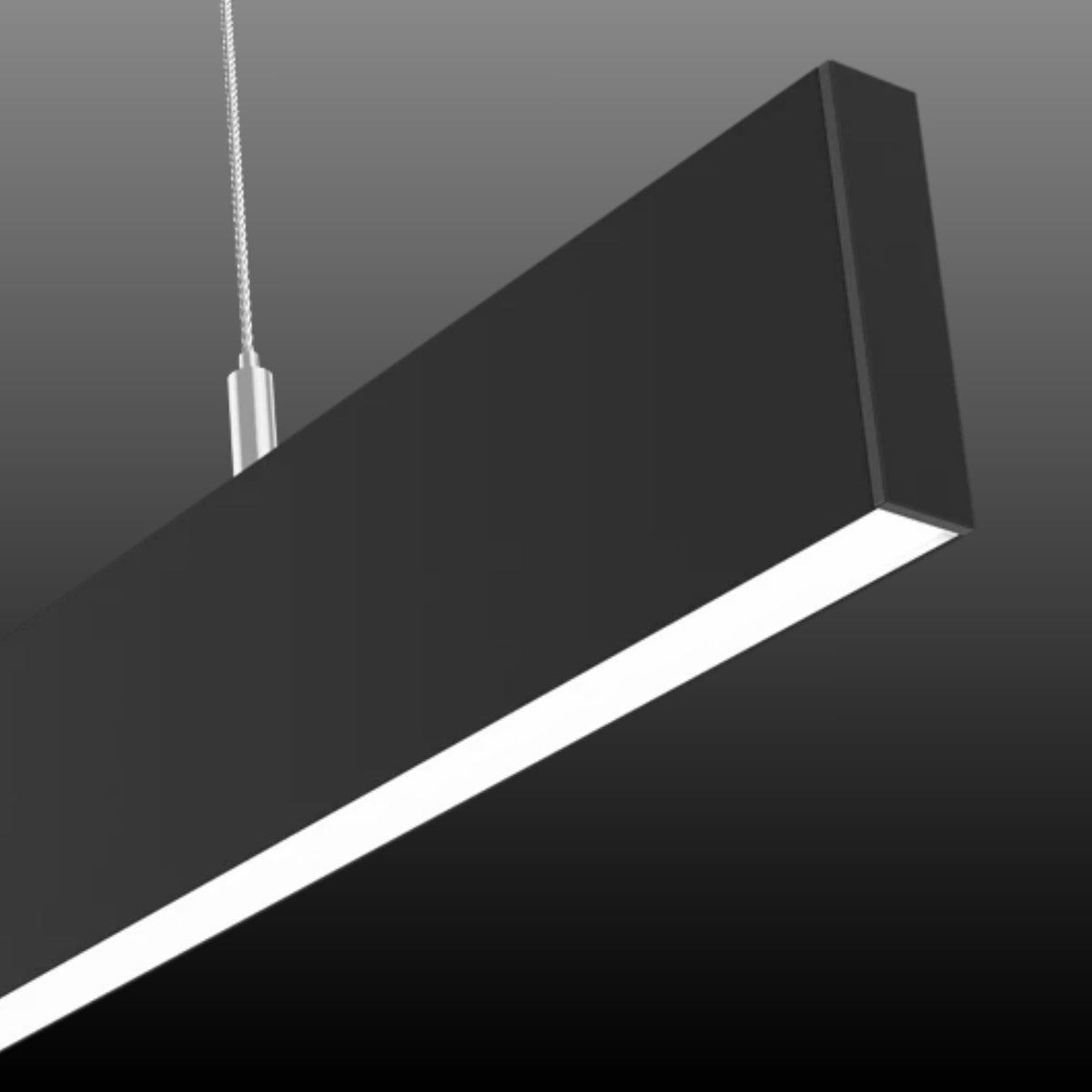

RAB Lighting BOA Edge Field Adjustable Linear Light — 80W Configuration

The RAB Lighting BOAE8PB is an 8-foot linear light offering 80W of power and delivering up to 10962 lumens. It operates on a 120-277V system and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is suitable for damp locations and complies with UL standards.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 80/56/48/40/24W, with a factory default of 80W.
• Color Temperature Options: Select from 3000K, 3500K, and 4000K, with a factory default of 3500K.
• High CRI: Provides a color rendering index of 94-95 for superior color accuracy.
• Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
• Durable Construction: Features a sheet metal and extruded aluminum housing with a frosted polycarbonate lens.
• Energy Efficient: Achieves efficacy ranging from 134.7 to 150 lm/W.
• Dimming Capability: Includes a dimming driver for 0-10V systems, allowing dimming down to 10%.
• Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.

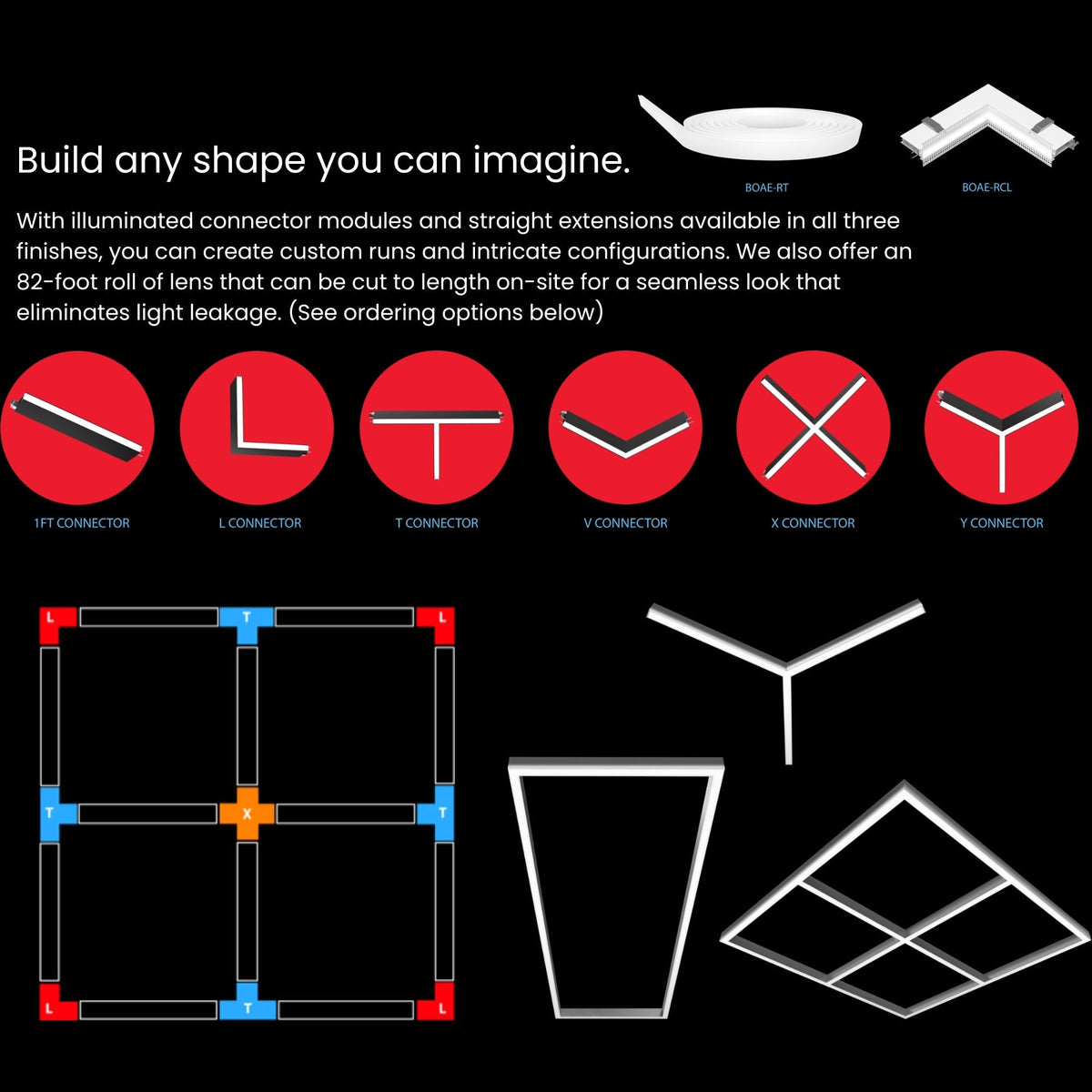

• Continuous Runs: Supports end-to-end connections for continuous illumination up to 600W.
• Environmentally Friendly: Mercury and UV-free, with RoHS-compliant components.

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments
• Hospitality Venues

Performance & Light Output

This fixture provides a high lumen output of up to 10962 lumens with an efficacy of 134.7 to 150 lm/W. It features a CRI of 94-95, ensuring excellent color rendering and uniformity.

Electrical & Controls

Operates on a 120-277V system with a constant current driver. It supports 0-10V dimming and includes surge protection for enhanced reliability.

Construction & Durability

Constructed with sheet metal and extruded aluminum, this fixture includes a frosted polycarbonate lens and is rated for damp locations with an IP20 rating.

Installation & Mounting

Comes with 94 inches of aircraft cable and cable grippers for easy pendant mounting and adjustment. Supports continuous runs up to 600W.

What's Included

• 94 inches of aircraft cable
• Cable grippers
