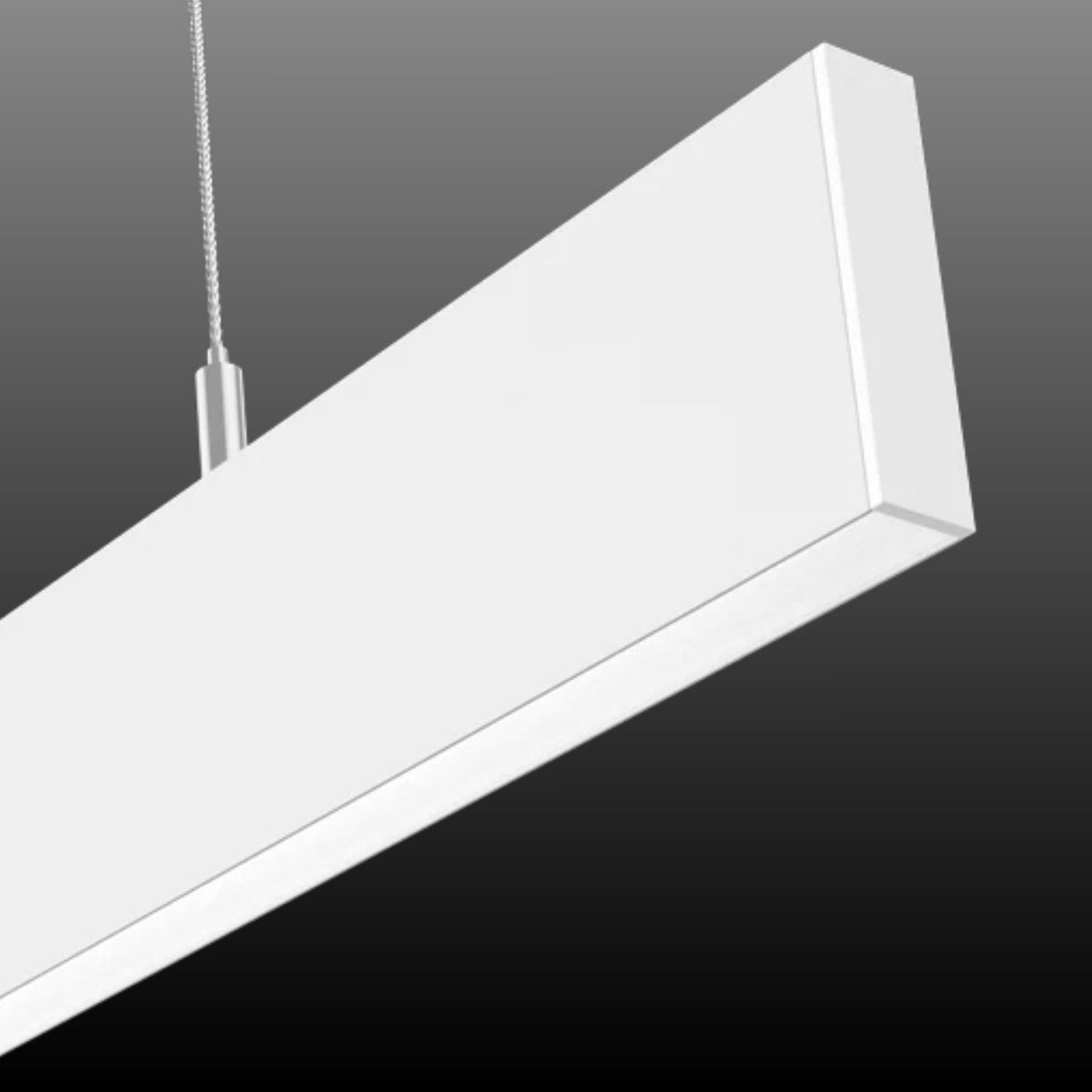

BOA Edge Field Adjustable Linear Light — 80W Configuration

The BOAE8PUW is an 8-foot linear light offering 80W power with a luminous output of up to 10318 lumens. It supports 120-277V input and features a selectable CCT of 3000K, 3500K, and 4000K, making it suitable for various lighting applications. This fixture is damp rated and complies with UL standards, ensuring reliable performance in diverse environments.

Key Features

• Field Adjustability: Offers adjustable wattage and CCT for tailored lighting solutions.
• High Efficacy: Achieves an efficacy range of 123.5-135.6 lm/W for energy-efficient operation.
• Long Lifespan: Designed to last with a 100,000-hour LED lifespan.
• Surge Protection: Includes 1 kV L-L and 2 kV L/N-G surge protection for enhanced durability.
• Construction: Built with sheet metal and extruded aluminum for robust performance.
• Lens Material: Features a frosted polycarbonate lens for even light distribution.
• Continuous Runs: Capable of connecting multiple fixtures for seamless illumination.
• Environmental Compliance: RoHS-compliant, mercury and UV free.
• Mounting: Comes with 94 inches of aircraft cable for easy installation.
• Warranty: Backed by a 5-year limited warranty covering light output and driver performance.

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments
• Hospitality Venues
• Conference Rooms

Performance & Light Output

This fixture provides a luminous output of 9560 to 10318 lumens with a high efficacy of 123.5-135.6 lm/W. It features a CRI of 90+, ensuring excellent color accuracy and consistency over its 100,000-hour lifespan.

Electrical & Controls

The BOAE8PUW operates on a 120-277V system and includes a dimming driver for 0-10V dimming capabilities, allowing for light level adjustments down to 10%. It also features surge protection for enhanced reliability.

Construction & Durability

Constructed with durable sheet metal and extruded aluminum, this fixture is designed for longevity. It includes a frosted polycarbonate lens and is suitable for environments with temperatures ranging from -4°F to 104°F.

Installation & Mounting

Installation is facilitated by 94 inches of aircraft cable with cable grippers, allowing for easy height adjustments. The fixture supports continuous runs for extended lighting applications.

What's Included

• BOAE8PUW Linear Light Fixture
• 94 in. Aircraft Cable
