RAB LPACK Medium Amber LED Wall Pack — 32/24/16W Selectable

The WPLEDMYA is a medium-sized, full cutoff LED wall pack designed to provide wildlife-friendly illumination for sensitive environments. Delivering up to 1,005 lumens, it features field-adjustable 32/24/16W power settings and operates efficiently on a universal 120-277V electrical input. This DarkSky Approved luminaire meets strict coastal zoning requirements and zero-uplight cutoff standards, making it an ideal choice for beachfront commercial buildings and nature reserves.

Key Features

• Cutoff Classification: Full cutoff, zero-uplight design approved by DarkSky International.
• Wattage Selectable: Field-adjustable between 32W, 24W, and 16W to strictly tailor energy consumption.
• Color Temperature: Produces a wildlife-friendly amber wavelength of 592nm.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of smoothly dimming down to 10 percent.
• Photocell: Features an integrated dusk-to-dawn photocell with an easily accessible on/off switch.
• Surge Protection: Built-in 2kV line-to-line and 4kV line-to-ground surge protection.
• Lifespan: Rated for a 50,000-hour LED lifespan based on IES LM-80 results.
• BUG Rating: Achieves a B0 U0 G1 rating for precise downward light control.

Typical Applications

• Coastal properties and beachfront commercial buildings.
• Nature reserves and marine wildlife sanctuaries.
• Observatories and strict dark sky compliance zones.
• Commercial facility perimeters and walkways.
• Locations requiring LUNA-listed amber illumination.

Performance & Light Output

This precision-engineered fixture delivers up to 1,005 lumens with an efficacy of up to 48.6 LPW. It generates a specialized amber wavelength with a dominant 592nm peak, specifically designed to be ignored by sea turtles and nocturnal wildlife. The full cutoff design utilizes a high-reflection polycarbonate reflector and an acrylic lens to optimize downward light distribution, eliminating glare and sustaining superior output over a 50,000-hour rated lifespan.

Electrical & Controls

Powered by a robust constant current Class 2 driver, the unit operates seamlessly on a universal 120-277V electrical input. It comes standard with a 0-10V dimming interface that reliably dims down to 10 percent, maximizing energy savings during off-peak hours. The system includes an integrated 120-277V photocell for automated dusk-to-dawn operation, while built-in 4kV surge protection safeguards internal components from job site power spikes.

Construction & Durability

The medium housing is constructed from rugged die-cast aluminum finished in a highly durable commercial bronze formulated for long-lasting color. Tightly sealed against the elements, the fixture is UL Listed for wet locations when used in downlight applications. It reliably operates in extreme ambient temperatures ranging from -40°F up to 104°F without performance degradation.

Installation & Mounting

Designed for straightforward surface wall mounting, the fixture provides a secure and stable attachment to commercial building exteriors. It includes an integrated junction box and an optional wall plate to simplify the mounting process and accommodate various electrical routing requirements.

What's Included

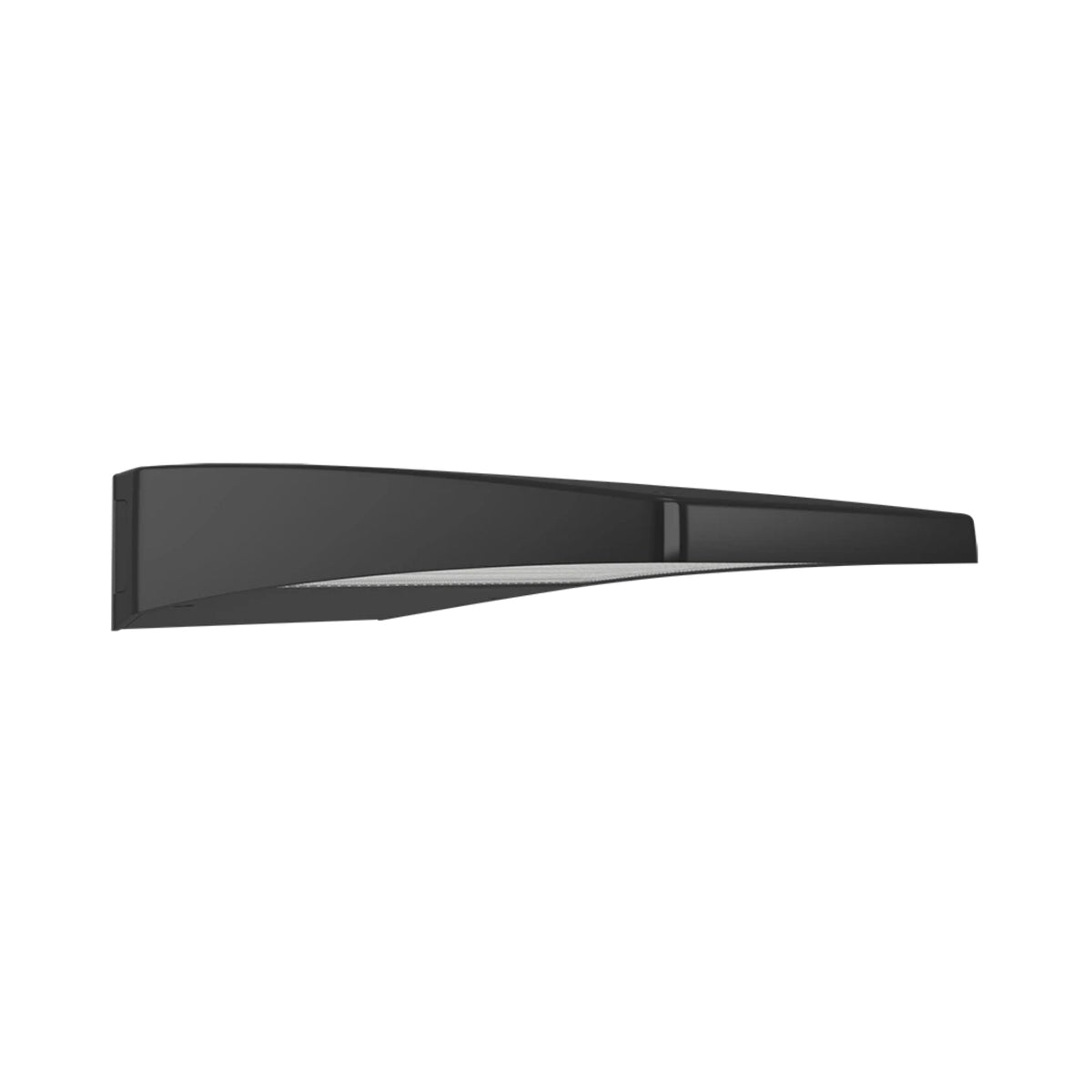

• Medium Amber LED Wall Pack
• Integrated Selectable Photocell
• Mounting Wall Plate
