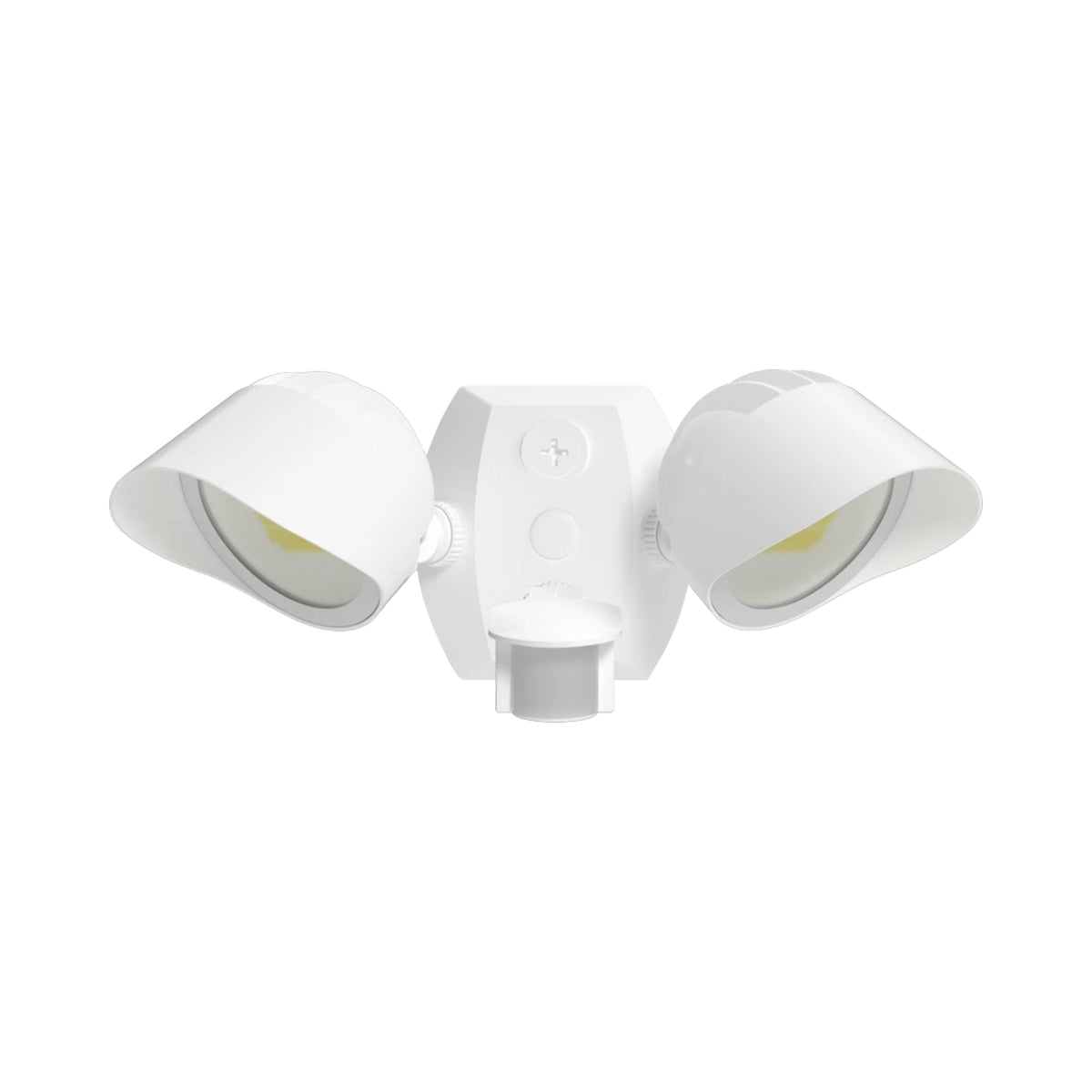

RAB Bullet Field Adjustable Flood Light — 40W Configuration

The RAB SMSBULLET2X20W is a versatile flood light offering 40W power with a maximum output of 4190 lumens. It supports 120-277V input and features selectable CCT options of 3000K, 4000K, and 5000K. This flood light is IP65 rated, making it suitable for wet locations and various outdoor applications.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 40W, 30W, and 20W, with a factory default of 40W.
• Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
• Driver: Constant current driver with a power factor of 98.8% at 120V ensures efficient operation.
• Surge Protection: Equipped with 1 kV surge protection for enhanced durability.
• Construction: Features a die-cast aluminum housing and glass lens for robust performance.
• LED Lifespan: Long-lasting LEDs with a lifespan of 100,000 hours based on IES LM-80 results.
• Beam Spread: NEMA 6H x 6V beam spread for wide area coverage.
• Motion Sensing: Includes motion sensing capabilities with a 180° detection pattern.
• Environmental Compliance: RoHS-compliant and free from mercury and UV.
• Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.

Typical Applications

• Parking Lots
• Building Facades
• Security Lighting
• Landscape Lighting
• Signage Illumination

Performance & Light Output

This flood light delivers between 2319 and 4190 lumens with an efficacy range of 97.5 to 116.3 lm/W. It maintains a CRI of 82-84 and is designed for a long lifespan of 100,000 hours.

Electrical & Controls

Operates on 120-277V with a constant current driver. It supports dimming and includes surge protection. The fixture is equipped with motion sensing and ambient light sensing capabilities.

Construction & Durability

Constructed with a die-cast aluminum housing and glass lens, the fixture is IP65 rated for dust and water protection. It operates in temperatures ranging from -40°F to 104°F.

Installation & Mounting

Comes with a heavy-duty mounting arm, 'O' ring seal, and stainless steel screws for secure and reliable installation.

What's Included

• Flood Light Fixture
• Mounting Arm
• Installation Hardware
