RAB WFRX-6D-K 6 in Smooth Canless Wafer Downlight — 15/13/11W / 2700K-5000K Selectable CCT

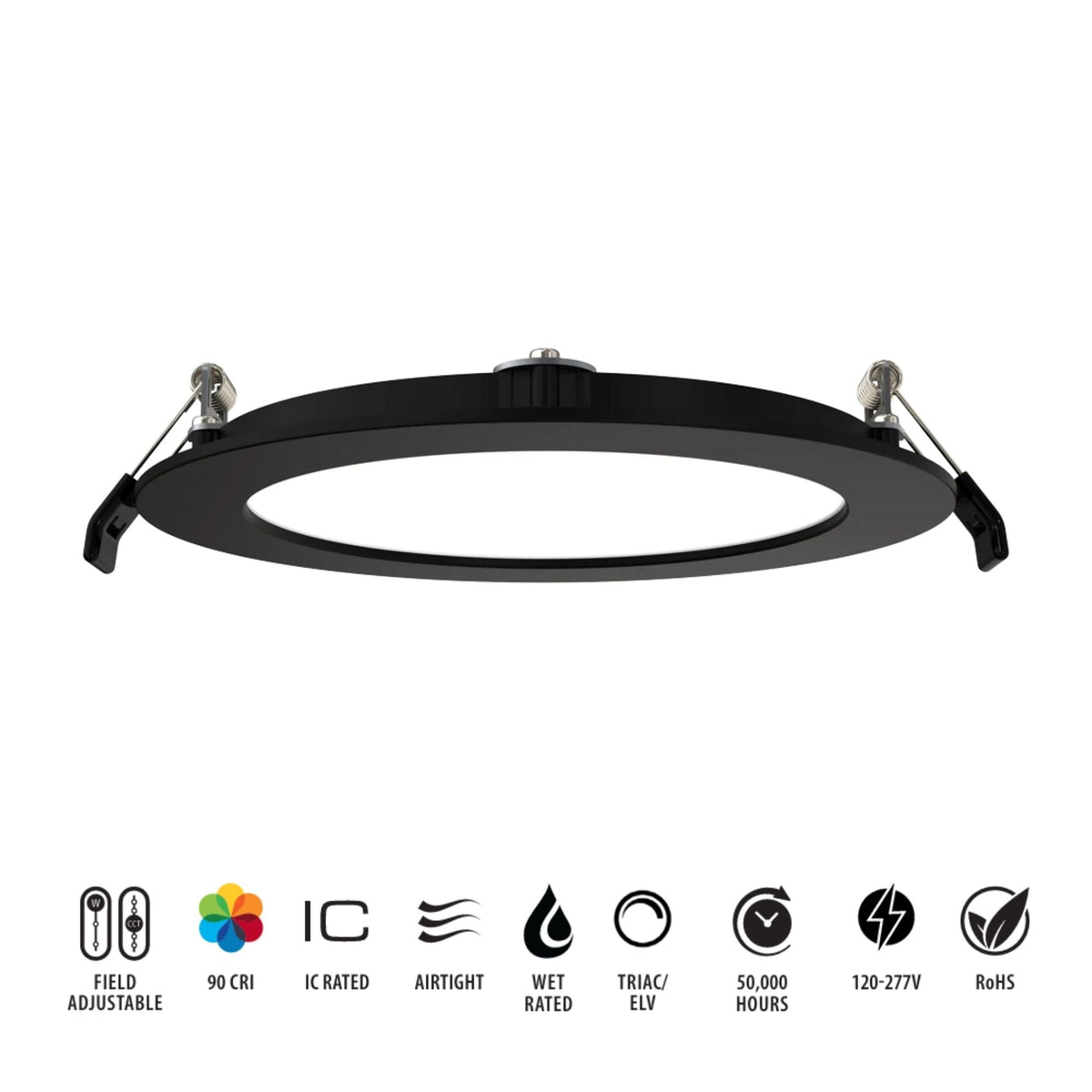

The RAB WFRX-6D-K is a 6 in high-output edge-lit slim canless wafer downlight with a smooth trim in Black finish, delivering up to 1500 lumens at 15W with field-selectable wattage (15/13/11W) and field-adjustable CCT (2700K-5000K via dip switch). Equivalent to a 100W incandescent, it operates at 120-277V with TRIAC/ELV dimming and requires no recessed housing or junction box — mounting directly to the ceiling via spring clips. IC rated and air-tight rated for direct insulation contact.

Key Features

• Input Wattage: 15W / 13W / 11W (field selectable)
• Lumen Output: 1500 / 1250 / 1000 lm (nominal)
• Wattage Equivalency: 100W Incandescent
• CCT: 2700K, 3000K, 3500K, 4000K, 5000K — field adjustable via dip switch
• CRI: 90 CRI, R9 greater than 50
• Beam Angle: 110 degrees plus or minus 10 degrees
• Trim Style: Smooth, Round
• Lens: Polycarbonate light diffuser
• Dimmable: Yes — TRIAC/ELV compatible at 120V, dimmable to 10%
• Input Voltage: 120-277V, 50/60 Hz
• Driver: Constant Current, Class 2, 120-277V, 60 Hz; 120V: 140mA, 208V: 60mA, 240V: 60mA, 277V: 50mA
• L70 Lifespan: 50,000 hours (IES LM-70)
• Energy Star: Certified (ID: 3942797)
• California Title 24 JA8: Compliant
• RoHS: Compliant
• Warranty: 5-year no-compromise

Construction & Aesthetics

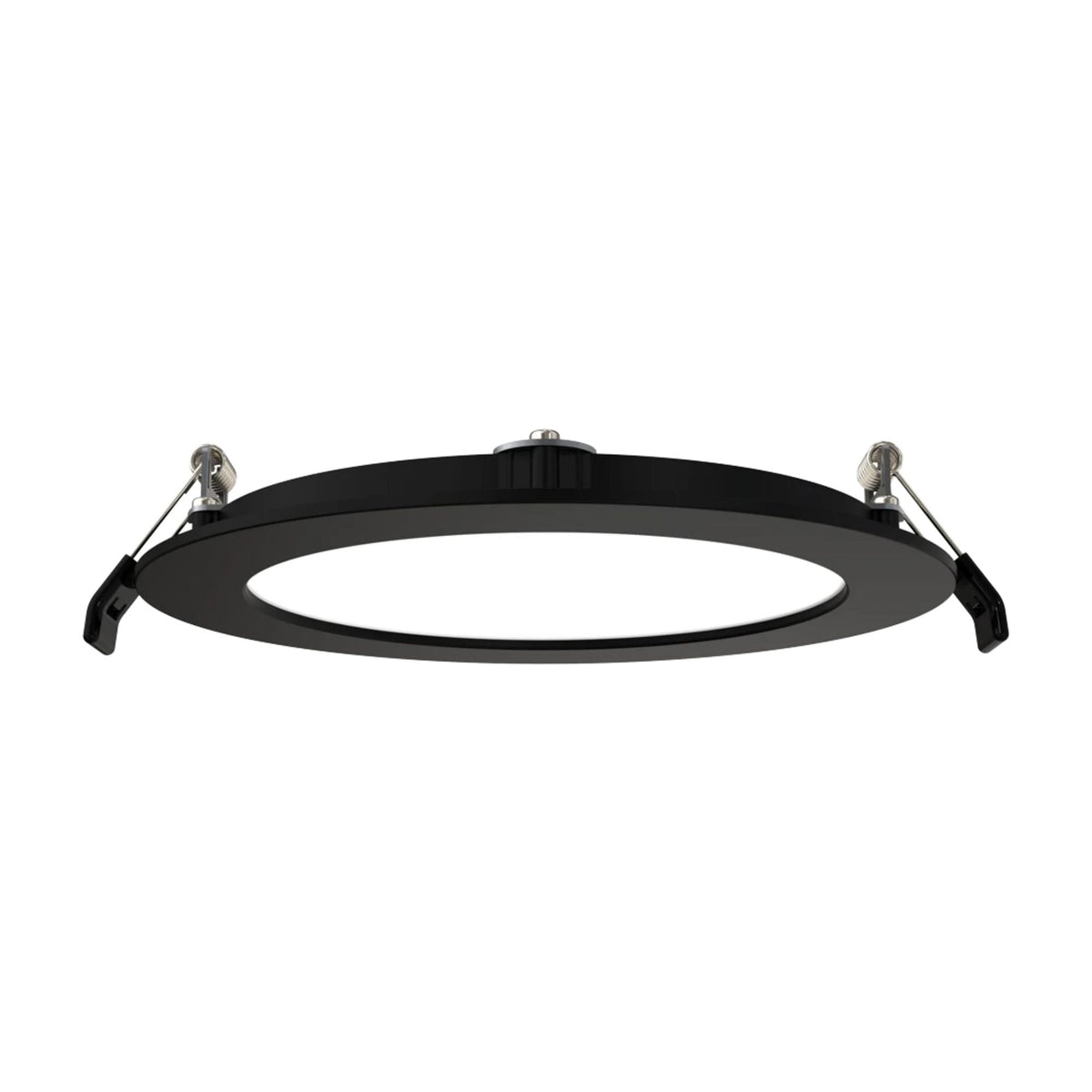

The WFRX-6D-K features a smooth round trim with a polycarbonate light diffuser lens for clean, glare-free illumination. The metal and plastic enclosure is finished in Black and rated for use in dry, damp, and wet environments indoors and outdoors.

Electrical & Installation

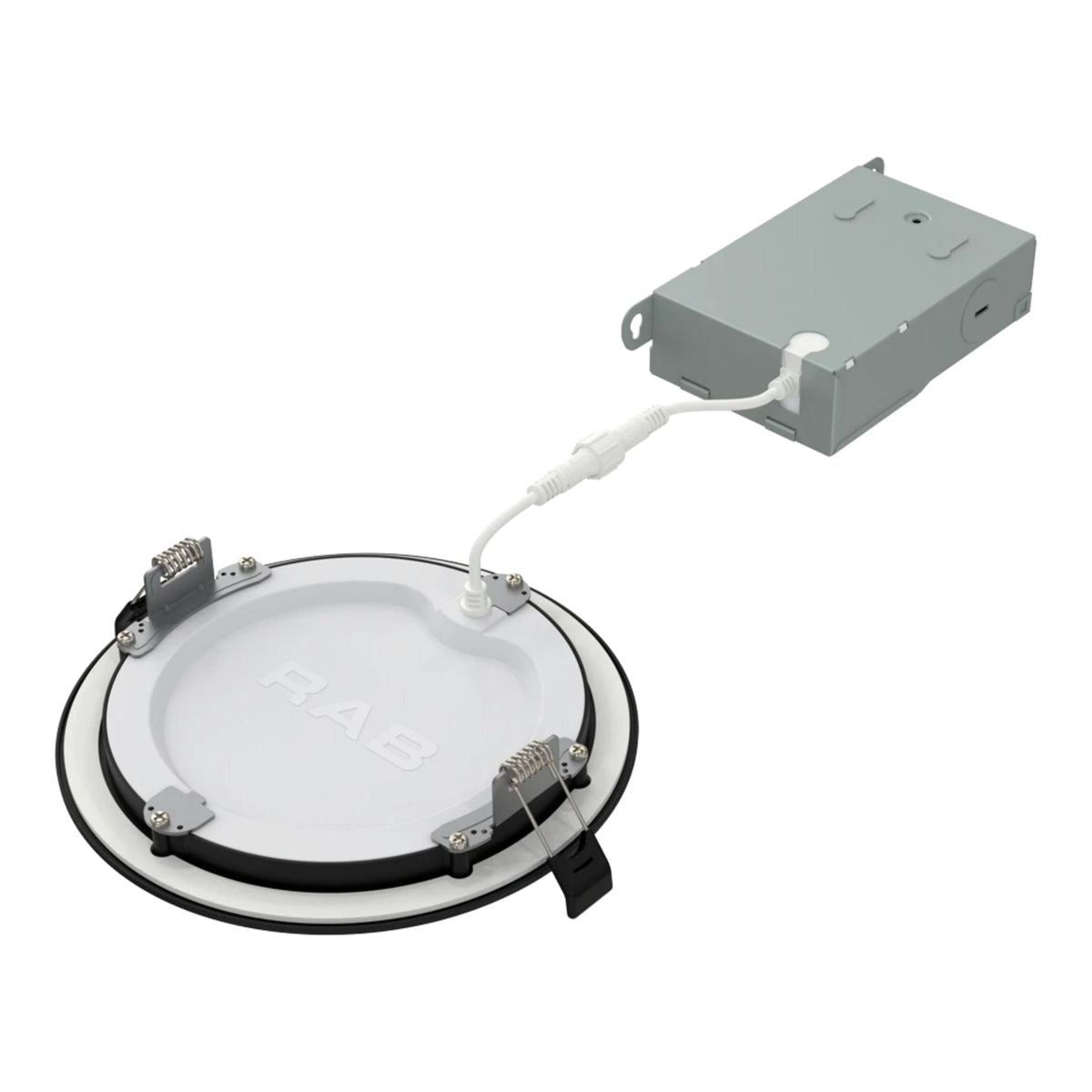

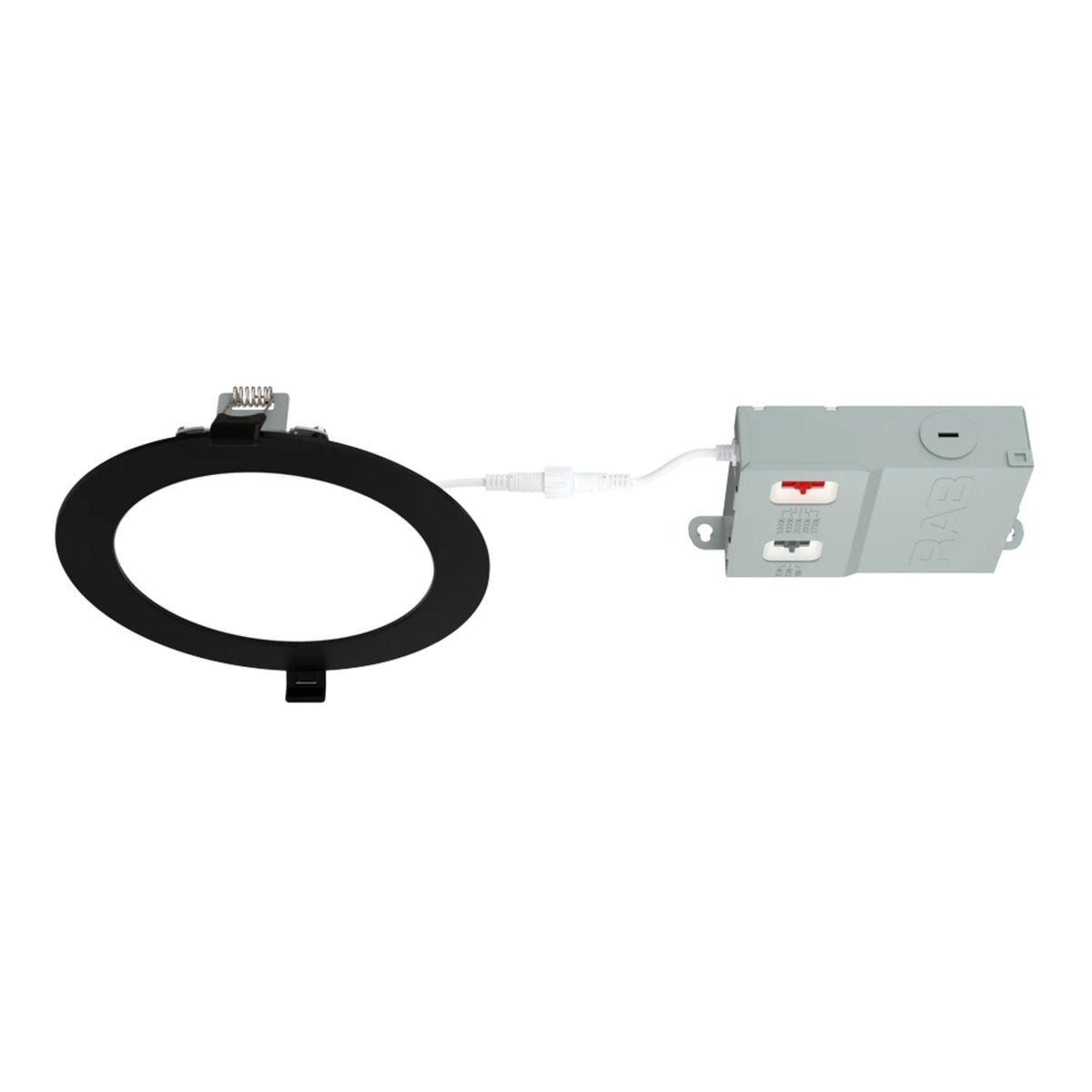

No recessed housing or j-box required. The integrated remote driver/junction box mounts directly to the building structure or mounting frame. Operates at 120-277V with TRIAC/ELV dimming at 120V down to 10%, suitable for both residential and commercial applications. New construction frames are available for new-build applications.

Light Output & Performance

At 15W, the WFRX-6D-K delivers 1500 lumens with a 110-degree beam angle and 90 CRI for accurate color rendering across all CCT settings. Rated LED lifespan is 50,000 hours L70. Wattage steps down to 13W (1250lm) or 11W (1000lm) via field selection.

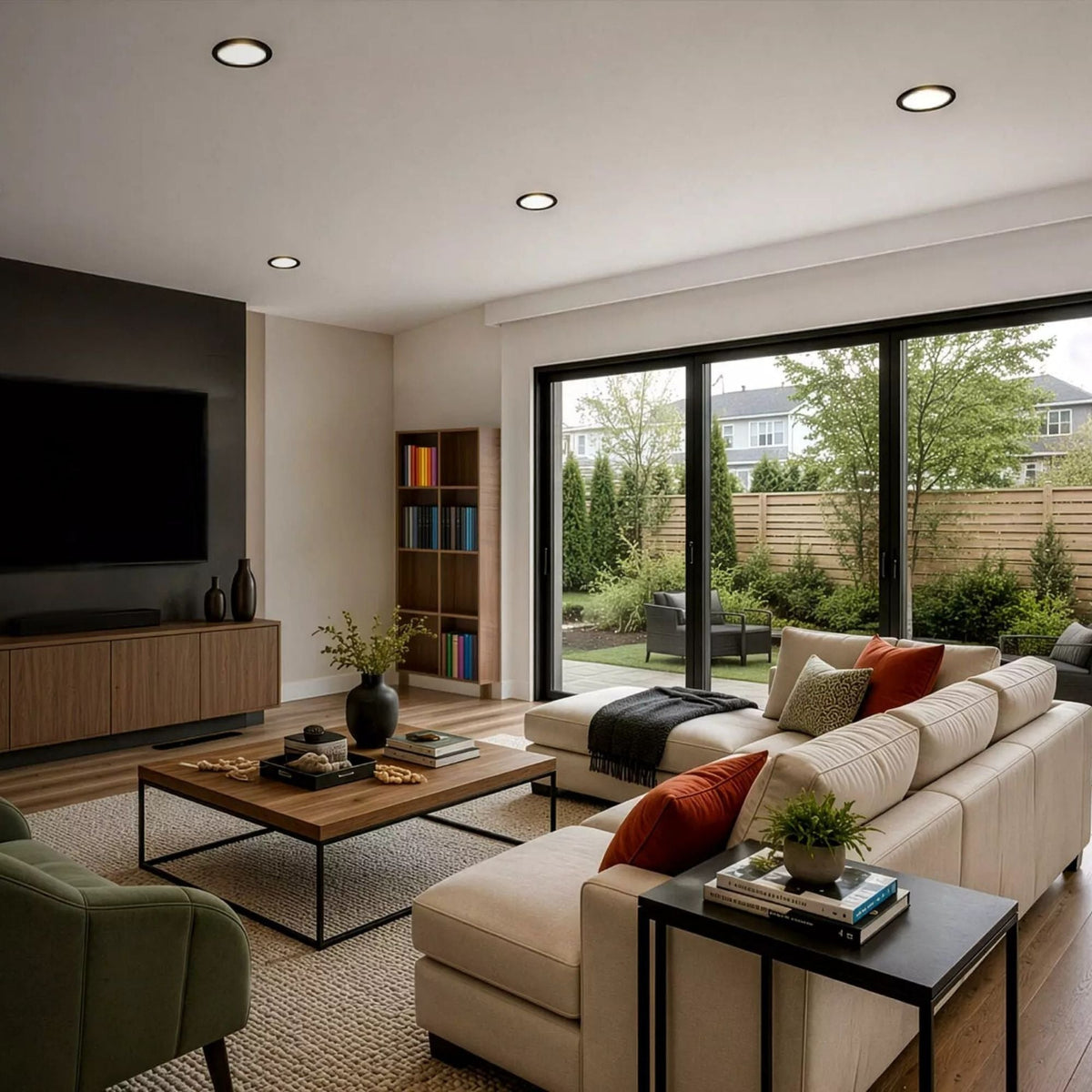

Typical Applications

• Residential remodels and retrofits — no housing required
• Low-clearance ceilings and shallow plenum spaces
• Commercial general lighting: office, retail, hospitality
• Wet locations: bathrooms, covered outdoor canopies, soffits
• Retrofit-free new construction builds requiring 120-277V compatibility
