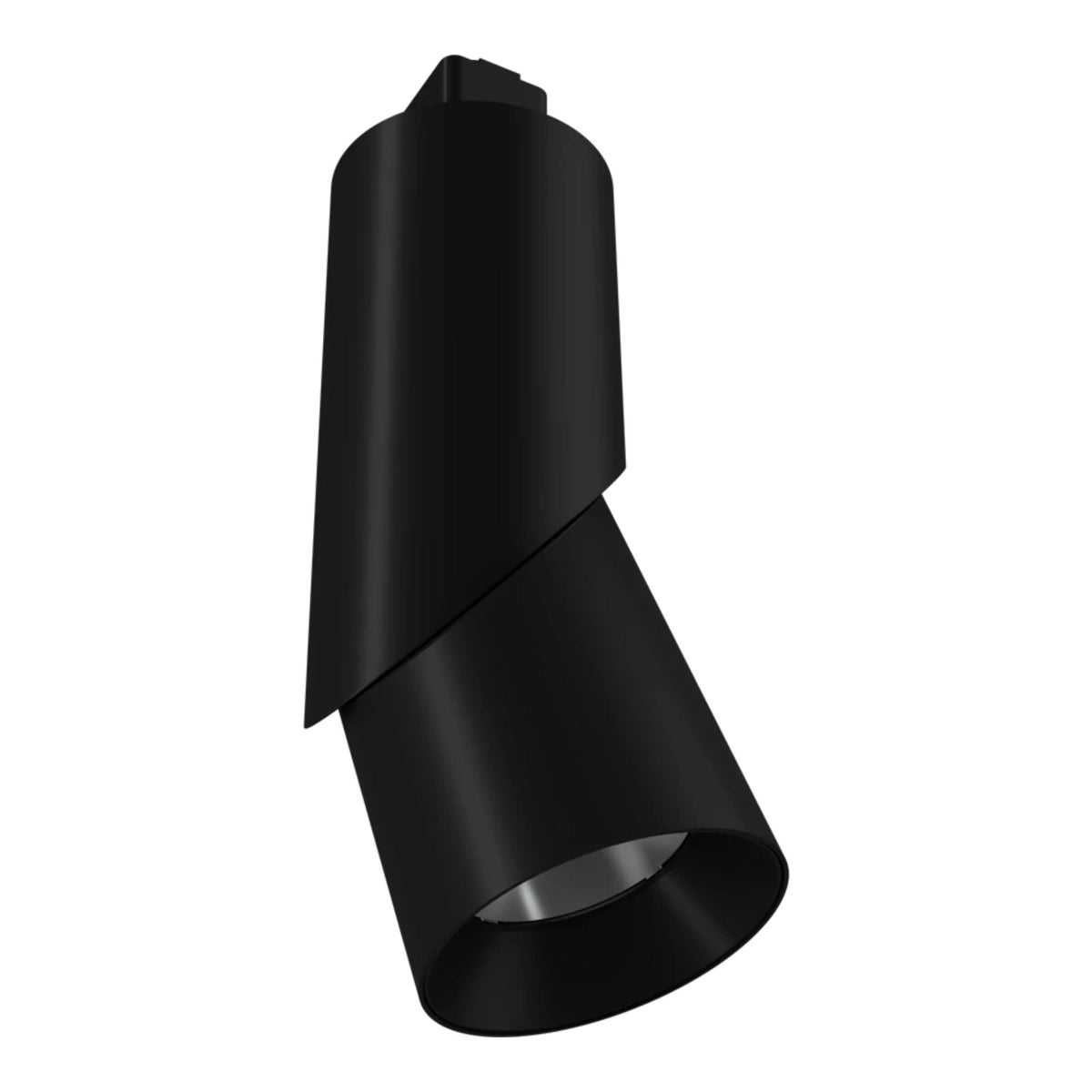

RAB Lighting Pivot Track Head — H-Type / Selectable CCT

The RAB Lighting PIVOT track head is a versatile, field-adjustable lighting solution designed for H-Type track systems. Available in Small, Medium, and Large sizes, with 36° and 24° optics options, and in Black and White finishes — this track head delivers precise, high-efficacy illumination for a wide range of commercial and residential applications. Selectable color temperatures and field-adjustable wattage provide on-site flexibility to match any environment.

Key Features

• Sizes: Available in Small (8W), Medium (6–10W adjustable), and Large (10–20W adjustable).
• Optics: Available in 36° and 24° beam angles for targeted or broader light distribution.
• Selectable CCT: Small: 3000K, 4000K, 5000K. Medium & Large: 2700K, 3000K, 3500K, 4000K, 5000K.
• Lumens: Small up to 812 lm | Medium up to 890 lm | Large up to 1870 lm.
• CRI: 93–97 depending on configuration, for accurate color representation.
• Voltage: Operates at 120V with a constant current driver.
• Dimming: Compatible with 120V TRIAC dimmers for adjustable lighting levels.
• Construction: Durable aluminum housing with a polycarbonate reflector.
• LED Lifespan: 100,000 hours based on IES LM-80 results and TM-21 calculations.
• Compliance: UL Listed for dry locations.
• Warranty: 5-year limited warranty.
• Operating Temperature: Up to 104°F (40°C).

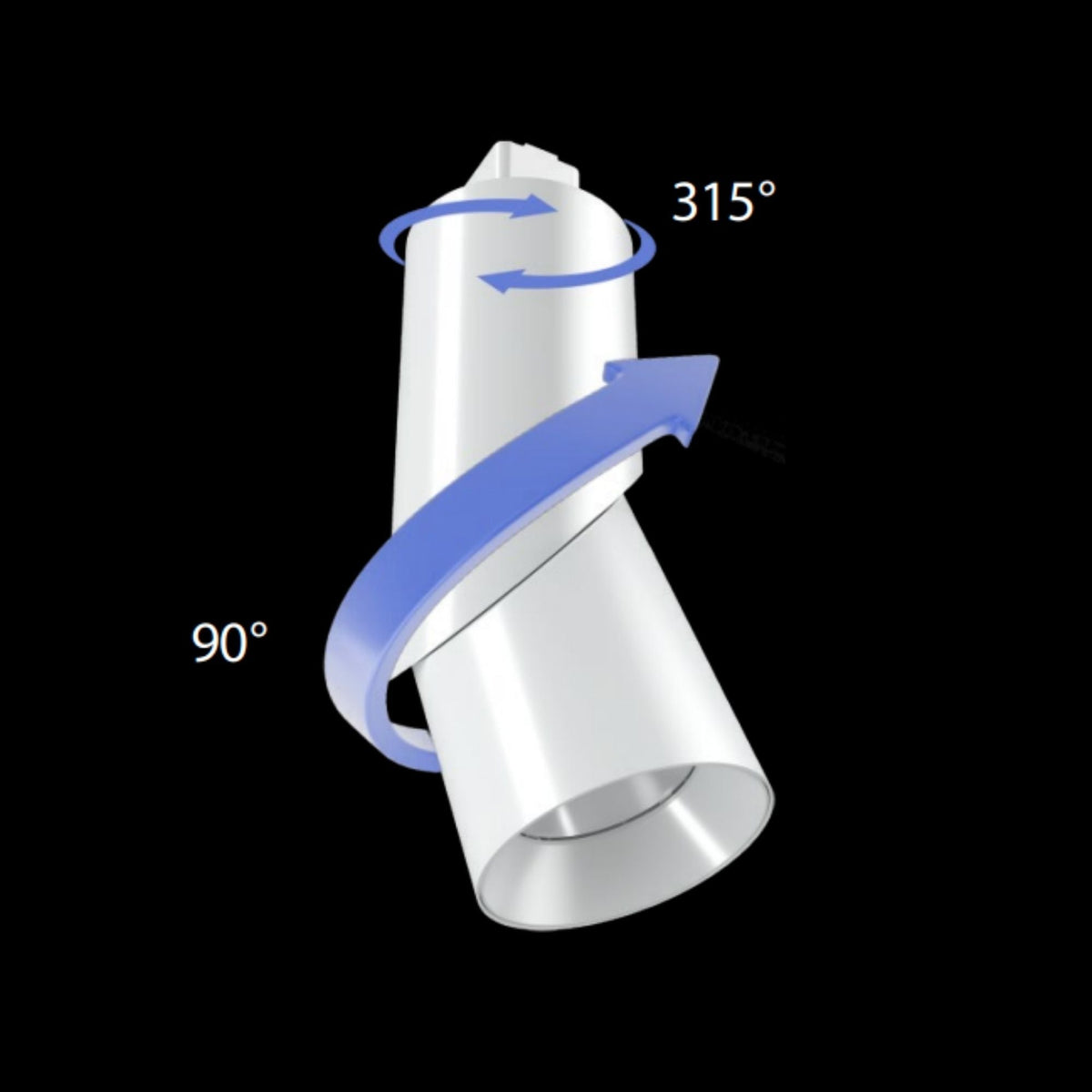

Core Design & Adjustability

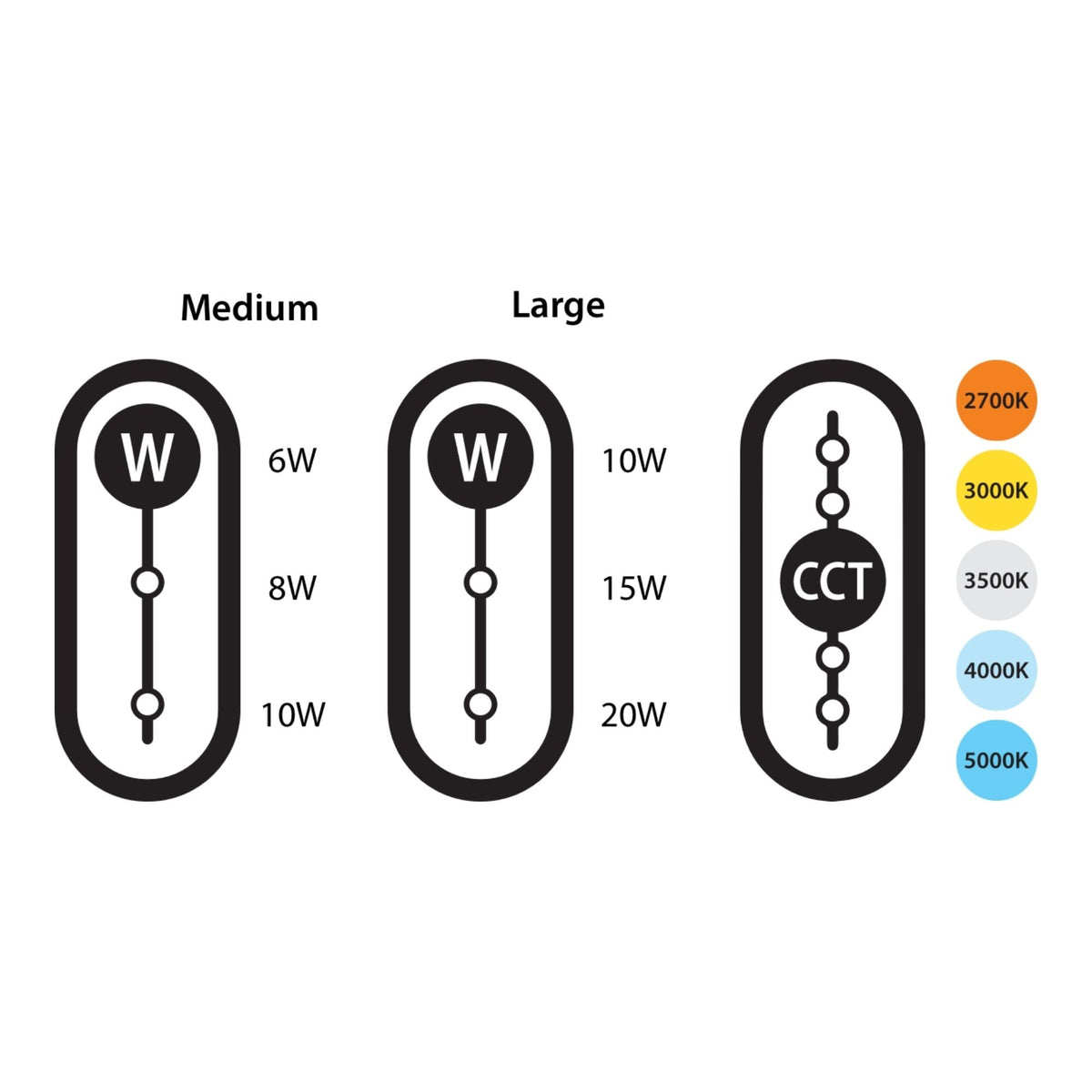

The PIVOT track head features a robust aluminum housing with a polycarbonate reflector, available in Black or White finishes with high-durability, long-lasting color formulations. Its field-adjustable wattage and selectable CCT allow for precise on-site customization across all three sizes.

LED Illumination & Performance

Equipped with high-efficacy COB LEDs, the PIVOT track head delivers consistent, vibrant illumination across all configurations. The Small size provides up to 812 lumens, the Medium up to 890 lumens, and the Large up to 1870 lumens — all with a high CRI of 93–97 for true-to-life color rendering.

Power, Wiring & Compatibility

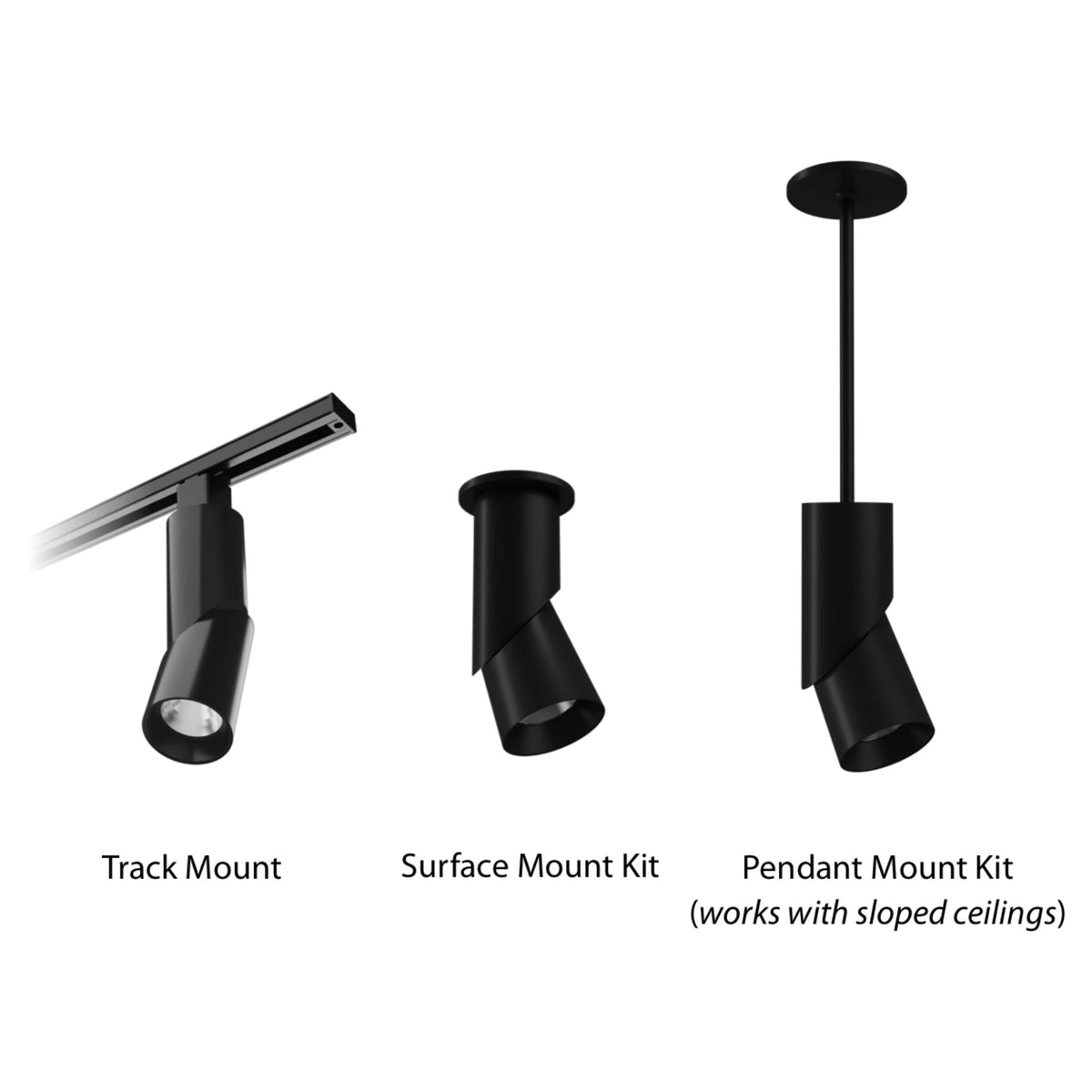

Designed for H-Type track systems, this fixture operates at 120V and supports TRIAC dimming for flexible, adjustable lighting control across all sizes and optic configurations.

Where This Fixture Works Best

• Retail displays and showrooms
• Art galleries and exhibition halls
• Residential living areas
• Commercial office spaces
• Hospitality and restaurant environments

What's Included

• One RAB PIVOT track head unit (size and finish selected at purchase)
