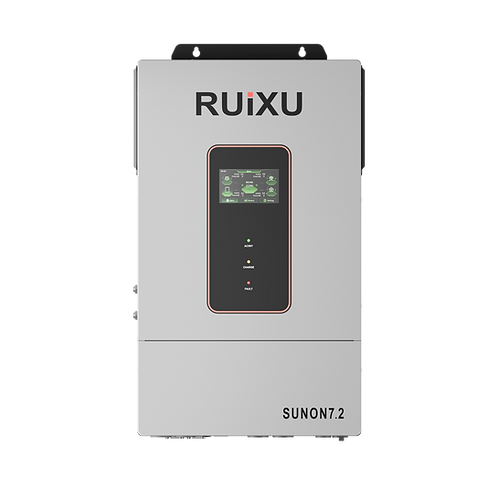

The RUiXU SUNON7.2 is a professional-grade all-in-one off-grid inverter engineered for serious residential and commercial solar energy systems.

Key Features

• Dual MPPT Technology: Two independent MPPT channels deliver 99% tracking efficiency with up to 4,500W per channel for maximum solar harvest.
• 150A Hybrid Charging Capacity: Combines solar and grid charging simultaneously, delivering the fastest possible battery replenishment at any time.
• 120V/240V Flexible Output: Supports both single-phase and split-phase output to power a full range of residential and commercial loads.
• Stackable Parallel Design: Up to 6 units can be stacked for a combined output of 43.2kW, scalable for growing energy demands.
• Rapid Shutdown Compliant: Quickly de-energizes the PV array to protect first responders in emergency situations, meeting UL1741 safety standards.

The SUNON7.2 is built for installations where power capacity and reliability are non-negotiable. Its DSP-controlled pure sine wave output handles sensitive electronics and motor-driven loads with ease, supporting up to 4HP motor startup capability. The intelligent time-sharing charge and discharge function allows users to program energy usage around time-of-use electricity rates, cutting operating costs significantly.

Monitoring and system management are effortless with built-in WiFi and app integration, giving users real-time visibility into power flow, battery status, and system performance from anywhere. The color touchscreen display provides intuitive on-site control, while RS485, CAN, and USB communication ports ensure seamless BMS and third-party integration.

Certified to UL1741 and FCC Part 15 Class B standards, the SUNON7.2 is a dependable long-term investment backed by comprehensive protection functions including short circuit, overload, over/undervoltage, overheat, and PV reverse polarity protection — all housed in a robust IP20-rated enclosure designed for indoor installation.
