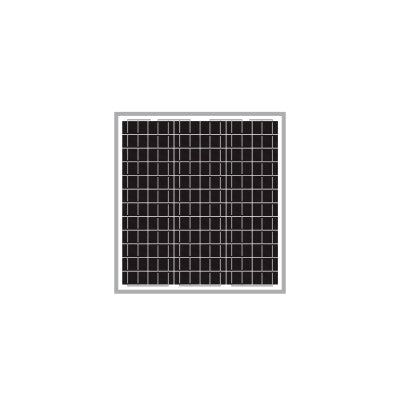

SLD Tech 35W 24V Solar Panel Polycrystalline 72-Cell | SLP035-24C1D2
£80.48
Sale price
£80.48
Regular price
Skip to product information
SLD Tech 35W 24V Solar Panel Polycrystalline 72-Cell | SLP035-24C1D2
£80.48
Sale price
£80.48
Regular price
Shipping calculated at checkout.
SLP035-24C1D2
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The SLD Tech SLP035-24C1D2 is a 35-watt, 72-cell polycrystalline solar panel rated for Class I, Division 2 hazardous locations, delivering 21% module efficiency for safe and reliable 24V DC power in industrial and off-grid applications.
Key Features:
- Class I Division 2 (CID2) Certified: Rated for industries at risk of gas explosions, fully compliant with NFPA and NEC safety standards for Groups A, B, C, and D hazardous environments.
- Enhanced Ignition Safety Design: Specialized design elements minimize ignition risk in volatile environments, adhering strictly to CID2 certification requirements for industrial-grade safety.
- Mechanical Robustness & Reliability: Engineered for durability and consistent performance in volatile and hazardous conditions where both safety and operational efficiency are critical.
- Heavy-Duty Weather-Resistant Construction: Anodized aluminum frame withstands 5,400 Pa positive load and 2,400 Pa negative load, designed for high wind pressure, hail, and heavy snow.
- High-Transparency Tempered Glass: Low-iron tempered glass maximizes light transmission while providing outstanding structural protection in demanding outdoor environments.
The SLP035-24C1D2 delivers a rated output of 35W at 37.02V Vmp with a 21% module efficiency, making it a high-performing solution for hazardous location solar power applications. Its outstanding low-light performance ensures reliable energy generation even under reduced irradiance conditions.
Built with 72 polycrystalline silicon cells in a 6x12 configuration, this panel is engineered for dependable operation across a wide range of industrial and off-grid environments. The 7.57 lb design and compact profile make it practical for installation in space-constrained or restricted-access installations.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 7.57 lbs (3.43 kg) |
| Maximum Power (Pmax) | 35W |
| Module Efficiency | 21% |
| Voltage at Pmax (Vmp) | 37.02V |
| Current at Pmax (Imp) | 0.95A |
| Open-Circuit Voltage (Voc) | 44.06V |
| Short-Circuit Current (Isc) | 1.01A |
| Power Tolerance | 0~±3% |
| Temperature Coefficient of Voc | -(80±10) mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015) %/°C |
| Temperature Coefficient of Power | -(0.5±0.05) %/°C |
| NOCT | 47±2°C |
| Operating Temperature | -40°C to 65°C |
| Maximum System Voltage | 1000V DC |
| Cell Type | Polycrystalline Silicon |
| Number of Cells | 72 (6 x 12) |
| Module Dimensions | 21.46 x 20.24 x 1.38 in (545 x 514 x 35 mm) |
| Wind Load | 2,400 Pa |
| Snow Load | 5,400 Pa |
| Module Fire Performance | Type 1 (US) |
| Fire Resistance Rating | Class C (Canada) |
| PV Module Application Class | Class A |
| Temperature Code Rating | T3C |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C & D |
| Product Warranty | 5 Years |
| Power Warranty | 10 Years |
