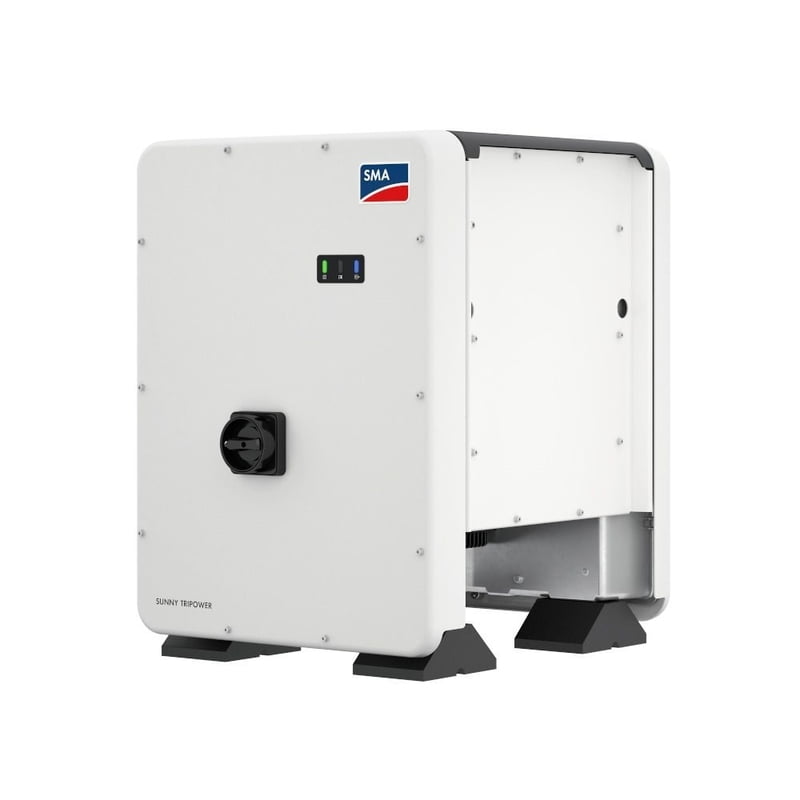

SMA Sunny Tripower Core1 62-US 480V 62.5KW 120A String Inverter | STP 62-US-41
£4,452.63
Sale price
£4,452.63
Regular price
Skip to product information
SMA Sunny Tripower Core1 62-US 480V 62.5KW 120A String Inverter | STP 62-US-41
£4,452.63
Sale price
£4,452.63
Regular price
Shipping calculated at checkout.
STP-62000TL-US-41
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The SMA Sunny Tripower CORE1 STP 62-US-41 / 62000TL-US-41 is the world's first free-standing commercial PV inverter, purpose-built to maximize power output at the utility edge while delivering the fastest, most cost-effective commercial solar installation available on the market today.
Key Features
- Fully Integrated Free-Standing Design No additional racking required for rooftop installation, with integrated DC and AC disconnects, overvoltage protection, and 12 direct string inputs enabling up to 60% faster commercial PV system installation.
- Six Independent MPP Trackers Delivers maximum power production with flexible stringing configurations and ShadeFix string-level shade management for optimized energy harvest across the entire array.
- Next-Gen DC AFCI Arc-Fault Protection Certified to UL 1699B Ed. 1, providing industry-leading arc-fault protection alongside integrated SunSpec PLC signal for 2017 NEC rapid shutdown compliance.
- SMA Smart Connected Monitoring Built-in I-V curve diagnostics, intelligent string performance monitoring, and proactive O&M support minimize field service time and maximize system uptime.
- ennexOS Energy Management Platform Enables comprehensive commercial energy solutions with Integrated Plant Control and Q on Demand 24/7 reactive power support for maximum system ROI.
The STP 62-US-41 delivers 62,500W AC nominal power at 97.5% CEC efficiency, accepting up to 93,750Wp DC array power across a 150–1000V MPPT operating range with a maximum output current of 80A. Its OptiCool variable-speed forced convection cooling system maintains reliable thermal performance across a -25°C to +60°C operating range.
Certified to UL 1741, UL 1741 SA/SB, UL 1699B Ed. 1, UL 3741, and IEEE 1547-2018, the CORE1 meets California Rule 21, HECO SRD V2.0, and all major US grid interconnection standards. Advanced grid support capabilities include L/HFRT, L/HVRT, Volt-VAr, Volt-Watt, Frequency-Watt, and Ramp Rate Control for full utility compliance.
Network connectivity includes dual Ethernet ports, RS485, and optional WLAN, with SMA Modbus, SunSpec IEEE 1547 Modbus, and Webconnect data protocols supported as standard. A 10-year standard warranty with optional extensions to 15 or 20 years makes the CORE1 a proven, low-risk long-term commercial investment.
Technical Specifications
| Specification | Details |
|---|---|
| Model | STP 62-US-41 |
| AC Nominal Power | 62,500W |
| Maximum Apparent Power | 66,000 VA |
| Maximum Array Power (DC) | 93,750 Wp STC |
| Maximum System Voltage | 1000V |
| Rated MPP Voltage Range | 550–800V |
| MPPT Operating Voltage Range | 150–1000V |
| Minimum DC Voltage / Start Voltage | 150V / 188V |
| MPP Trackers / Strings per MPP | 6 / 2 |
| Max Usable Input Current | 120A total / 20A per MPP tracker |
| Max Short Circuit Current (MPPT / String) | 32A / 30A |
| Output Phases / Line Connections | 3 / 3-(N)-PE |
| Nominal AC Voltage | 480V / 277V WYE |
| AC Voltage Range | 244–305V |
| Maximum Output Current | 80A |
| Rated Grid Frequency | 60Hz |
| Grid Frequency Range | 50Hz, 60Hz / -6Hz to +6Hz |
| Power Factor at Rated Power | 1 (adjustable 0.0 leading to 0.0 lagging) |
| THD | <3% |
| CEC Efficiency | 97.5% |
| Topology | Transformerless |
| Cooling | OptiCool (forced convection, variable speed fans) |
| Operating Temperature Range | -25°C to +60°C (-13°F to +140°F) |
| Storage Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Audible Noise (full power @ 1m) | 65 dB(A) |
| Internal Consumption at Night | 5W |
| Enclosure Protection Rating | Type 4X, 3SX (UL 50E) |
| Max Relative Humidity | 100% non-condensing |
| Mounting | Free-standing with included mounting feet |
| DC Connection | Amphenol UTX PV or H4Plus connectors |
| AC Connection | Screw terminals 4 AWG to 4/0 AWG CU/AL |
| Network Interfaces | Ethernet (2 ports), RS485, WLAN (optional) |
| Data Protocols | SMA Modbus, SunSpec IEEE 1547 Modbus, Webconnect |
| Dimensions (W x H x D) | 621 x 733 x 569 mm (24.4 x 28.8 x 22.4 in) |
| Weight | 185 lbs (84 kg) |
| Certifications | UL 1741, UL 1699B Ed. 1, UL 1998, UL 3741, CSA 22.2 107-1 |
| Grid Standards | IEEE 1547-2018, UL 1741 SA/SB, CA Rule 21, HECO SRD V2.0 |
| FCC Compliance | FCC Part 15 Class A |
| Standard Warranty | 10 Years |
| Optional Warranty Extension | 15 / 20 Years |
