Part Number: SP40001

Hoppe Thumb Turn Shaft Bushing Washer and Spindle Fork Thumb Turn Shaft

Replacement part for: For Hoppe HLS 9000 Multipoint Sliding Door handle Crescent Thumb Turn Sliding Patio Door handle Set (not included)

Style: Shaft Only STOCK or Kit SPECIAL ORDER

• What's Included In Shaft Only
• 1 Shaft

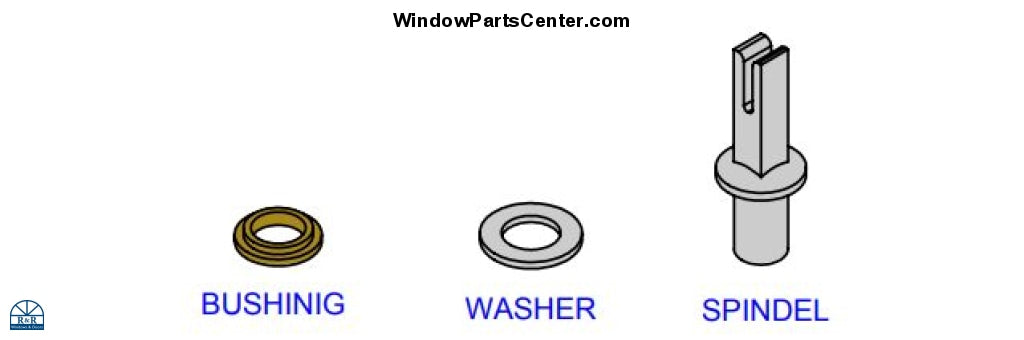

• What's Included In Kit( SEPCAIL ORDER NO RETURNS):
• 1 Bushing
• 1 Washer

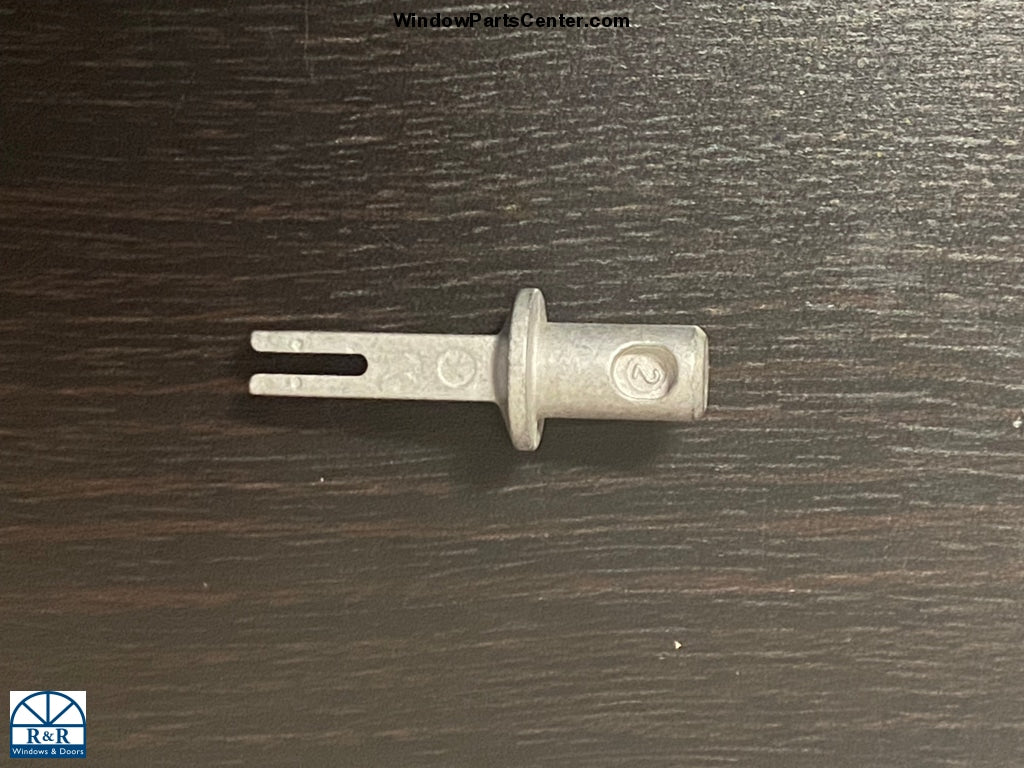

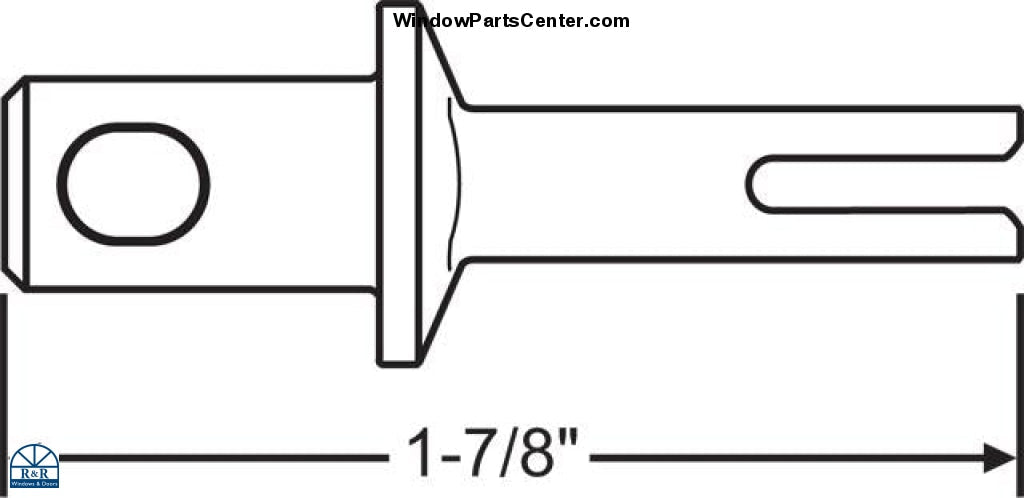

• 1 Spindle Fork Thumb Turn Shaft (also called Thumbtrun Shaft Coupling)

To Have Been Used on: Hoppe HLS 9000 Genoa and Verona, Sierra Pacific CA Sliding Patio Doors

Known Part Numbers: HPS2070803BU / HPS2080737WS / HPS2061421SP

To Install:

1. Remove Handles trim from door.
2. Remove the set screw from the Crescent Thumb Turn
3. Replace the shaft Bushing, Washer and Spindle Fork
4. Reattach Crescent Thumb Turn with set screw (set screw will insert into hole opposite side of the prong fork end of the spindle).
5. Reinstall handles set trim

Hoppe HLS 9000 Multipoint Sliding Door handle Installation Instructions (you will be redirected to Hoppe website)

Accessories Sold Separately:

• Crescent Knob
• Cylinder Knob Set Screw
• HLS 9000 Sliding Door Hardware
