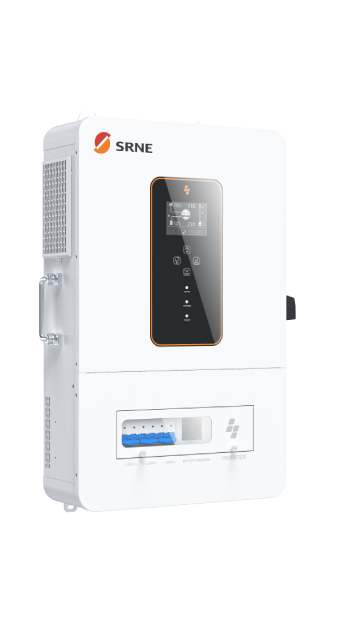

SRNE ABP 10,000W 48V Split-Phase Off-Grid Solar Storage Hybrid Inverter
£1,445.99
Sale price
£1,445.99
Regular price
£1,850.00
Shipping calculated at checkout.
ABP48100U200-H
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The SRNE ABP48100U200-H is a 10kW 48V off-grid solar storage inverter designed for residential split-phase and parallel applications, combining dual MPPT solar charging, battery management, and pure sine wave AC output in a compact indoor unit.
Key Features
- Dual High-Efficiency MPPT Input Two independent MPPT channels deliver up to 99.9% tracking efficiency with a maximum combined PV array input of 11,000W and open-circuit voltage up to 500Vdc per channel.
- Parallel Scalability up to 60kW Supports up to 6 units in parallel for single-phase, split-phase, or three-phase output configurations, enabling scalable residential and light commercial system designs.
- Time-of-Use Charging & Discharging Built-in time-slot scheduling allows charging and discharging to be optimized around peak and valley electricity pricing for maximum cost savings.
- Self-Use and Batteryless Output Modes Supports self-consumption mode with configurable energy source priority, and a without-battery anti-backflow mode for grid-supplemented solar-only operation.
- Lithium Battery BMS Communication Communicates with Li-ion battery BMS via RS485 or CAN protocol for precise charge/discharge control, improved battery longevity, and enhanced system safety.
The ABP48100U200-H delivers 10,000W rated output with a maximum peak power of 20,000VA, supporting 120Vac single-phase or 240Vac split-phase output at 50/60Hz with a 6HP motor start capability. Maximum hybrid charging current is 200A, with mains and generator charging capped at 120A, and the unit supports 48V Li-ion, Lead-Acid, and user-defined battery types across a 40–60Vdc voltage range.
The energy-saving mode minimizes no-load losses during periods of low consumption, and independent circuit breaker protection is provided for load, mains, generator, and battery circuits. Mains and generator input voltage range is 90–275Vac, covering a wide range of grid and generator supply conditions.
Housed in an IP20 indoor enclosure with internal fan cooling, the ABP48100U200-H measures 723 x 448 x 150mm and operates across a temperature range of -10°C to +55°C with derating above 45°C. Mobile app monitoring and computer-based commissioning via USB are both supported as standard.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ABP48100U200-H |
| Rated Output Power | 10,000W |
| Max Peak Power | 20,000 VA |
| Rated Output Voltage | 120Vac (Single-phase) / 240Vac (Split-phase) |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Parallel Capacity | 1–6 Units |
| Battery Type | Li-ion / Lead-Acid / User Defined |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40–60Vdc |
| Max MPPT Charging Current | 200A |
| Max Mains/Generator Charging Current | 120A |
| Max Hybrid Charging Current | 200A |
| Number of MPPT Trackers | 2 |
| Max PV Array Power | 5,500W + 5,500W |
| Max Input Current per MPPT | 22A |
| Max Voltage of Open Circuit | 500Vdc + 500Vdc |
| Mains/Generator Input Voltage Range | 90–275Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
| Protection Degree | IP20 — Indoor Only |
| Operating Temperature Range | -10°C to +55°C (>45°C derated) |
| Cooling Method | Internal Fan |
| Noise | <60dB |
| Dimensions (W x H x D) | 723 x 448 x 150mm |
| Weight | 61.7 lbs (28 kg)s |
