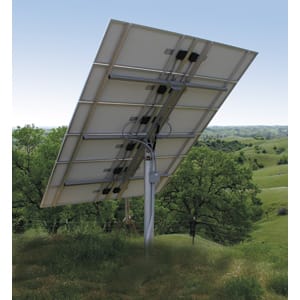

The Solar Rackworks Top-of-Pole Mount for 15 Modules (41" × 81") is a heavy-duty, commercial-grade solar mounting solution engineered to support fifteen photovoltaic modules in a high-capacity pole-mounted array. Designed for large off-grid systems, agricultural power stations, remote communications, signage, commercial solar installations, and utility or community projects where roof or ground mounting is limited, this mount raises the solar array above obstructions for maximum sunlight exposure and energy production.

Constructed using high-strength 6061-T6 structural aluminum rails and reinforced steel framework, this top-of-pole system is built for long-term outdoor durability and robust performance in harsh environments. Corrosion-resistant finishes help extend service life in coastal, agricultural, and high-humidity locations. The system’s adjustable tilt capability allows for seasonal optimization of panel angles throughout the year, enhancing overall energy harvest.

Engineered to mount over an installer-supplied steel pole, the modular rail design accommodates a wide range of standard framed solar panels, making it a versatile choice for large pole-mounted solar arrays that require reliable structural integrity and field adaptability.

Key Features

• Supports Fifteen Solar Modules: Designed for high-capacity 15-panel configurations within a 41″ × 81″ layout

• Heavy-Duty Structural Design: 6061-T6 aluminum rails with reinforced steel mounting framework

• Seasonal Tilt Adjustability: Adjustable tilt angles to optimize annual solar exposure

• Corrosion-Resistant Construction: Anodized aluminum and coated steel for long service life

• Pole-Mounted Stability: Engineered for secure installation on an 8″ Schedule 40 steel pole

• High Wind & Snow Load Capability: Built for demanding environmental and load conditions

• Universal Framed Module Compatibility: Compatible with most standard solar panels within the footprint

• Stainless Steel Hardware Included: Durable hardware supplied for secure installation

⚠ Important Installation Notice

⚠ Please note: The required mounting pole — a standard 8-inch Schedule 40 galvanized steel pipe — is not included and must be supplied by the installer. This allows for on-site flexibility while maintaining the structural requirements for a safe and durable foundation.

Compatible Module Sizes

This top-of-pole mount is designed to accommodate common residential and commercial solar module dimensions, including:

• 67.8″ × 44.65″

• 39″ × 79″

• 41″ × 81″

Designed to support fifteen modules within the 41″ × 81″ mounting configuration. Final compatibility depends on module frame thickness and mounting hole spacing.

Key Specifications
