Description
VICTRON ENERGY ▶ BLUESOLAR SERIES

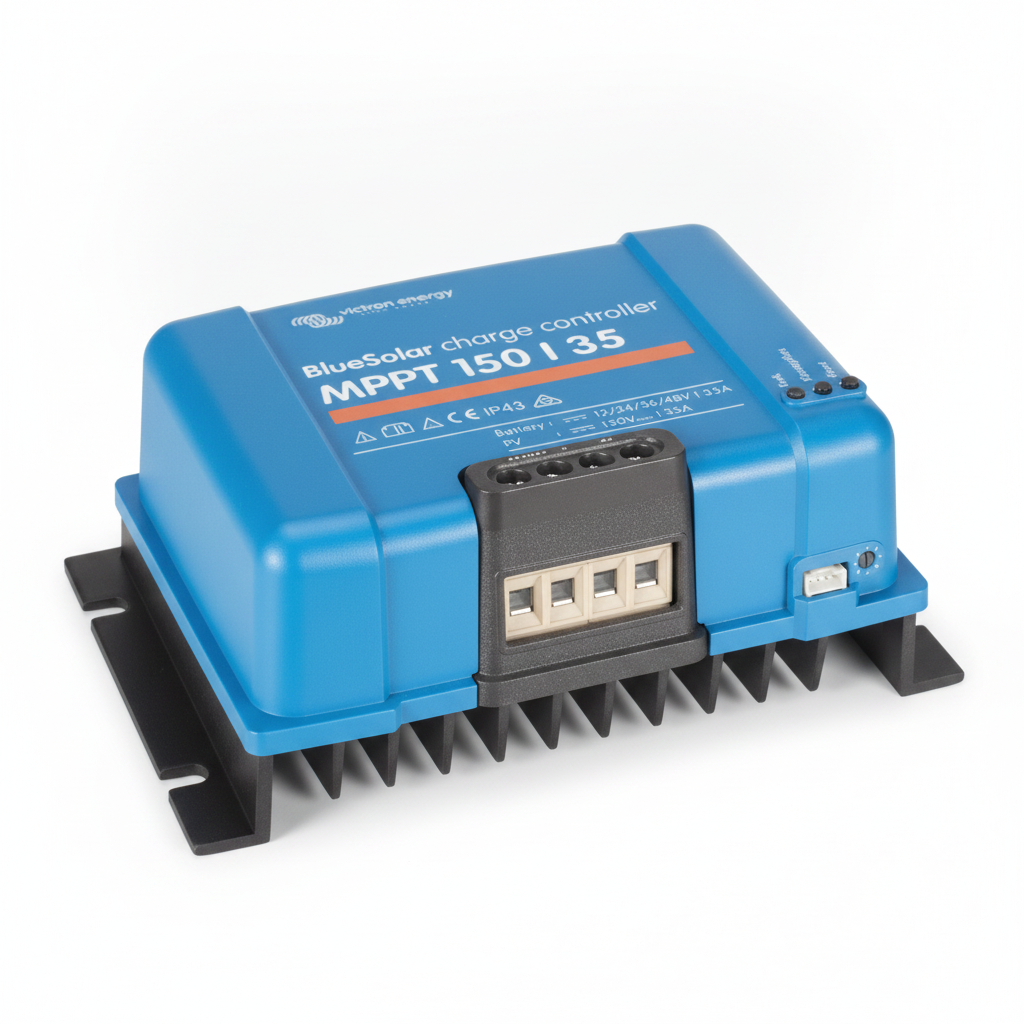

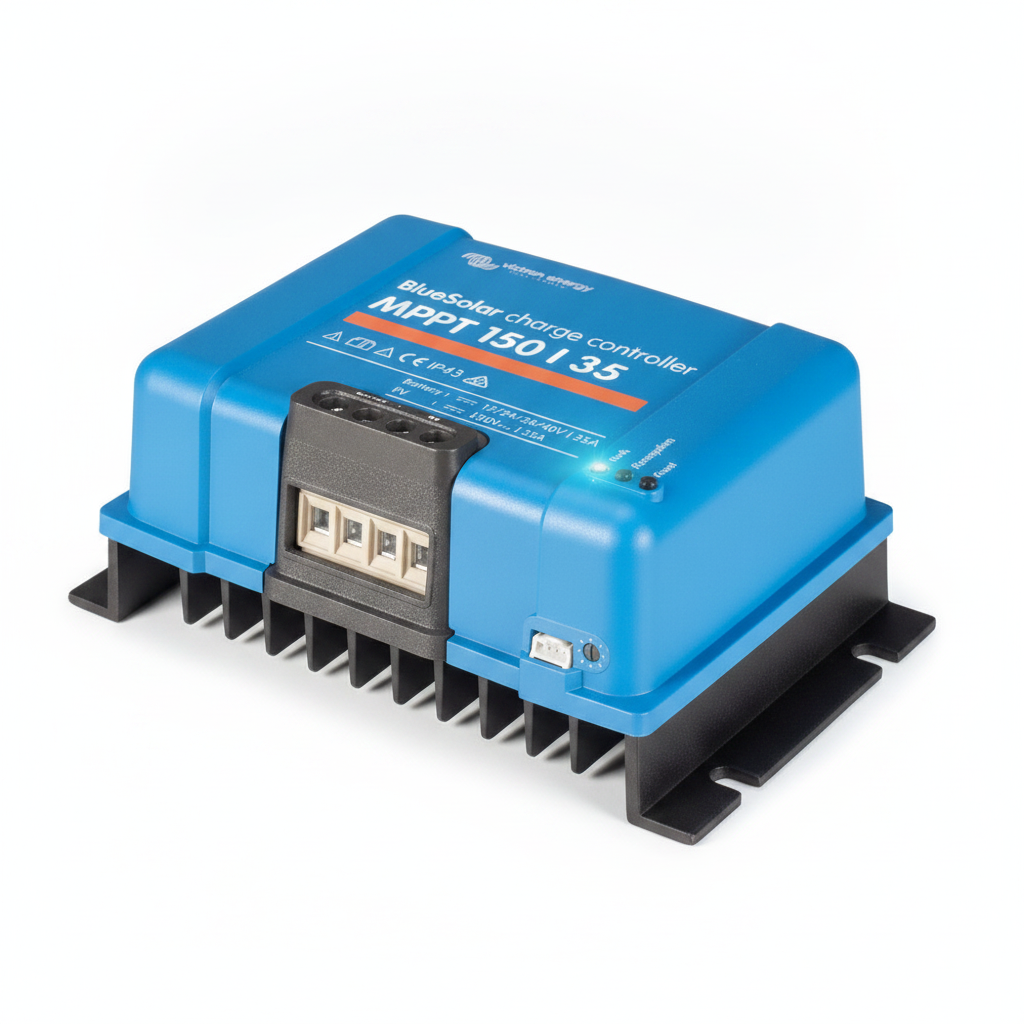

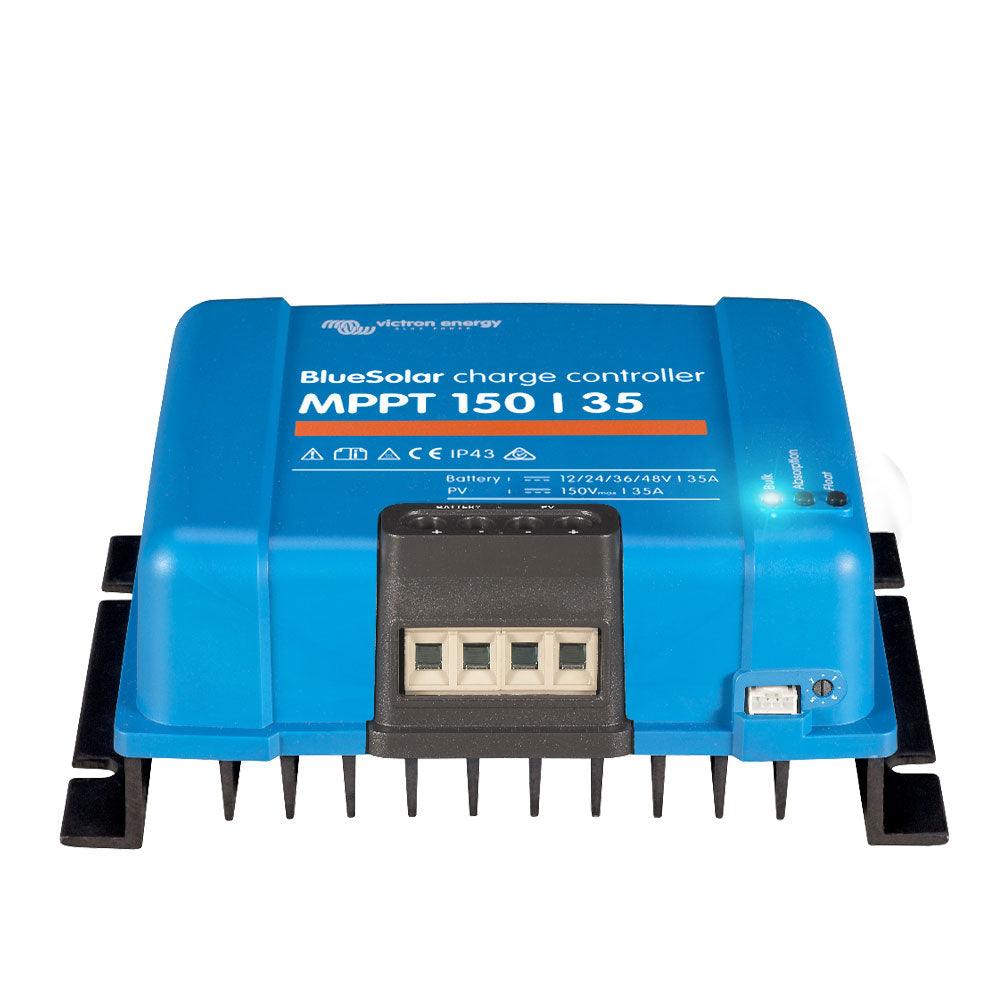

Victron BlueSolar MPPT 150/35 Solar Charge Controller
35A | 12/24/48V | 150V PV Input
The Victron BlueSolar MPPT 150/35 is a high-performance solar charge controller designed to maximise energy harvest from your photovoltaic (PV) array and efficiently charge your battery bank. Utilising advanced Maximum Power Point Tracking (MPPT) technology, this controller intelligently optimises power delivery, ensuring your batteries reach full charge in the shortest possible time and maintaining their health for extended life.
Ideal for a wide range of off-grid and grid-tied solar applications, the BlueSolar MPPT 150/35 automatically adapts to 12V, 24V, or 48V battery systems, handling a maximum PV open circuit voltage of 150V. Its robust design and comprehensive protection features make it a reliable choice for demanding solar installations in the UK and beyond.
KEY BENEFIT: Ultrafast MPPT ensures up to 30% more energy harvest compared to PWM controllers.
KEY FEATURES
| ▶ Ultrafast MPPT Technology — Maximises energy harvest by up to 30% over PWM controllers, especially under continuously changing light conditions. |
| ▶ Advanced Partial Shading Detection — Innovative algorithm ensures optimal power point tracking even when partial shading creates multiple power peaks. |
| ▶ Outstanding Conversion Efficiency — Achieves over 98% efficiency without a cooling fan, delivering full output current up to 40°C. |
| ▶ Flexible Charge Algorithm — Features eight pre-programmed algorithms and is fully programmable for various battery chemistries. |
| ▶ Extensive Electronic Protection — Includes over-temperature, PV short circuit, PV reverse polarity, and PV reverse current protection. |
| ▶ Internal Temperature Sensor — Compensates absorption and float charge voltages for ambient temperature, ensuring accurate and safe charging. |
| ▶ VE.Direct Communication Port — Allows for wired data display options via ColorControl GX or other GX devices, or wireless monitoring with an optional VE.Direct Bluetooth Smart dongle. |
TECHNICAL SPECIFICATIONS
| Parameter | Value |
|---|---|
| Battery Voltage | 12 / 24 / 48V Auto Select (36V via software) |
| Rated Charge Current | 35A |
| Nominal PV Power (12V) | 500W |
| Nominal PV Power (24V) | 1000W |
| Nominal PV Power (36V) | 1500W |
| Nominal PV Power (48V) | 2000W |
| Max. PV Short Circuit Current | 35A |
| Max. PV Open Circuit Voltage | 150V (absolute max), 145V (start-up/operating max) |
| Maximum Efficiency | >98% |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm |
| Weight | 1.25 kg |
CHARGING & BATTERY MODES
The Victron BlueSolar MPPT 150/35 offers sophisticated charging capabilities to ensure optimal battery health and longevity.
| Mode/Feature | Description |
|---|---|
| Adaptive 3-Stage Charging | Ensures batteries are charged effectively through Bulk, Absorption, and Float stages, adapting to battery condition. |
| Flexible Algorithm | Supports a wide range of battery types with eight pre-programmed settings and full programmability via software. |
| Temperature Compensation | Internal sensor adjusts charge voltages based on ambient temperature, preventing over or under-charging. |
TYPICAL APPLICATIONS
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Efficiently charges batteries for remote homes, cabins, and standalone power setups. |
| RVs, Caravans & Marine | Provides reliable power management for leisure vehicles and boats, ensuring battery longevity. |
| Small Commercial Installations | Suitable for small business premises requiring independent or backup solar power. |
BUILT-IN PROTECTION FUNCTIONS
The Victron BlueSolar MPPT 150/35 incorporates extensive electronic protection features to safeguard your system: Over-temperature protection and power derating when temperature is high • PV short circuit protection • PV reverse polarity protection • PV reverse current protection.
COMMON QUESTIONS
What is MPPT and why is it important?
MPPT stands for Maximum Power Point Tracking. It's an electronic tracking system that finds the optimal voltage and current at which solar panels can produce maximum power. This is crucial because solar panel output varies with temperature and sunlight intensity. An MPPT controller, like the BlueSolar 150/35, can improve energy harvest by up to 30% compared to older PWM controllers, especially in cloudy or low-light conditions.
Can I monitor this charge controller remotely?
Yes, the BlueSolar MPPT 150/35 features a VE.Direct communication port. For wired monitoring, it can connect to Victron's ColorControl GX or other GX devices. For wireless monitoring via a smartphone or other Bluetooth-enabled device, a separate VE.Direct Bluetooth Smart dongle is required.
What battery types are compatible?
The Victron BlueSolar MPPT 150/35 is compatible with a wide range of battery types, including Lead-Acid (Flooded, GEL, AGM) and Lithium-ion. Its flexible charge algorithm can be configured to suit specific battery requirements, with eight pre-programmed options and full programmability.
Is this model suitable for 36V battery systems?
While the controller automatically detects 12V, 24V, and 48V systems, 36V battery systems can be supported by selecting the appropriate setting via Victron's software tool.
INSTALLATION NOTES
- Installation should be carried out by a qualified professional to ensure safety and compliance with local electrical regulations.
- Mount the charge controller vertically on a non-flammable surface, ensuring adequate clearance (at least 10cm above and below) for optimal cooling.
- Position the controller within 3 metres of the battery, but never directly above it, to prevent damage from battery gassing.
- Ensure correct wiring polarity for both the PV array and battery connections to prevent damage to the unit and connected components.
- Use appropriate fuse protection for the battery supply as specified in the product manual (e.g., 40A-45A fuse for the MPPT 150/35).
BEFORE YOU BUY
- Verify your battery bank voltage (12V, 24V, or 48V) to ensure compatibility.
- Confirm your total PV array power and open circuit voltage (Voc) are within the controller's limits (max 150V Voc).
- Consider if remote monitoring is required; a VE.Direct Bluetooth Smart dongle is needed for wireless connectivity.
- Review the product manual for detailed installation instructions and safety guidelines.
Always consult the official Victron Energy documentation for the most accurate and up-to-date specifications and installation guidance. This product comes with a 5-year manufacturer's warranty.
