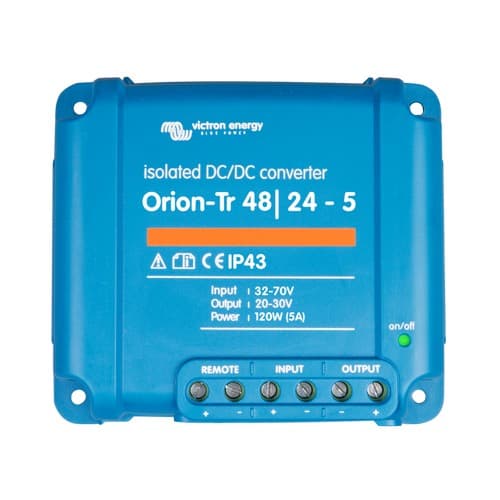

Victron Energy Orion-Tr Isolated 48V to 24V 5A 120W DC-DC Converter
£39.49
Sale price
£39.49
Regular price
Skip to product information
Victron Energy Orion-Tr Isolated 48V to 24V 5A 120W DC-DC Converter
£39.49
Sale price
£39.49
Regular price
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Victron Energy Orion-Tr Isolated 48V to 24V 5A 120W DC-DC Converter — a professional-grade isolated power converter engineered for reliable, noise-free voltage conversion in off-grid, marine, and mobile applications.
Key Features
- Galvanic Isolation: Provides 200VDC isolation between input, output, and case, eliminating ground loops and protecting sensitive equipment.
- Remote On/Off Control: Eliminates the need for a high-current input switch, operable via a low-power switch or engine run/stop signal.
- Adjustable Output Voltage: Output is fully adjustable between 20–30V to fine-tune system voltage without additional components.
- Parallel Operation: An unlimited number of units can be connected in parallel to scale output current as system demands grow.
- Short Circuit Proof: Built-in short circuit and high temperature protection ensures safe, uninterrupted operation in demanding environments.
The Orion-Tr 48/24-5 is purpose-built for systems requiring clean, stable 24V power from a 48V battery bank. With 120W continuous output at 25°C and up to 86% efficiency, it delivers consistent, dependable performance across a wide range of real-world operating conditions.
Installation is straightforward thanks to tool-free screw terminals accepting cable up to 6mm² (AWG10) and an IP43-rated enclosure when mounted with terminals facing downward. The ultra-compact form factor at 100 x 113 x 47mm makes it ideal for space-constrained electrical compartments on vehicles, vessels, and off-grid systems.
Compliant with EN 60950, EN 61000-6-3, EN 55014-1, and Automotive Directive ECE R10-5, the Orion-Tr meets stringent safety, emission, and immunity standards. This converter is not intended for battery charging — for charging applications, the Orion-Tr Smart is recommended.
Technical Specifications
| Specification | Orion-Tr 48/24-5 (120W) |
|---|---|
| Input Voltage Range | 32–70V |
| Under Voltage Shutdown | 28V |
| Under Voltage Restart | 30V |
| Nominal Output Voltage | 24.2V |
| Output Voltage Adjust Range | 20–30V |
| Output Voltage Tolerance | ±0.2V |
| Output Noise | 2mV rms |
| Continuous Output Current (25°C) | 5A |
| Maximum Output Current (10s) | 6.3A |
| Short Circuit Output Current | 25A |
| Continuous Output Power (25°C) | 120W |
| Continuous Output Power (40°C) | 100W |
| Efficiency | 86% |
| No Load Input Current | < 60mA |
| Galvanic Isolation | 200VDC (Input, Output & Case) |
| Operating Temperature | -20°C to +55°C (Derate 3%/°C above 40°C) |
| Operating Humidity | Max. 95% Non-Condensing |
| DC Connection | Screw Terminals |
| Maximum Cable Cross-Section | 6mm² (AWG10) |
| Dimensions (H x W x D) | 100 x 113 x 47mm (4.0 x 4.5 x 1.9 inch) |
| Weight | 1 lb (0.42 kg) |
| Standards | EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, ECE R10-5 |
