Part Number C1024

PD1530 Visions Patio Door Handle. Handle ONLY. Other parts like keeper, mortise lock box sold separately see accessories items for all associated known parts.

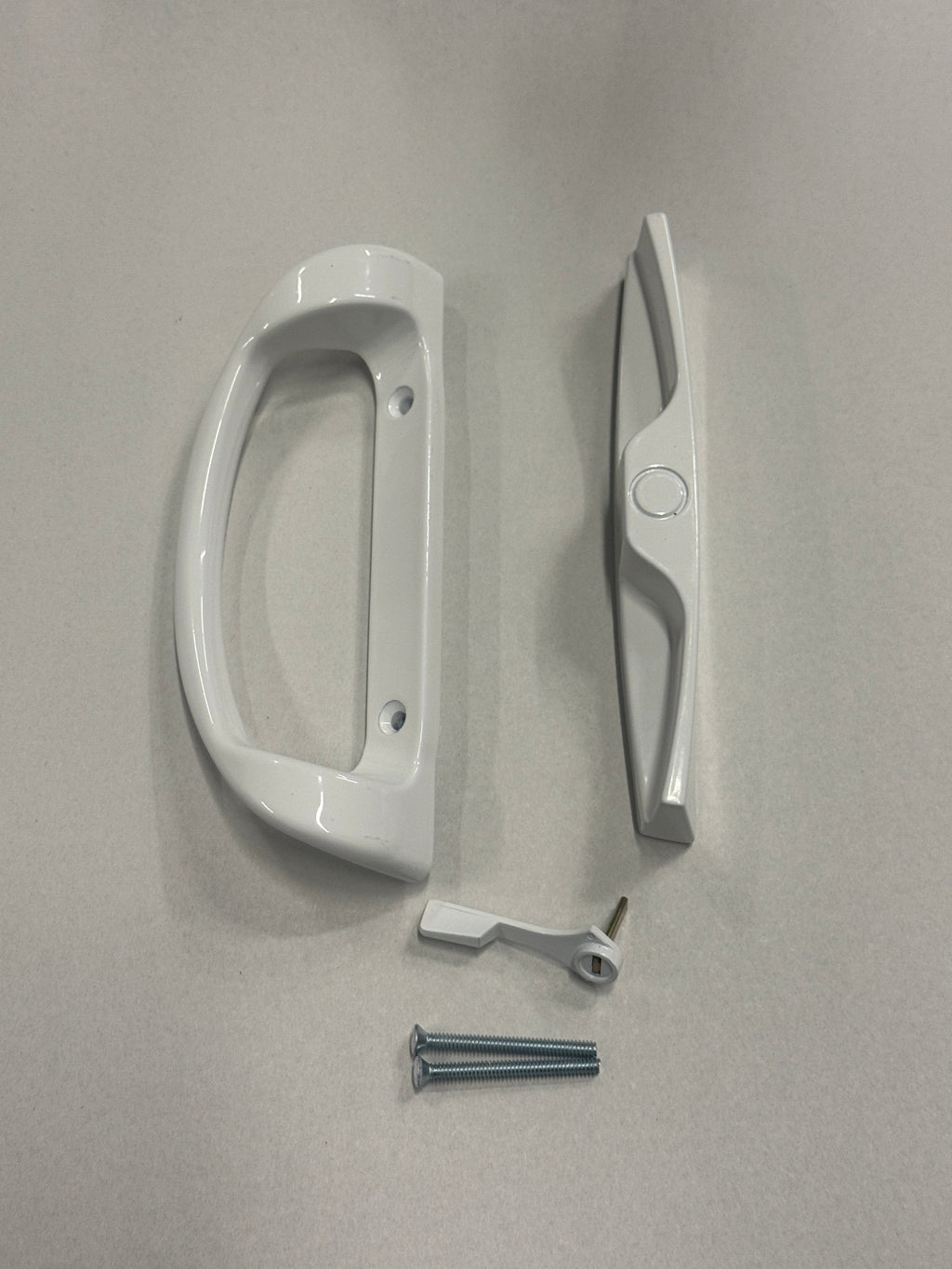

Handle Set Comes With:

• Exterior Handle
• Interior Handle
• toggle latch
• 2 mounting screws

  You have the option to order for this handle set. Non-keyed or Keyed (Keyed version is shown in picture and is not a stock item and will be special order item no returns or exchanges).

  Handle Sets can be handed for either style door XO or OX operation - Handle set is reversible to use on both handing's based on where you place the lock latch.

  Non Keyed Comes with the following: 1 Handle set (inside and out handle), all handle mounting screws needed, thumb latch. (all other parts are sold separately see below)

  Keyed Kit Comes with the following: 1 Handle set (inside and outside handle) with hole for cylinder, all handle mounting screws needed. thumb latch, 1 keyed cylinder, and 2 keys. (Keyed version is shown in picture and is a non-stocked, special order item with no returns or exchanges). (all other parts are sold separately see below)

  Handing: Handle set is reversible to use on both handing's by where you place the lock latch.

  Colors: White, Almond, Clay and White Int / Black Ext.

Style: old style has been discontinued. The current version is the direct replacement. Once our old style stock runs out the current version will be shipped automatically. see video for more details.

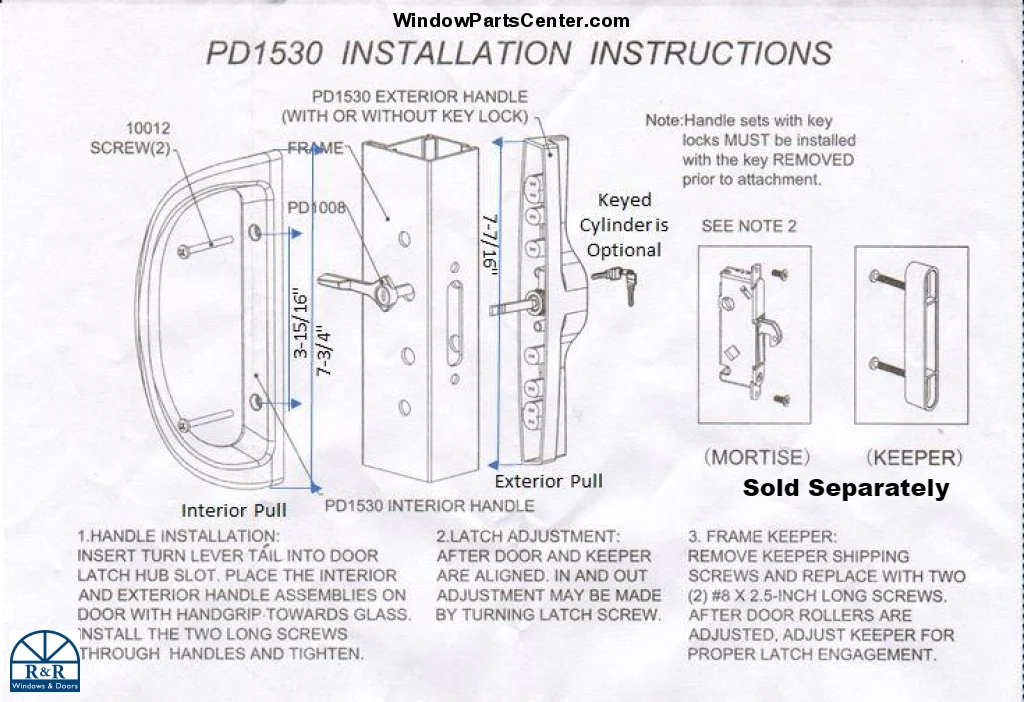

Install: see installation instructions pictured or video at time stamp time 1:45

Known Part number on interior handle stamped on back side: PD1530, PD1530-04, PD1430-01 (the -01 etc. refers to the cast mold number to make the handle set part number is the PD1530)

Known Brands: Winpro and Cascade Sliding Patio Door, Rehau sliding patio doors, PD, Visions hardware

Associated parts Sold Separately

Standard Mortise lock C1033

Standard Keeper C1058

Replacement keyed Cylinder see part number C3036

Replacement Upgrade Dual Action Mortise Lock Part Number C1035

Replacement Upgrade Amesbury Truth PD GEMINI KEEPER 2-3 panel(DUAL MORTISE) Part Number C1059
