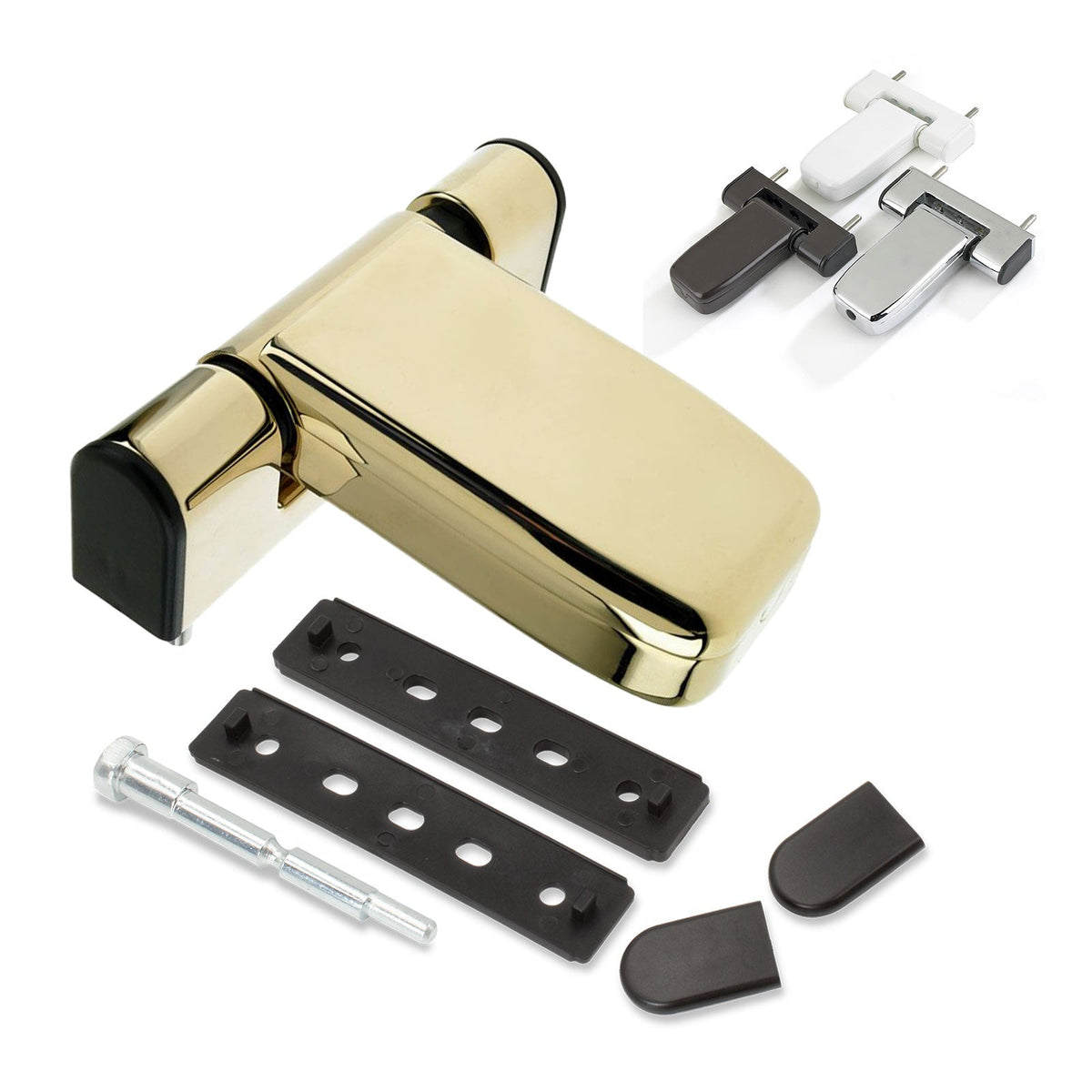

Yale 3D Flag Hinge for uPVC Doors

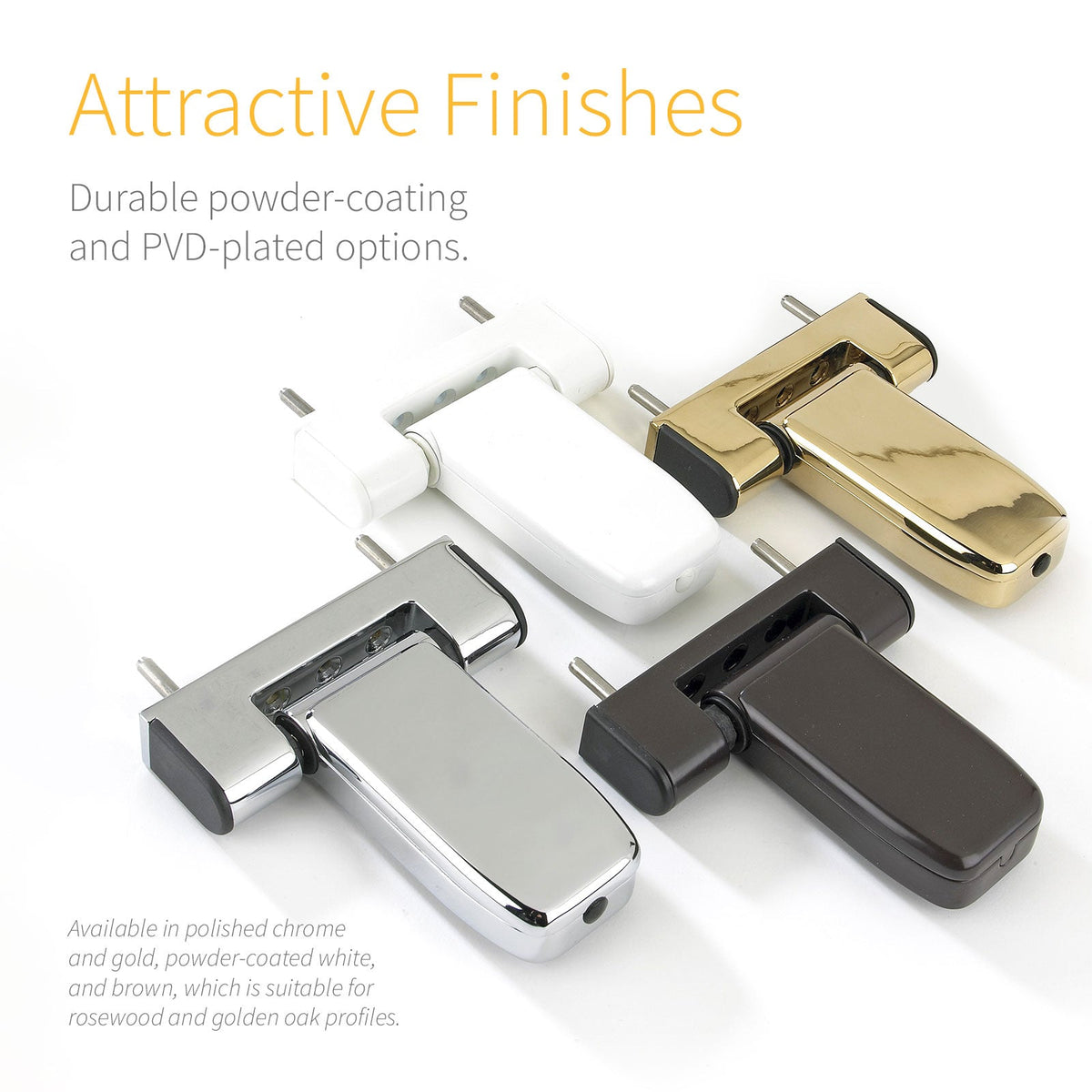

(Choice of colour and finish)

Covered by lifetime security guarantee!

Combines mechanical strength with striking aesthetics, and colour finishes to compliment any door. Highly adjustable and suitable for most uPVC door profiles.

Manufactured by Yale, the world’s most trusted lock brand, this PAS 24 approved hinge is offered with mechanical, surface and security guarantees, so you can buy with confidence.

Features & Benefits

• Full 3-way adjustment - lateral, vertical and compression
• Captive flag hinge - no droop as associated with traditional flag hinges

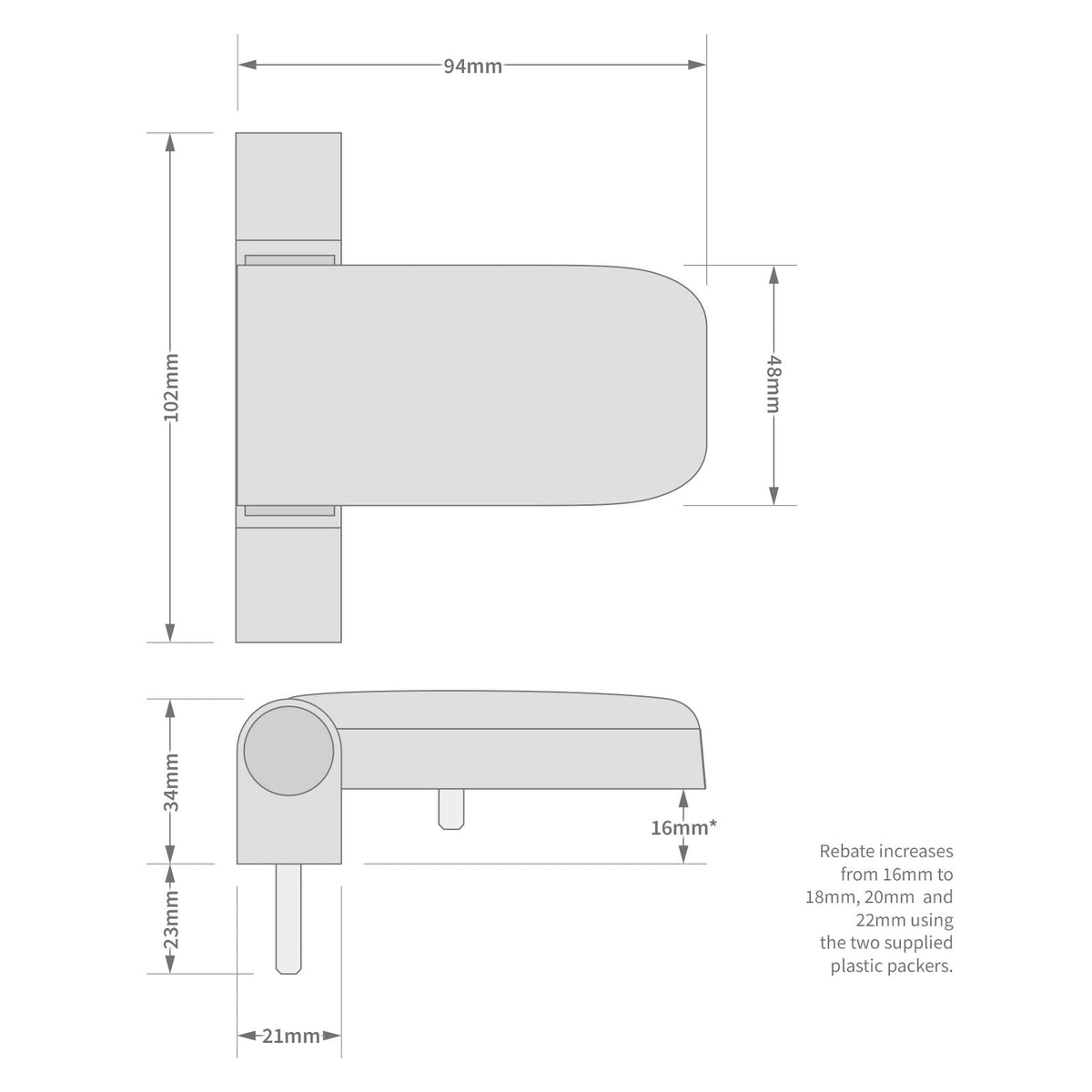

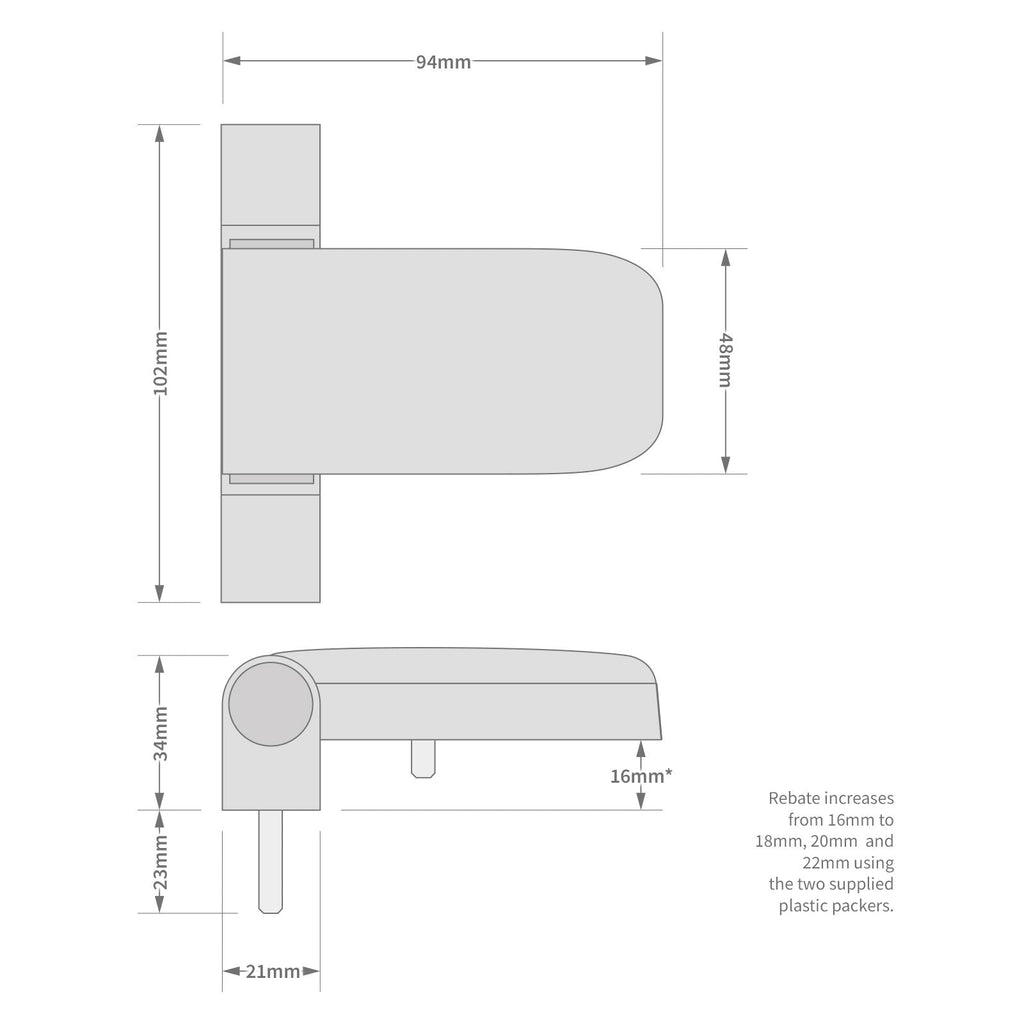

• Suits most uPVC profiles - fits rebates from 16mm to 22mm
• Highly secure fitting - security cover plate and PAS 24 compliant
• Heavy duty weight carrying - 100Kg per hinge capacity
• Easy insitu adjustment - allows correction to fitted door
• Lifetime security guarantee - the Yale product confidence

The Yale 3D Flag Hinge is the typical T-shaped type used on the majority of uPVC doors, but this hinge can be adjusted in all three dimensions whilst in position. The exceptional design of this hinge allows full side to side, up and down, plus in and out adjustment.

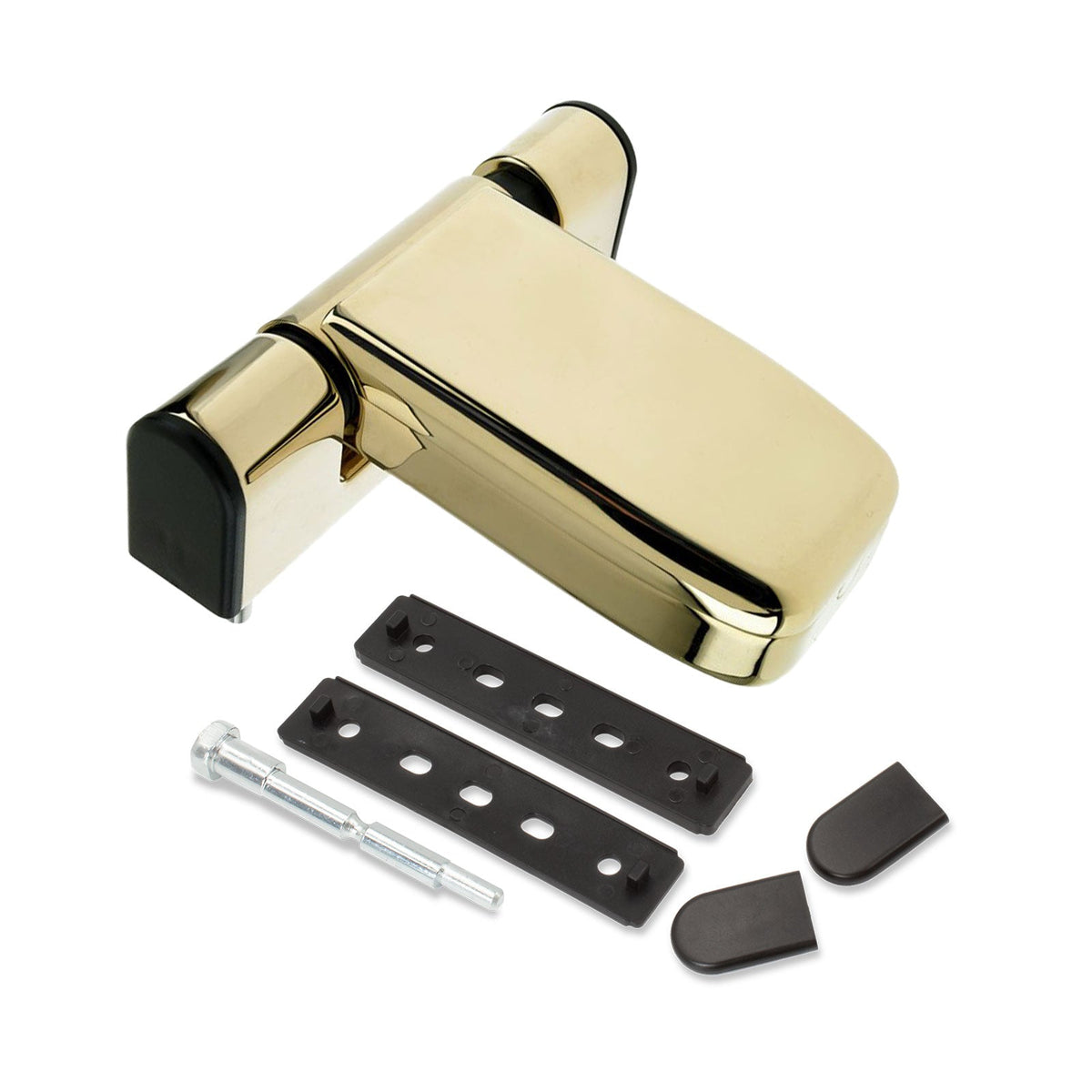

DID YOU KNOW? This uPVC door flag hinge, previously known as Yale Paddock Neon, is supplied with packers, which allows this single hinge to be used with 16mm, 18mm, 20mm, and 22mm rebates.
