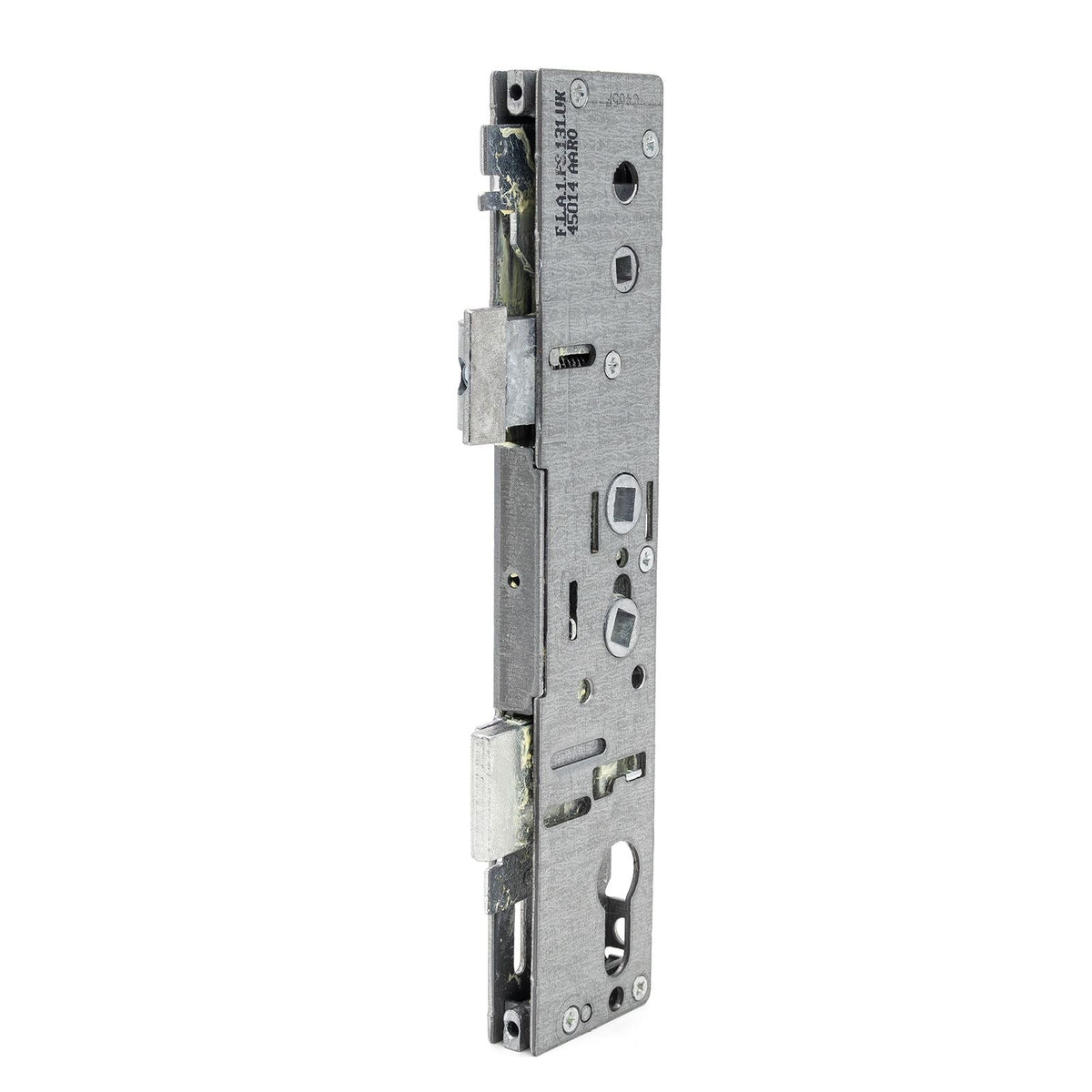

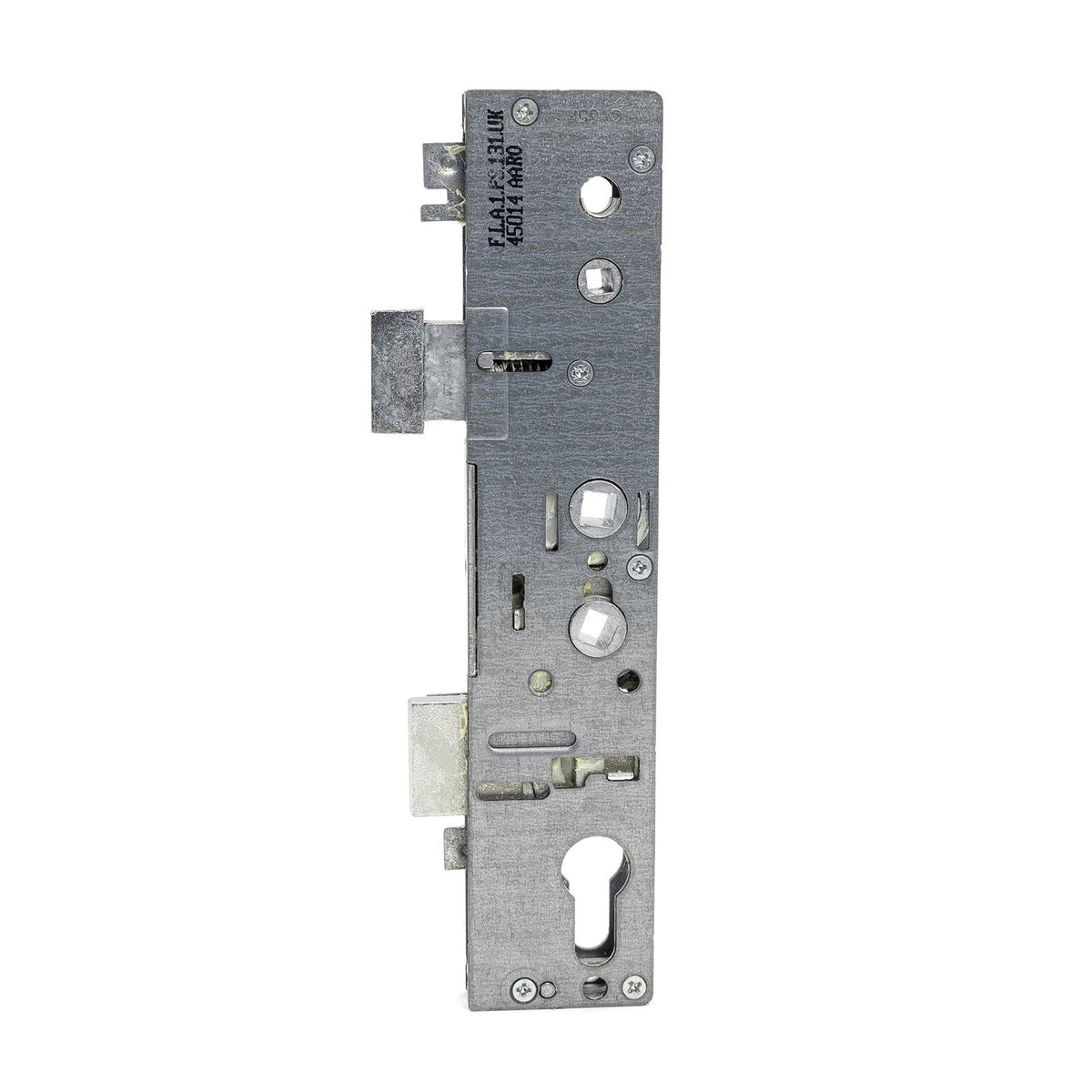

Yale Lockmaster (Paddock PAD99945U) Dual-Spindle 45mm Gearbox

(Unsprung latch and deadbolt)

Fits to existing spacing plate!

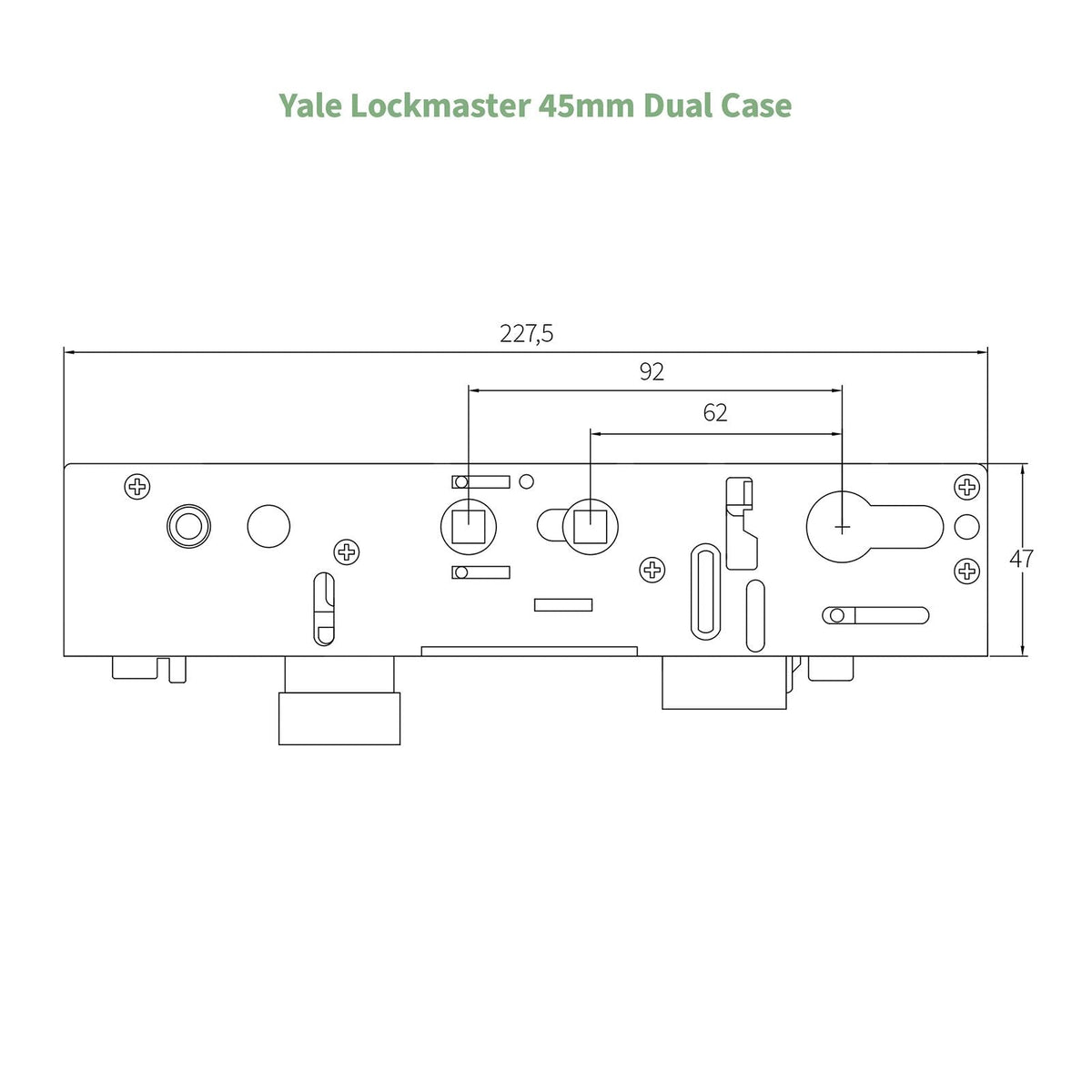

Dual-spindle, 45mm backset, with unsprung latch and deadbolt, for offset 92/62PZ lever/pad handles. British-built replacement multipoint lock gearbox for Yale Lockmaster, Mila Master and more. Features a reversible latch for use on left and right-handed doors.

Requires a 10mm spacing plate to offset the gearbox to the correct position. The spacing plate is not included with this gearbox, so you can re-use an existing spacer to reduce cost. Available separately with the spacing plate included, and the spacing plate can be bought on it's own.

Features & Benefits

• Fits quickly and easily - just removal of a few screws
• Suits left or right doors - latch can be easily reversed
• Spacing plate included - achieves full 45mm backset
• Stainless steel construction - strong and highly durable
• Fits lever/pad handles - offset 92/62PZ centres
• Popular gearbox size - 92PZ with 45mm backset
• Saves time and money - no need to replace mechanism
• Corrosion resistant - long-lasting performance
• 10-year mechanical guarantee - peace of mind

Faulty gearboxes are the most likely cause of a broken multipoint lock, and replacing them is both cost-effective, and efficient, as it saves the complication and expanse of replacing the whole mechanism.

Did you know? Paddock gearboxes were chosen by numerous multipoint lock manufacturers, including Yale. Since the Paddock company was dissolved, Yale has been manufacturing and marketing their gearboxes under the Yale Lockmaster brand.

How to choose the right gearbox

You should choose a centre case that works with your handle spindle type, and with a matching backset size. Backset size is the measurement from the centre of the spindle/euro cylinder hole to the front of the edge of the door faceplate that the centre case sits behind. Spindle type refers to the spindle[s] of the handles that will engage with the centre case. Spindle options include, single, and dual for offset handles.

Not suitable as a replacement for the Lockmaster 21 centre case gearbox.
